How to choose an optical detector

Which fiber optic power meter detector do I need?

It is important to correctly match the power meter detector type to the application
The correct detector for loss and power measurements on fiber optic communications systems will generally be as follows:

InGaAs (Indium Gallium Arsenide)

  • Precision measurement over 850 - 1650 nm.
  • CWDM or DWDM bands up to the maximum meter range.
  • Typically very wavelength sensitive at 850 nm

Si (Silicon)

  • Precision measurement at 600 - 980 nm.
  • Low cost and large size make it ideal for POF, HCS, MPO and other ribbon fiber testing up to 980 nm.
  • It won't work for e.g. 1300 nm and longer.

H series / high power (attenuated InGaAs)

  • High power measurements.
  • These detectors are more expensive and have lower accuracy than normal InGaAs detectors, so only specify them if expecting to measure beyond the range of a non-attenuated detector.
  • The peak or pulsed signal power must be within the meter range.
  • High power meters have less AutoTest sensitivity, which is a consideration for loss testing.
  • The KI2600-H5 or H3B offers the best balance for most high-power users, with up to +24 dBm range & reasonable Autotest sensitivity
  • The KI2600-H6 offers the highest power level of +33 dBm. For single mode fiber applications only.

XL series / large area

  • For multi-fiber connectors such as MPO, MMC, or POF and other fibers above 200u active fiber core diameter.
  • HCS is 200u core diameter, so a standard meter is just OK for HCS installers. A large area Si5 detector will ensure laboratory grade results.
  • Select from Si5, Ge5, Ge7 or InGaAs5 using the above guidelines.
  • MPO connectors with 16 and 32 fibers require the larger Ge7 detector, which also works with other MPO fiber counts.
  • Large area InGaAs detectors are very expensive and are typically used in laboratory applications. For typical fiber optic installation applications from e.g. 850 - 1550 nm, a Ge detector is adequate.

What power level is the system?

Maximum system power level expectations

  • The large majority of Telco digital transmission systems have maximum power levels below +5 dBm.
  • The large majority of LAN transmission systems have maximum power levels below 0 dBm.
  • Specialist systems, typically RF or analogue, without an optical amplifier, have maximum power levels below +15 dBm.
  • Long distance systems with an optical power amplifier have maximum (fault) power levels below +23 dBm.
  • On installed single mode systems with standard polished-fiber connectors (SC / LC / FC etc.), total long-term system (fault) power per fiber cannot go above +23 dBm per fiber, owing to connector power density limitations. In fact, for routine operations, +18 dBm is regarded as a maximum, above which special operational precautions are needed to avoid catastrophic connector / system failure.
  • For systems operating above +18 dBm, typically either no connector, or expanded beam connectors are used, due to the extreme power density. Anything above +23 dBm tends to be a "non-installed" R&D system. R&D bench customers report using up to +33 dBm temporarily, on single mode fiber systems.

Minimum system power level expectations

  • It's rare to encounter system power levels below -35 dBm.
  • Use of a fiber amplifier pre-amp can extend recover sensitivity down to between -40 to -45 dBm.
  • Use of a power meter on a cabling system below about -45 dBm is problematic, due to the possibility of stray sunlight leaking into exposed cabling.

Useful graphs

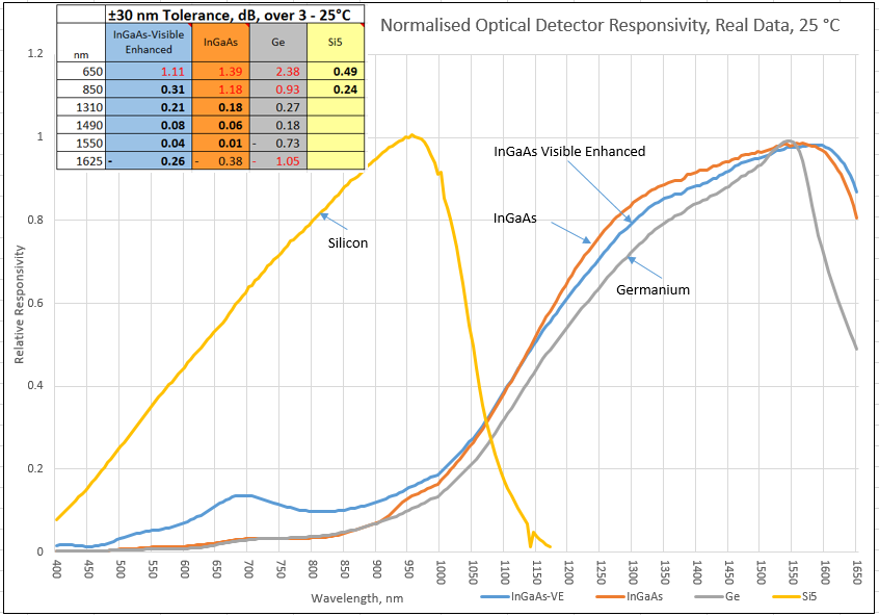

Power meter responsivity wavelength dependence



Ge vs InGaAs responsivity @ long wavelengths

Ge and InGaAs detector responsivity from 1500 - 1650 nm

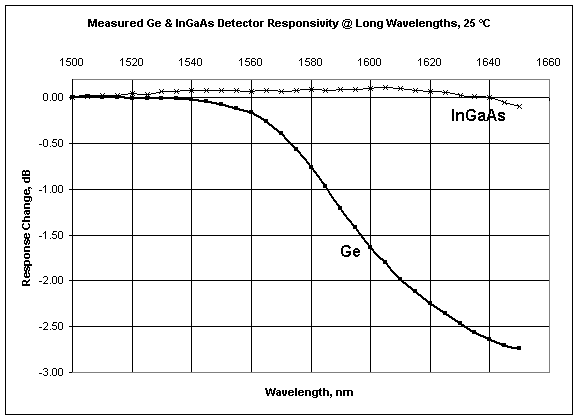

  • The above graph shows the room temperature response of power meters with Ge & InGaAs detectors as the wavelength is changed beyond 1500 nm.
  • The Ge meter is unsuitable for work on CWDM and DWDM systems above 1550 nm, the InGaAs meter is obviously a much better choice, since it is very stable. This graph uses real measurement data.

Ge response drift at over temperature @ 1580 nm

Ge detector effect of temperature on responsivity at 1580 nm

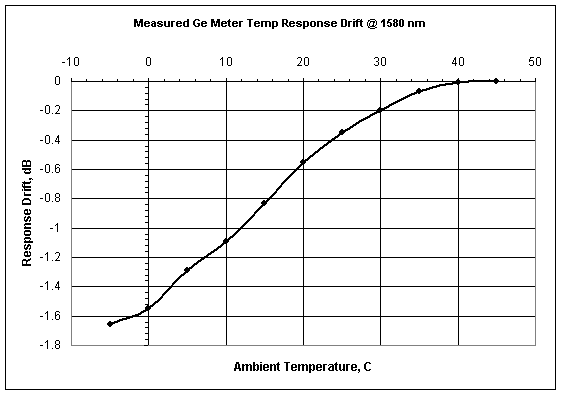

  • The above graph shows how the 1580 nm thermal response of a power meter with a Ge detector changes with temperature.
  • This instability makes Ge power meters basically unsuitable for field work on CWDM and DWDM systems above 1550 nm.
  • The thermal stability below 1550 nm is much better, around 0.2 dB, however it's never as good as InGaAs. This graph uses real measurement data.
