Ultra-Stable 2W Loss Length ORL Tester KI23427OLF-InGaAs-APC
A Two-Way Optical Loss Test set (OLTS) that's perfect for ultra high fiber count Tier 1 loss, length and optical return loss testing applications on single mode fiber with an APC connector at triple 1310 / 1490 / 1550 nm. A pair of these compact instruments set new standards of productivity, accuracy and ease of use. The 650 nm VFL operates to give positive visual identification of a fiber to be connected for loss testing.
Each SM fiber needs just one test hook-up and one key press for a complete 2W / bidirectional loss length & ORL test, and the same test method can be used for all fibers in a network, eliminating administration, training and test errors. Testing is accurate and can take only 5 seconds, direct onto a final standards compliant certification report.
A pair of instruments both display length & bi-directional loss, & ORL each end, in real time, with no need to specify master/slave instruments. A single instrument can also be used as a stand-alone ultra-stable light source & power meter, or tone generator / detector.
- 25% of the size / weight, 7x the battery life of competitors
- Bidirectional Autotest loss testing on one fiber
- Real time Pass / Fail display
- KITS™ reporting software
- Autotest power meter
- 1 % power accuracy & 31 calibrated λ, ISO 17025 traceable
- Full QA & test reports for source stability / λ, & power meter linearity
- EF compliant multimode sources
Zero warm-up laser (KI2300, KI2400, KI23400 only)
Instant high-accuracy testing. Unlike other sources, Zero Warm-Up sources are in-spec & stabilized in seconds.
Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.
Smart communication makes sure you always get a full, complete, and consistent test result.
Real-time reporting software
Excel-based instrument connectivity for comprehensive reporting (against standards) and real-time data logging.
ILAC/NATA ISO 17025 optical calibration
Internationally recognised traceable optical calibration to ISO17025
Genuine 3 year calibration validity
Genuine 3 Year optical power meter re-calibration validity
Total uncertainty specification
Our unique specifications cover accuracy in real world use - over all power levels, temperatures, connector and fiber types.
Multimode test standard compliance
Kingfisher LED sources meet Encircled Flux and CPR requirements straight out of the box.
To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
Integrates a VFL into AutoTest, so the fiber end you need to test flashes red. Confidence with a quick & easy visual cue.
|Detector type (meter)||InGaAs|
|Response wavelength (meter)||600 ~ 1700 nm|
|Calibration wavelengths (meter)||780, 820, 850, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm|
|Power range (meter)||+10 ~ -60 dBm (780 ~ 980, 1590 ~ 1650 nm) / +10 ~ -70 dBm (1270 ~ 1650 nm)|
|Mid-range linearity (meter)||0.04 dB (typical)|
|Total uncertainty (meter)||0.3 dB (max)|
|ID tone detection & Autotest sensitivity (meter)||Up to -50 dBm|
|Modulated output (source)||270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tone|
|Output wavelength (source)||1310, 1490, 1550 nm Laser APC, VisiTester APC|
|Output power (source)||-7 dBm ±1 dB @ SMF|
|Adjust output power (source)||Adjustable over 7 dB in 0.01 dB steps|
|Short term stability for 15 min, typical ±2 °C, after warm up, ORL < -25 dB (source)||0.03 dB (for 1310, 1550 nm), 0.04 dB (for 1490 nm)|
|Stability over temperature (source)||0.2 dB (max)|
|Wavelength drift (source)||0.4 nm per °C (typical for 1310, 1550 nm), 0.1 nm per °C (typical for 1490 nm)|
|Wavelength initial tolerance @ 25 °C (source)||20 nm for 1310, 1550 nm, 6.5 for 1490 nm|
|Spectrum width @ FWHM (source)||3 nm (typical for 1310, 1550 nm), < 1 nm (typical for 1490 nm)|
|Reconnection repeatability @ 95% confidence (source)||0.1 dB|
|Length range (2-way Autotest only)||27 dB|
|Length accuracy (2-way Autotest only)||1% ± 9 meters|
|Length resolutions||1 meter (0.000~9.999 Km), 10 meters (10.00~99.99 Km), 100 meters (100.0~999.9 Km)|
|Loss range (2-way Autotest)||44 dB|
|Loss repeatability & loss linearity (2-way Autotest)||0.04 dB|
|Loss range (1-way Autotest)||44 dB|
|Loss repeatability & loss linearity (1-way Autotest)||0.04 dB|
|ORL range||0 ~ 60 dB|
|ORL port isolation||> 30 dB|
|ORL accuracy||0.5 dB (@ 0 ~ 45 dB), 1 dB (@ 45 ~ 60 dB after zero offset)|
|ORL resolution||0.01 dB (@ 0 ~ 45 dB), 0.1 dB (@ 45 ~ 60 dB)|
|VFL wavelength||650 ± 5 nm|
|VFL power||0 dBm ± 1 dB @ SMF|
|VFL laser safety||Class 1, IEC60825-2|
|VFL blink rate (manual)||CW or 2 Hz|
General KI 23400 & 27400 Handheld Two-Way Loss / Length / ORL Test Set specifications
|Accuracy (meter)||1 % (0.06 dB)|
|Calibration validity (ISO17025)||3 years|
|Resolution (meter)||0.01 dB|
|Polarization sensitivity (meter)||< 0.05 dB (typical)|
|Autotest||1-way: compatible with other KI23400 & KI27400 models / 2-way: compatible with identical model only|
|Tone detection (meter)||150 ~ 9999 Hz ± 1 %|
|USB interfaces||USB-micro for power & software / USB-A for memory key|
|Software||KITS (free download)|
|Power||Battery / External power via USB|
|Battery life||Laser/LED source: 80 hours (typical) in Autotest, Power Meter: 1000 hours (typical)|
|Battery type||2x AA (LR6) Alkaline / 2x AA NiMH AA (rechargeable via USB)|
|Display||74 mm x 55 mm high contrast LCD|
|Case||Polycarbonate (body) / rubber (edges & corners), moisture resistance, 1-meter drop tested|
|Memory||For 8,000 fibers / Unlimited on USB|
|Size||190 mm x 105 mm x 35 mm|
|Unit weight||0.42 kg|
|Shipping weight||1.5 Kg|
|Operating / storage temperature||-15 to 55 °C / -25 to 70 °C|
|Relative humidity||0 ~ 95 %|
In the box

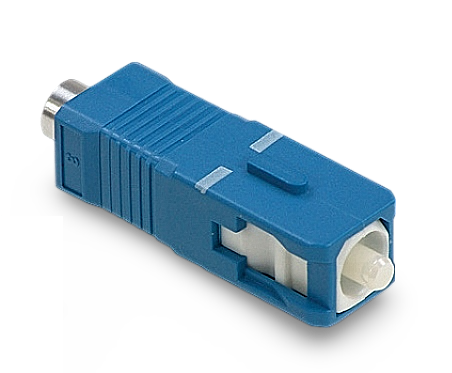

Low Reflection Terminator, SC/PC OPT703

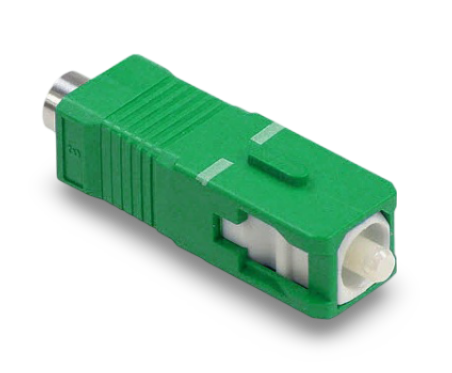

Low Reflection Terminator, SC/APC OPT704
SC Through Connector OPT046
Canvas Pouch for KI2000 Series Instruments OPT149
USB Cable (Micro)
Instrument User Manual
Quality Assurance Certificate
Calibration Certificate ILAC/NATA Compliant
Hybrid FC Connector Adaptor OPT051
Hybrid Universal 2.5 mm Connector Adaptor OPT081
Hybrid Universal 1.25 mm Connector Adaptor OPT084
Hybrid Universal 1.25 mm Connector Adaptor OPT085
Hybrid LC / F3000 Connector Adaptor OPT072
Hybrid POF Multi-Connector Adaptor OPT077
Hybrid HFBR Connector Adaptor OPT078
Hybrid SMA Connector Adaptor OPT082
Semi-Rigid Carry Case for Test Kits OPT154B
Semi-Rigid Carry Case for Test Kits OPT153-CASE
