Video Inspection Scope Adapter Series

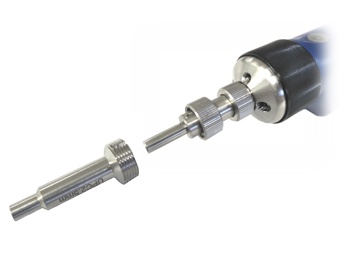

Adaptors for Kingfisher KI 6680 & Autoget Wi-Fi video microscopes

  • For Fiber Video Inspection Probes, KI6680 and Dimension AutoGet Wi-Fi.
  • Instrument supplied with 5 adapters in a handy dustproof case, which also fits 3 more adapters.
  • The 5 suppled adapters are for male & bulkhead-assembled female: SC/PC, LC/PC, FC/PC. Can also inspect the male tip on other connectors with 2.5 mm/PC ferrules, or 1.25 mm/PC ferrules.
  • Works with duplex connectors.

More interchangeable connector styles

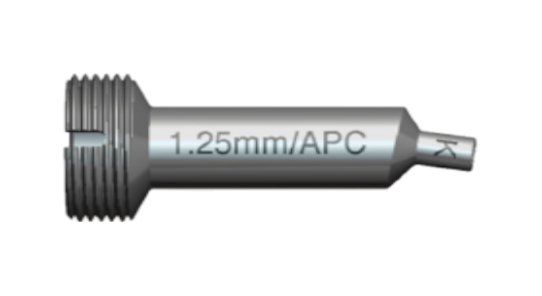

OPT630A

1.25 mm APC Male Connector Adapter, Video Scope OPT630A

For LC/APC male connectors and other 1.25mm ferrule & APC polish tip

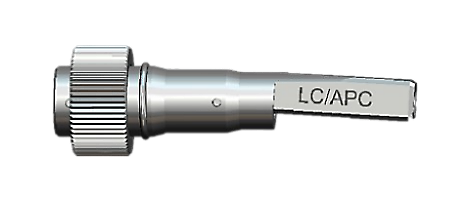

OPT632A

LC APC Female Connecter Adapter, Video Probe OPT632A

For inside an LC bulkhead female adapter, to inspect an LC/APC polish tip.

OPT631A

2.5 mm APC Male Connector Adapter, Video Scope OPT631A

For SC/APC, FC/APC, E2000/APC, ST/APC, LSA/APC male connectors, and other 2.5 mm ferrule & APC polish tip

OPT633A

SC APC Female Connector Adapter, Video Scope OPT633A

For inside an SC bulkhead female adapter to inspect an SC/APC polish tip

OPT634A

FC APC Female Connector Adapter, Video Scope OPT634A

For inside an FC bulkhead female adapter, to inspect an FC/APC polish tip

OPT635

MPO PC/APC Connector Adapter, Video Scope OPT635

For MPO & MPO-APC for KI6680. To inspect both a male connector tip, and to fit inside a female bulkhead adapter.

OPT636

MPO PC/APC Connector Adapter, Video Scope OPT636

For MPO & MPO-APC connectors and Dimension AutoGet Wi-Fi, to do auto pass/fail analysis. To inspect both a male connector tip, and to fit inside a female bulkhead adapter.

OPT639

Optitap Connector Adapter for Video Scope OPT639

For Optitap with SC/APC connector

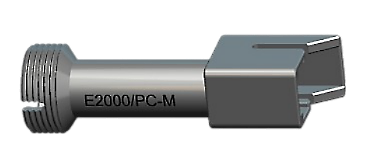

OPT640

E2000 Male Connector Adapter, Video Scope OPT640

For E2000 Male connector

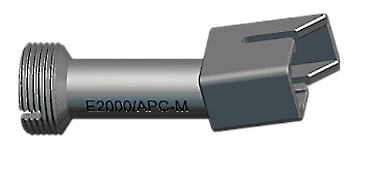

OPT641

E2000 Male APC Connector Adapter, Video Scope OPT641

For E2000 Male APC connector

OPT642

E2000 Female Connector Adapter, Video Scope OPT642

For E2000 Female connector

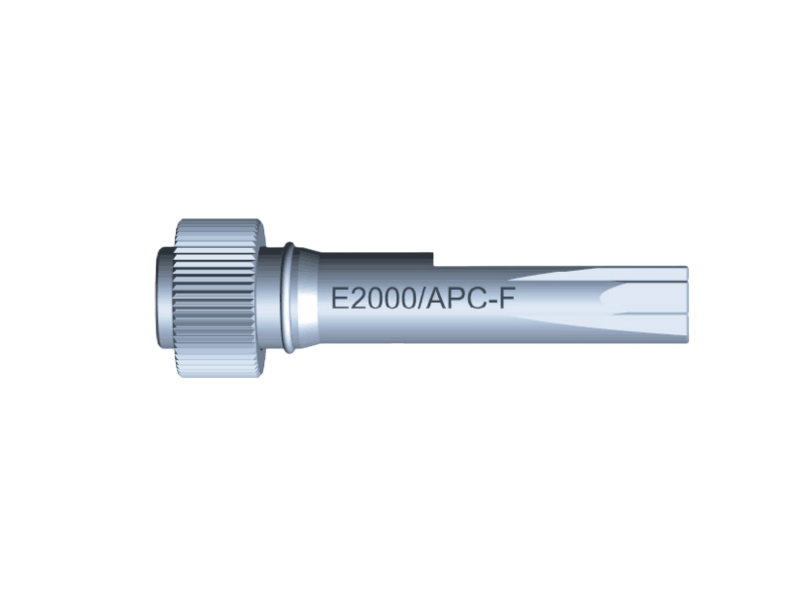

OPT643

E2000 Female APC Connector Adapter, Video Scope OPT643

For E2000 Female APC connector

OPT637

1.6 mm Male Connector Adapter, Video Scope OPT637

For 1.6 mm ferrule / terminus

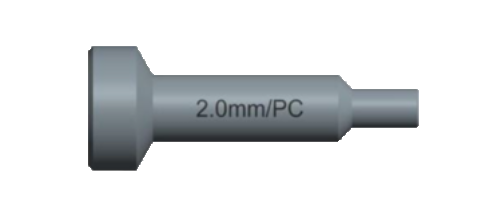

OPT638

2 mm Male Connector Adapter, Video Scope OPT638

For 2.0 mm ferrule / terminus
