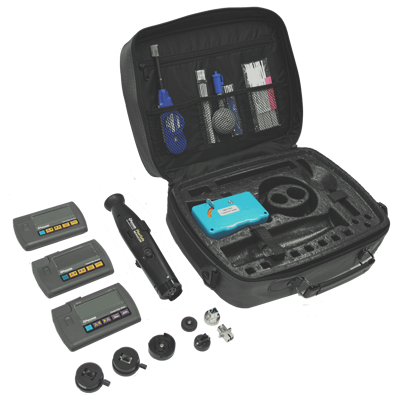

MPO Test, Inspect & Clean Kit SM MM, KI-TK035

Kit, Complete, MPO/MTP SM & MM 9000, Ge (not shippable to Iran)

MPO kit with source, meter, scope & cleaners. 1310/1550 & 850/1300 nm

In Stock
Price: USD $5929.21

A test inspect & cleaning kit, ideal for low to modest volume on MPO / MTP™, LC, SC and all fiber types. Inexpensive with good accuracy.

MPO test, inspection & cleaning applications

  • Optical loss on SM fiber at 1310 & 1550 nm, 40 dB range.
  • Optical loss on MM fiber at 850 & 1300 nm, 20 dB (@ 62.5um) range, EF compliant.
  • This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
  • Reporting software for cable loss (manual data entry).
  • Optical  continuity / tone checking, 12 fiber Multi-Fiber ID, 37 dB range.
  • Optical connector end-face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC, LC, MPO-PC & MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC/APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

A suitable MPO breakout cable is needed for this kit.
Alternative: Video microscope
Please enquire for 16/32 ribbon MPO

In the Box

Pocket Optical Power Meter KI 9600XL-Ge5

  • Simple shirt-pocket size power meter
  • Large area detector for MPO, POF testing
  • Ideal for transmission installers
More Info

FiberSafe Microscope KI6610

  • 200x microscope for inspection of SM, MM, and MPO networks
  • Best quality, image & eye safety
  • Wide range of interchangeable adaptors
More Info

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.

More Info

MPO 12 24 APC Connector Adapter for KI6610 Series Microscope. OPT678

MPO 12 x n style APC. Incorporates traversing knob

More Info

1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

More Info

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO endface cleaner for both mated and unmated connectors

More Info

Semi-Rigid Carry Case for Test Kits OPT155

  • Sturdy carry case made of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap.
  • Accommodates any three KI9000 instruments.
  • Comfortable to use
  • Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, documentation, instruments.
More Info

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)

More Info

Optional Accessories

OPT232

MT Ferrule Adapter - XL Power Meter, OPT232

MT ferrule can be pushed in or pulled out of the rubber insert

USD $266.71

In stock
Add to Cart
OPT690

x10 Microscope Eyepiece, OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

USD $27.15

In stock
Add to Cart
OPT712

OPT712

MPO OM3 cable breakout kit, useful for general testing applications.

USD $464.35

Add to Cart
OPT720-BKO-LC

OPT720-BKO-LC

SM MPO-LC Breakout Lead 12 fiber 2 m - No Pin

USD $220.44

Add to Cart
OPT720-BKO-LCAPC

OPT720-BKO-LCAPC

SM MPO-LC/APC Breakout Lead 12 fiber, 2 m - No Pin

USD $224.69

Add to Cart
OPT720-BKO-SC

OPT720-BKO-SC

SM MPO-SC Breakout Lead 12 fiber 2m -No Pin

USD $220.44

Add to Cart
OPT720-BKO-SCAPC

OPT720-BKO-SCAPC

SM MPO-SC/APC Breakout Lead 12 fiber, 2 m - No Pin

USD $224.69

Add to Cart
OPT720-PBKO-LCAPC

OPT720-PBKO-LCAPC

SM MPO-LC/APC Breakout Lead 12 fiber 2 m - Pinned

USD $226.80

Add to Cart
OPT720-PBKO-SC

OPT720-PBKO-SC

SM MPO-SC Breakout Lead 12 fiber 2 m - Pinned

USD $222.57

Add to Cart
OPT720-PBKO-SCAPC

OPT720-PBKO-SCAPC

SM MPO-SC/APC Breakout Lead 12 fiber, 2 m - Pinned

USD $226.80

Add to Cart
OPT800

OPT800

Option, MPO-12xn Through Adapter, useful accessory for MPO testing

USD $24.10

In stock
Add to Cart
OPT073

OPT073

Connector Thru, Ceramic Sleeve, LC, Blue

USD $4.36

In stock
Add to Cart
OPT074

OPT074

Connector Thru, Ceramic Sleeve, LC, Green

USD $4.38

In stock
Add to Cart
OPT075

OPT075

Connector Thru, Ceramic Sleeve, LC, Beige

USD $4.38

In stock
Add to Cart
