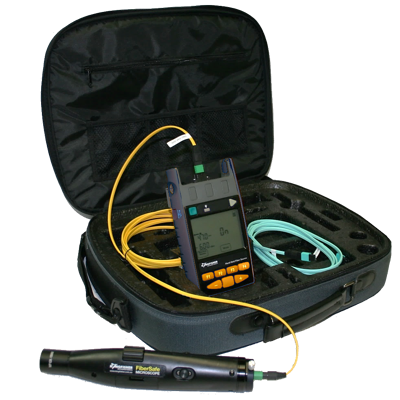

MPO Visual Cable Verifier Kit, 16 32 Fiber KI-TK832

MPO/MTP polarity, continuity & end-face checker 16, 32 fiber

MPO Verifier kit with colour-pattern source & scope, 16 & 32 fiber, SM MM.

MPO Connector End Face, Oblique Illumination, x40 MTP-12 Scope View, x40

Kingfisher's unique and innovate MPO Visual Cable Verifier Kit is a quick, versatile and inexpensive way to visually check MPO cable installations and patch leads for polarity and continuity, and overall end face condition. Just connect the source, and view the far end with the microscope to observe the repeating color pattern at the far end. Fiber 1 is easily identified with a winking light. The colour sequence indicates the connection type. While doing this, the user can also check if the overall connector end is clean. This method is inexpensive and easily scalable to any number of fibers (a 12 fiber connector is shown in the illustration). See Product Brochure for more detail. See Quick Reference Guide or Video for operation of this Kit.

Typical applications

Quick visual check of MPO patch leads for polarity, continuity, and overall end face condition.

  • Quickly verify the A, B, C, D status & end face of MPO patch leads.
  • Quickly verify polarity & continuity of installed MPO links, 1 Km range.
  • Quickly check & clean the entire connector end-face & pins.
  • A single solution for 16 & 32 fiber connectors.
  • Both SM & MM fiber.
  • Generally meets current regulations & best practice for eye safety.

Connector & battery summary

Source accepts MPO/MTP-16, -32 connectors, SM & MM.
Microscope accepts MPO/MTP-16, -32 connectors, SM & MM.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

Additional: Video camera

Alias: TK-832, KI832, KI-832, K1-832

In the Box

MPO 16 32 Connector Adapter for KI6610 Series Microscope. OPT674

MPO 16 x n style adaptor. Incorporates traversing knob.

More Info

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)

More Info

Carry Case-only for Test Kits OPT154B-CASE

Carry Case, KI2x / KI9x, case only

  • Highly cushioned and convenient carry case, sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap.
  • Space for any two KI2000 style instruments, VFL pen, microscope, batteries, adapters, manuals, test mandrels, power packs, leads and cleaning materials.
  • The semi-rigid case construction is comfortable to use, avoids damaging other objects, and it's compartment layout helps avoid leaving items on-site.
More Info

Quick Reference Guide QRG

Quick reference guide

More Info

Optional Accessories

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Connector Cleaner Replacement Tape TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

Entry Level Video Camera for Fibersafe Microscope OPT684

(Please call us to confirm availability before ordering)

x20 Microscope Eyepiece, OPT691

Optional eyepiece for KI6600 series microscope. Converts KI6608 to x80 magnification. 23.2 mm scope mounting diameter.
