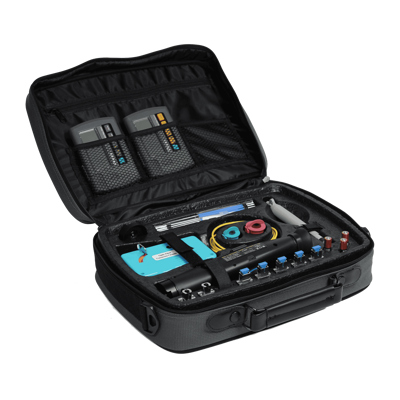

Clean Inspect Test Kit MM Simple KI-TK032

Kit, Complete, MM 9000

Multimode source, meter, scope & cleaning kit, 850/1300 nm, MM fiber.

A fiber optic testing, inspection and cleaning kit, great for low to modest test volume on multimode systems, some SM capability.

Typical test, inspection & cleaning applications

  • Optical power at 8 calibrated λ, -60 to +10 dBm range.
  • Optical loss on MM fiber 850 / 1300 nm, 40 dB range (@ 62.5um), EF compliant.
  • Optical loss on SM fiber at 1300 nm, 28 dB range.
  • Reporting software for cable loss (manual data entry).
  • Optical continuity / tone testing & 12 fiber Multi-Fiber ID, 40 dB range.
  • Optical connector end-face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC & LC interchangeable connector adaptors.
Meter accepts PC & APC polish. Source accepts PC polish.
Microscope accepts SC, LC & most 2.5 or 1.25mm PC ferrules. Also OK for occasional APC use.
Meter 2 x AAA alkaline. Run time >300 hours.
Source 2 x AAA alkaline. Run time >40 hours.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

Alternative: Video microscope

Alias: TK-032, KI032, KI-032, K1-032

In the Box

KI9812A

Fiber Optic LED Test Source KI9812A

  • Economical shirt-pocket size source
  • LED source for MM, POF testing
  • EF compliant
More Info
KI9600A-VE

Fiber Optic Power Meter Pocket-Size KI 9600A-VE

  • Simple shirt-pocket size power meter
  • VE detector, 3x better accuracy over 850 nm window
  • Ideal for transmission installers
More Info
KI6610

FiberSafe Fiber Connector Scope x200 KI6610

  • 200x microscope for inspection of SM, MM & MPO networks
  • Best quality, image & eye safety
  • Wide range of interchangeable adaptors
More Info
OPT155

Carry Case & Accessories for Test Kits, Semi-Rigid OPT155

  • Highly cushioned & convenient carry case, durable custom moulded urethane foam, splash resistant cloth cover with zipper and separator, carry strap. Fits microscope, cleaning materials, three KI9000 instruments.
  • Semi-rigid case is both comfortable to use & avoids damaging other objects.
  • Layout help avoid losing items on-site.
  • Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains pack, 2 x mandrel wrap, instruments
More Info
OPT076

LC / SC Hybrid Adapter OPT076

LC Simplex adaptor, metal body

More Info
OPT682

Fibersafe Scope Adapter / 1.25 mm Universal OPT682

Universal 1.25 mm PC adaptor, Simplex / Duplex and terminus for ruggedised connectors

More Info

Optional Accessories

KI6358

VFL Visual Fault Locator Pen KI6358

OPT076

LC / SC Hybrid Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve. Also fits F3000 connector.

OPT051

FC / SC Hybrid Adapter OPT051

FC-SC. OPT081 adaptor is preferred for power meters, since FC ceramic sleeves can break easily. Tough metal body, precision ceramic sleeve

OPT040

ST / SC Hybrid Adapter OPT040

ST-SC. Tough metal body, precision ceramic sleeve

OPT081

2.5 mm Universal / SC Hybrid Adapter OPT081

Universal 2.5 mm-SC, also compatible with duplex SC. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT085

1.25 mm Universal / SC Hybrid Adapter OPT085

Universal 1.25 mm-SC. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Tough metal body, precision ceramic sleeve. Please observe application advice.

OPT080

MU /SC Hybrid Adapter OPT080

MU-SC

OPT072

LC or F3000 / SC Hybrid Adapter OPT072

For F3000-SC PC Simplex. This is an LC-PC adapter that also fits F3000. For LC-PC only use, ceramic sleeve. OPT076 is better value and more robust.

OPT060

E2000 / SC Hybrid Adapter OPT060

E2000-SC, ceramic sleeve

OPT060G

E2000 / SC Hybrid Adapter Green OPT060G

E2000-SC, green, ceramic sleeve

OPT071

LSA-DIN47256 AVIM /SC Hybrid Adapter OPT071

AVIM / LSA / DIN47256 - SC. Ceramic sleeve

OPT661A

Fibersafe Scope Adapter / LC-APC OPT661A

LC APC

OPT662A

Fibersafe Scope Adapter / SC-APC OPT662A

SC APC

OPT663A

Fibersafe Scope Adapter / FC-APC OPT663A

FC APC

OPT682A

Fibersafe Scope Adapter / 1.25 mm APC Universal OPT682A

Universal 1.25 mm, APC, Simplex / Duplex and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

OPT682

Fibersafe Scope Adapter / 1.25 mm Universal OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

OPT681A

Fibersafe Scope Adapter / 2.5 mm APC Universal OPT681A

Universal 2.5 mm, APC, Simplex / Duplex, and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

OPT672

Fibersafe Scope Adapter / 1.6 mm Terminus OPT672

Universal 1.6 mm for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

OPT672A

Fibersafe Scope Adapter / 1.6 mm APC Terminus OPT672A

Universal 1.6 mm APC for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

OPT685

Fibersafe Scope Adapter / 2 mm Terminus OPT685

Universal 2.0 mm terminus

OPT685A

Fibersafe Scope Adapter / 2 mm APC Terminus OPT685A

Universal 2.0 mm APC terminus

OPT668A

Fibersafe Scope Adapter / E2000-APC OPT668A

E2000 APC

OPT670

Fibersafe Scope Adapter / E2000 OPT670

E2000

TOOL CLEAN-03

Fiber Optic Cleaner, 2.5 mm Stick-Type TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Fiber Optic Cleaner, 1.25 mm Stick-type TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

TOOL CLEAN-09A

Fiber Optic Tip Cleaner, Cassette Reel Type TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-09B

Connector Cleaner Replacement Reel TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

OPT690

x10 Eyepiece for Microscope OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

OPT730-SCP-SCP

SC to SC Fiber Test Cable, Simplex SMF 2m

SC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT730-SCP-SCA

SC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT730-SCA-SCA

SC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

SC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-SCP

LC to SC Fiber Test Cable, Simplex SMF 2m

LC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-SCA

LC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-SCP

LC-APC to SC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCA-SCA

LC-APC to SC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - SC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT731-LCP-LCP

LC to LC Fiber Test Lead, Simplex SMF 2m

LC - LC Single Mode Fiber Patch Cord, 2m, Simplex

OPT707

SC to SC Fiber Test Cable, Simplex 62.5um MMF 2m

SC - SC Multimode Fiber Patch Cord, 2m, 62.5um Simplex

OPT731-LCA-LCA

LC-APC to LC-APC Fiber Test Cable, Simplex SMF 2m

LC/APC - LC/APC Single Mode Fiber Patch Cord, 2m, Simplex

OPT706

SC to SC-APC Fiber Test Cable, Simplex 62.5um 2m

SC - SC/APC Multimode Fiber Patch Cord, 2m, 62.5um Simplex

OPT740-SCP-SCP

SC to SC Fiber Test Cable, Simplex 50um MMF 2m

SC - SC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT740-SCP-SCA

SC to SC-APC Fiber Test Cable, Simplex 50um MMF 2m

SC - SC/APC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT741-LCP-SCP

LC to SC Fiber Test Cable, Simplex 50um MM 2m

LC - SC Multimode Fiber Patch Cord, 2m, 50um Simplex

OPT684A

Video Camera for Fibersafe Microscope OPT684A

OPT046

SC / SC Through Adapter OPT046

SC-SC, Tough metal body, precision ceramic sleeve

OPT073

LC Blue Thru Connector Ceramic Sleeve

LC PC SM Adapter Single Mode Simplex, Blue

OPT074

LC Green Thru Connector, Ceramic Sleeve

LC APC SM Adapter Single Mode Simplex, Green

OPT075

LC Beige Thru Connector, Ceramic Sleeve

LC MM Adapter Multimode Simplex, Beige
