MPO Test, Inspect & Clean Kit SM MM, KI-TK071A

Kit, Complete, MPO/MTP SM & MM 2000, Ge (not shippable to Iran)

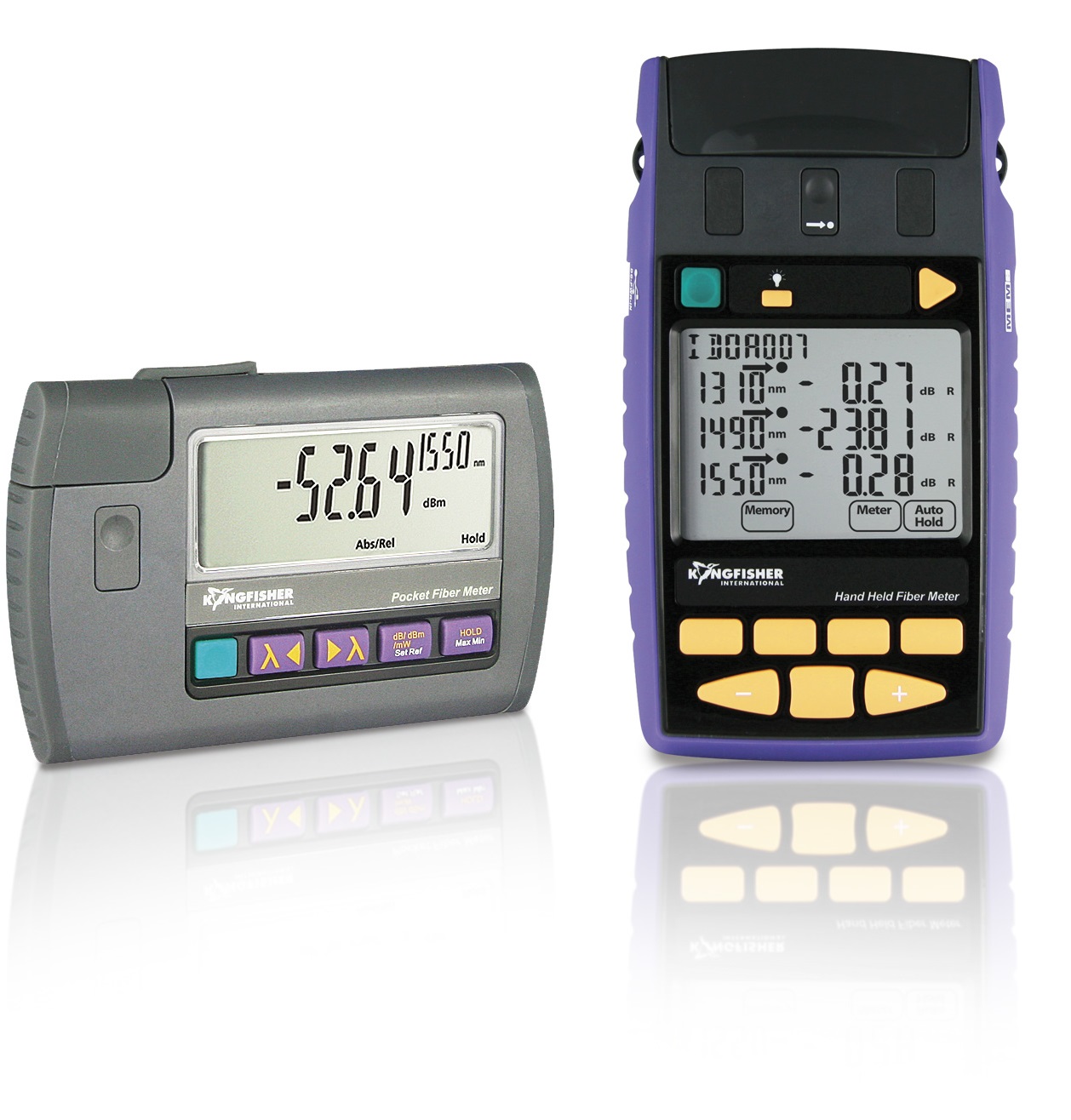

MPO kit with source, Autotest meter, scope & cleaners. 1310/1550 & 850/1300 nm, SM MM fiber

A test inspect & cleaning kit, ideal for low to modest volume on MPO / MTP™, LC, SC and all fiber types. Inexpensive with good MPO tester accuracy.

MPO test, inspection & cleaning applications

  • Optical power at 28 calibrated λ, -40 to +15 dBm range.
  • Optical loss on SM fiber at 1310 / 1550 nm, 40 dB range.
  • Optical loss on MM fiber 850 / 1300 nm, 20 dB (@ 62.5um) range, EF compliant.
  • Loss test automation & reporting with Autotest and KITS™ software.
  • This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
  • Optical 12 fiber Multi-Fiber ID continuity / tone.
  • Optical connector end face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC, LC, MPO-PC & MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC/APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

A suitable MPO breakout cable is needed for this kit.
Alternative: Video microscope
Please enquire for 16/32 ribbon MPO

In the Box

FiberSafe Microscope KI6610

  • 200x microscope for inspection of SM, MM, and MPO networks
  • Best quality, image & eye safety
  • Wide range of interchangeable adaptors
More Info

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.

More Info

MPO 12 24 APC Connector Adapter for KI6610 Series Microscope. OPT678

MPO 12 x n style APC. Incorporates traversing knob

More Info

1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

More Info

Semi-Rigid Carry Case for Test Kits OPT154B

Carry Case, KI2x / KI9x, Cleaning tools

  • Highly cushioned and convenient carry case, sturdily constructed of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper and separator, carry strap. Accommodates any two KI2000 style instruments, microscope, VFL pen.
  • With cleaning accessories.
  • Semi-rigid case construction is comfortable to use, avoids damaging other objects, and it's compartment layout helps avoid leaving items on-site.
  • Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains power pack, two mandrel wraps.
More Info

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)

More Info

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors

More Info

Optional Accessories

x10 Microscope Eyepiece, OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

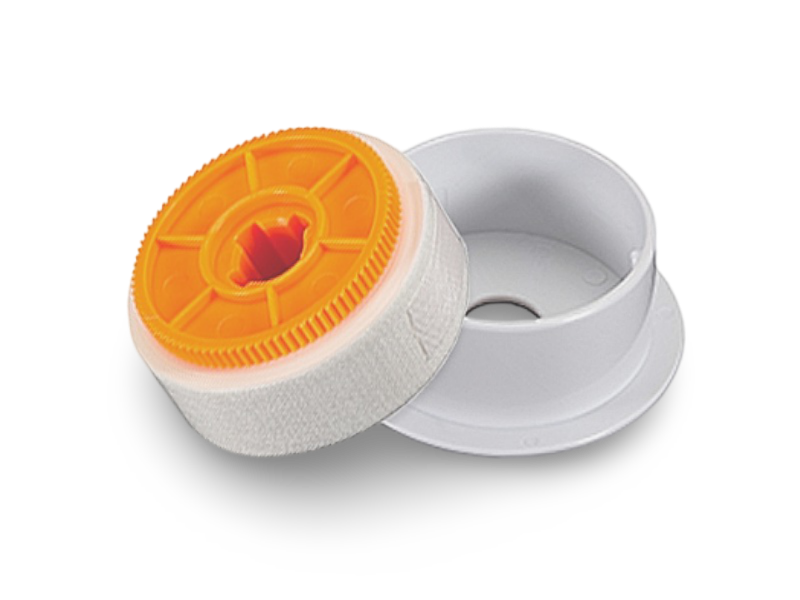

Connector Cleaner Replacement Tape TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

OPT712

MPO - LC OM3 breakout cable kit, 12 fiber, useful for general testing applications.

OPT720-BKO-LC

MPO - LC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-BKO-LCAPC

MPO - LC/APC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-BKO-SC

MPO - SC SM Breakout Cable, 12 fiber, 2m, Female

OPT720-BKO-SCAPC

MPO - SC/APC SM Breakout Cable, 12 fiber, 2 m, Female

OPT720-PBKO-LC

MPO - LC SM Breakout Cable, 12 fiber, 2 m, Male

OPT720-PBKO-LCAPC

MPO - LC/APC SM Breakout Cable, 12 fiber, 2 m, Male

OPT720-PBKO-SC

MPO - SC SM Breakout Cable, 12 fiber, 2 m, Male

OPT720-PBKO-SCAPC

MPO - SC/APC SM Breakout Cable, 12 fiber, 2 m, Male

OPT800

Option, MPO-12xn Through Adapter, useful accessory for MPO testing

OPT073

LC PC SM Adapter Single Mode Simplex, Blue

OPT074

LC APC SM Adapter Single Mode Simplex, Green

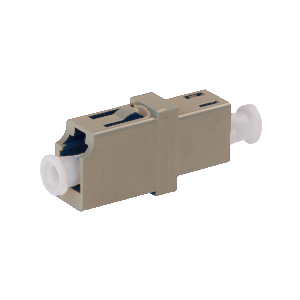

OPT075

LC MM Adapter Multimode Simplex, Beige
