Fiber optic Ethernet and InfiniBand cable test equipment for high bandwidth AI, data center & enterprise cable testing. LC & MPO testers with unparalleled flexibility and test accuracy. Some of this test equipment can be used on all these network configurations, from the most basic, through to where standards are still being proposed.

Us this table to select test equipment for a network, by the connector / fiber types in use there:
The "OPTxxx" below refers to a required connector option.

Connector	Wavelength	Fiber Type	Power Meter	Power Meter	Power Meter	Power Meter	Microscope	Microscope	VFL Pen	Cable Verifier
Instrument>			KI9600-InGaAs KI2600-InGaAs	KI9600XL-Si5 KI2600XL-Si5	KI9600XL-Ge5 KI2600XL-Ge5	KI9600XL-Ge7 KI2600XL-Ge7	KI6610 x200	KI 6608 LFOV	KI6358	MPO Cable Verifier
Duplex LC-PC	850-980 nm	MM	OPT085	OPT224	OPT224	OPT224	OPT682	x	OPT189	x
Duplex LC-PC	1270 - 1610	SM	OPT085	x	OPT224	OPT224	OPT682	x	OPT189	x
MPO-12/APC	1270 - 1610	SM	x	x	OPT227	OPT227	OPT678	OPT677	x	KI-TK812
MPO-24/APC	1270 - 1610	SM	x	x	OPT227	OPT227	OPT678	OPT677	x	KI-TK824
MPO-12/PC	850-980 nm	MM	x	OPT227	OPT227	OPT227	OPT677	OPT677	x	KI-TK812
MPO-24/PC	850-980 nm	MM	x	OPT227	OPT227	OPT227	OPT677	OPT677	x	KI-TK824
MPO-16/APC	1270 - 1610	SM	x	x	x	OPT228	OPT674A	OPT674	x	KI-TK832
MPO-32/APC	1270 - 1610	SM	x	x	x	OPT228	OPT674A	OPT674	x	KI-TK832
MPO-16/PC	850-980 nm	MM	x	OPT228	x	OPT228	OPT674	OPT674	x	KI-TK832
MPO-32/PC	850-980 nm	MM	x	OPT228	x	OPT228	OPT674	OPT674	x	KI-TK832

In addition to the MPO + LC test kits below, we have other non-MPO test kits, and support related connector styles: LC, SC, MPO 12 24 48 72, MPO 16 32, CS, SN, MMC, MDC.

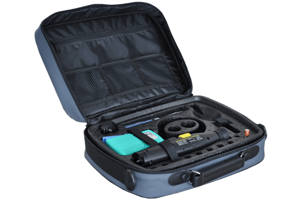

Inspection Clean Kit MPO/MTP™, KI-TK1012

MPO Clean & Inspect Kit KI-TK1012

For all MPO, LC, SC & other connectors
Microscope & cleaning materials
Additional space for other Kingfisher testers

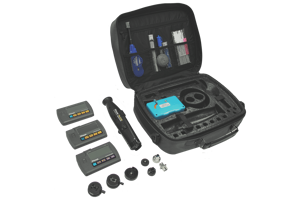

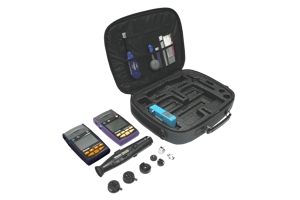

Test-Inspect-Clean Kit MPO KI-TK071A

MPO Test, Inspect & Clean Kit SM MM, KI-TK071A

For all MPO LC SC & other connectors
Quad light source 850/1300, 1310/1550
Power meter
Microscope & cleaning materials
Autotest, memory, USB, reporting software

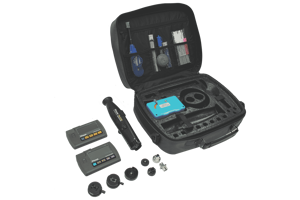

Test-Inspect-Clean Kit MPO SM MM, KI-TK035

MPO Test, Inspect & Clean Kit SM MM, KI-TK035

For all MPO LC SC & other connectors 850-1300-1310-1550 nm
Light sources
Power meter
Microscope & cleaning materials
Reporting software, manual data entry

Test-Inspect-Clean Kit MPO SM KI-TK034

MPO Test, Inspect & Clean Kit SM, KI-TK034

For all MPO LC SC & other connectors 1310-1550 nm
Light source
Power meter
Microscope & cleaning materials
Reporting software, manual data entry

Test-Inspect-Clean Kit MPO MM KI-TK033

MPO Test, Inspect & Clean Kit MM, KI-TK033

For all MPO LC SC & other connectors 850 nm
Light source
Power meter
Microscope & cleaning materials
Reporting software, manual data entry

Visual Cable Verifier MPO 12, KI-TK812

MPO Visual Cable Verifier Kit, 12 Fiber KI-TK812

For all MPO-12 connectors
Visual cable verifier light source
Microscope & cleaning materials
Inspect polarity, continuity & end-face

Visual Cable Verifier MPO 12/24, KI-TK824

MPO Visual Cable Verifier Kit, 4, 8, 12 & 24 Fiber KI-TK824

For all MPO-12 / 24 connectors
Visual cable verifier light source
Microscope & cleaning materials
Inspect polarity, continuity & end-face

Visual Cable Verifier MPO 16/32, KI-TK832

MPO Visual Cable Verifier Kit, 32 Fiber KI-TK832

For all MPO-16 / 32 connectors
Visual cable verifier light source
Microscope & cleaning materials
Inspect polarity, continuity & end-face

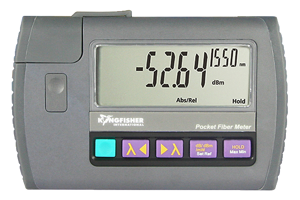

Pocket Power Meter KI 9600A Series

Pocket Power Meter KI 9600A Series

Simple shirt-pocket size power meter
Options for all networks
Low skill Tamper-Lock mode
Ideal for transmission installers

Suited for		eth/IB	PON	MPO	WDM	POF/PCS	SMF	MMF	Hi Pwr

KI9600A-INGAAS	In Stock

KI9600XL-SI5	In Stock

KI9600XL-GE5	In Stock

KI9600XL-GE7

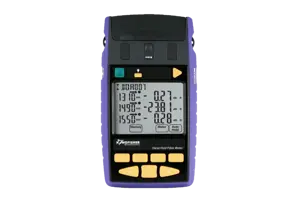

Handheld Power Meter KI 2600 Series

Handheld Power Meter KI 2600 Series

Productivity fiber optic meter
Options for all networks
Ideal for cable installers
Powerful reporting capability
Optional VFL

Suited for		eth/IB	PON	MPO	WDM	POF/PCS	SMF	MMF	Hi Pwr	Fault

KI2600-INGAAS	In Stock

KI2601-INGAAS	In Stock

KI2600XL-SI5	In Stock

KI2600XL-GE5	In Stock

KI2600XL-GE7

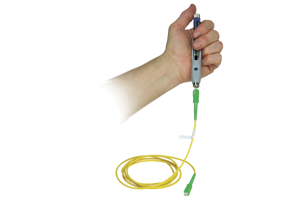

Visual Fault Locator Pen KI 6300 Series

Visual Fault Locator Pen KI 6300 Series

Pen-sized universal laser VFL 1mW(1.7dBm) or 5mW(7dBm)
Eye safe class 1 or class 2M laser
LC / 1.25 mm universal adapter option

Suited for		eth/IB	PON	MPO	POF/PCS	SMF	MMF	Fault

KI6358	In Stock

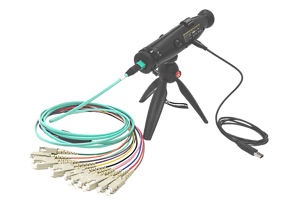

FiberSafe Microscope KI 6610 Series

FiberSafe Microscope KI 6610 Series

Microscope for inspection of SM, MM, MPO and POF networks
Best quality, image & eye safety
Wide range of interchangeable adaptors
Many helpful features

Suited for		eth/IB	PON	MPO	POF/PCS	SMF	MMF

KI6610	In Stock

KI6608	In Stock

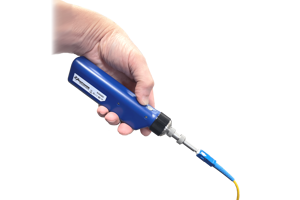

Fiber Inspection Probe KI 6680

Fiber Inspection Probe KI 6680

Fibre scope tester to check mated & unmated connectors SM, MM, MPO
Software for Windows, Apple or Android devices
Wi-Fi or USB connection
Easy operation

Suited for		eth/IB	PON	MPO	SMF	MMF	Hi Pwr

KI6680	In Stock

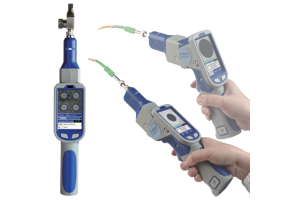

Integrated Inspection Probe AutoGet Wi-Fi

Integrated Inspection Probe AutoGet Wi-Fi

Fiber scope tester to check and analyze mated & unmated connectors SM, MM, MPO
Integrated LCD display
Fully automated pass/fail analysis (IEC61300-3-35 compliant)

Suited for		eth/IB	PON	MPO	SMF	MMF	Hi Pwr

AutoGet-Wi-Fi

Hybrid Adapter Series

Hybrid Adapter Series

Sources, attenuators, OLTS
Most power meters except XL series
G2 connector
Useful to make up test adapter leads

Suited for		eth/IB	POF/PCS

OPT085	In Stock

XL Series Power Meter Adapter Series

XL Series Power Meter Adapter Series

Large area XL series power meters
Legacy KI6000 power meters
Also fits other instruments

Suited for		eth/IB	MPO	POF/PCS

OPT224	In Stock

OPT227	In Stock

OPT228	In Stock

KI 6610 Series Microscope Adapters

KI 6610 Series Microscope Adapters

KI6610 Series FiberSafe Optical Microscope

Suited for		eth/IB	MPO	POF/PCS	Hi Pwr

OPT682	In Stock

OPT674	In Stock

OPT674A

OPT677	In Stock

OPT678	In Stock

KI 6680 / Dimension AutoGet Wi-Fi Scope Adapter Series

KI 6680 / Dimension AutoGet Wi-Fi Scope Adapter Series

KI668x Fiber Inspection Probe
Autoget Wi-Fi Inspection Probe

Suited for		eth/IB	PON	MPO	POF/PCS	SMF	Hi Pwr

OPT635	In Stock

OPT636

Miscellaneous Accessories

Miscellaneous Accessories

Test accessories, kit components and replacement cleaning consumables.

Suited for		eth/IB	MPO	POF/PCS	SMF	MMF

OPT189	In Stock
