Overview

A portable optical power meter for professional installers and contractors, to test power, loss and continuity on plastic fiber, multimode fiber optic systems with MPO and other connectors, and free-space beams. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

  • Easy to use, rugged & versatile
  • 21 calibration λ, 1% accuracy ISO 17025 traceable
  • Improved high power accuracy
  • Autotest with up to 3 λ displayed
  • Long battery life & micro USB external power
  • Large back-lit LCD, sunlight readable
  • Interchangeable connectors
  • Large memory with text naming & time stamp
  • KITS™ reporting software with data security
  • One button memory dump to USB key
  • MultiFiber ID tone detection
  • Full QA & linearity test report

Key Features

Specifications

KI2600XL-SI5 specifications
Detector type Si (5 mm)

Response wavelength 350 ~ 1100 nm

Calibration wavelengths 400, 430, 470, 490, 520, 550, 580, 600, 635, 650, 660, 670, 700, 740, 780, 820, 850, 880, 910, 940, 980 nm

Power range +10 ~ -50 dBm (for 400 ~ 635 nm) / +10 ~ -60 dBm (for 650 ~ 980 nm)

Mid-range linearity 0.04 dB (typical)

Total uncertainty 0.3 dB (max)

Wavelength sensitivity (± 30 nm) 0.03 dB (typical)

Response uniformity across detector 1 % (0.06 dB)

ID tone detection & Autotest sensitivity -45 dBm

General Handheld Power Meter KI 2600 Series specifications
Accuracy 1 % (0.06 dB)

Calibration validity 3 years (ISO17025)

Resolution 0.01 dB

Polarization sensitivity < 0.05 dB (typical)

Tone detection 150 ~ 9999 Hz ± 1 %

Power 2x AA (LR6) Alkaline / External via USB

Battery life Up to 1000 hours

Auto-off Selectable

USB interfaces USB-micro for power & software / USB-A for memory key

Software KITS (free download)

Memory 1000 (4-λ tests) / Unlimited on USB memory key

Size 124 x 81 x 25 mm

Unit weight 150 gm

Shipping weight 1.1 kg

Operating / storage temperatures -15 to 55 °C / -25 to 70 °C

Relative humidity 0 ~ 95 %

Warranty 3 years


Documentation & Support

Applications

In the box

OPT149

Padded Canvas Carry Pouch OPT149

Soft pouch with carry straps and compartments for accessories storage, able to carry 2x KI2000 series-size instruments.

Software (KITS)

Software (KITS)

Downloadable from Kingfisher's website for free.

Optional accessories

OPT153-CASE

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Canvas case with foam compartments for 2x KI2000 or KI7000 series instrument, 3x KI9000 series instrument and other accessories.

USD $285.84

In stock
Add to Cart
OPT154B

Semi-Rigid Carry Case for Test Kits OPT154B

Content: 1x Case (OPT154B-CASE) (suitable for 2x KI2000 series instrument, 1x Microscope, 1x VFL, Accessories); 5x 2.5mm Fiber Conn Cleaning Sticks; 5x 1.25mm Fiber Conn Cleaning Sticks; 1x Blower Brush (TOOL CLEAN-01A); 1x Fiber Conn Cleaning Cartridge(TOOL CLEAN-09A).

USD $425.54

In stock
Add to Cart
OPT201-POF

USD $116.67

In stock
Add to Cart
OPT202-POF

USD $118.74

In stock
Add to Cart
OPT203

SMA POF Connector Adapter - XL Power Meter, OPT203

SMA for POF with large pin-hole

USD $22.32

In stock
Add to Cart
OPT204-POF

USD $107.05

In stock
Add to Cart
OPT224

1.25 mm Universal Connector Adapter - XL Power Meter, OPT224

1.25 mm Universal. Also fits duplex LC

USD $52.68

In stock
Add to Cart
OPT225

2.5 mm Universal Connector Adapter - XL Power Meter, OPT225

2.5 mm Universal. Also fits duplex SC

USD $51.61

In stock
Add to Cart
OPT226A

LC Connector Adapter - XL Power Meter, OPT226A

LC Simplex. For duplex LC use OPT224

USD $147.31

In stock
Add to Cart
OPT227

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector For both MM & SM fiber.

USD $168.52

In stock
Add to Cart
OPT229

POF-Multi Connector Adapter - XL Power Meter, OPT229

HFBR simplex and duplex, Mini Toslink, bare POF cable,, 2.5mm. Multi-Purpose POF Adapter for power meters. Turn the turret to the required hole size: 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm, x 8.5 mm deep. For SMA connectors, use OPT203.

USD $222.46

In stock
Add to Cart
OPT230

USD $77.76

In stock
Add to Cart
OPT231

HFBR POF Connector Adapter - XL Power Meter, OPT231

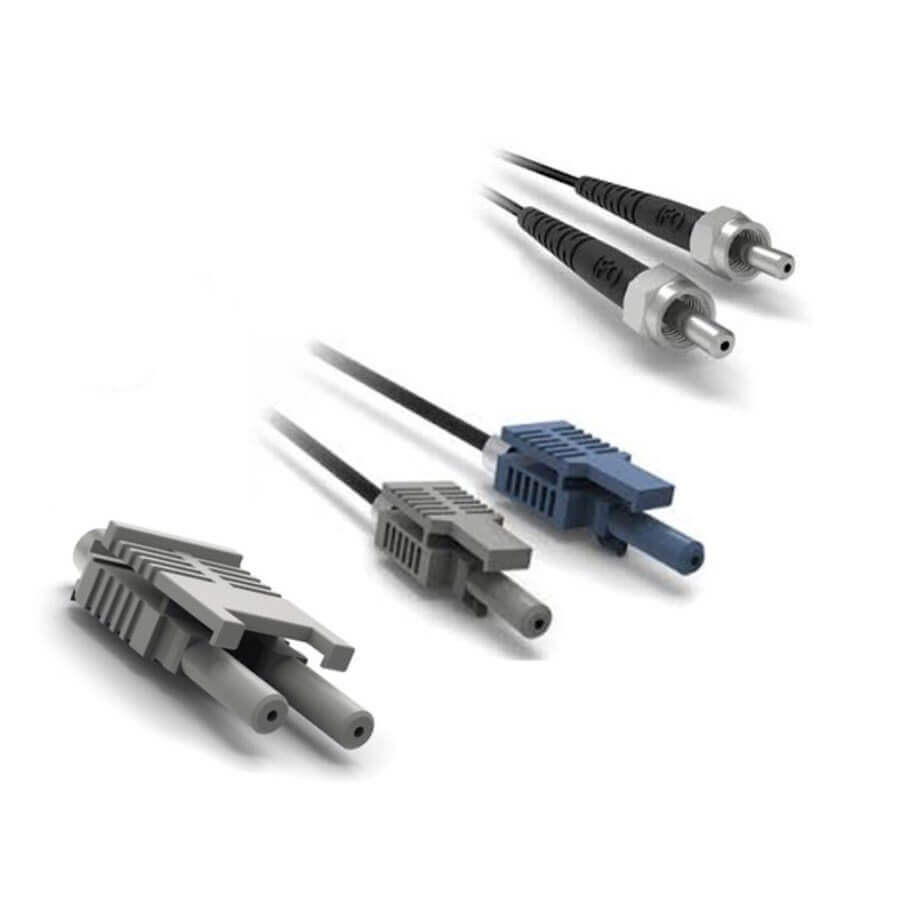

For simplex / duplex / latching / non-latching POF HFBR, Versatile Link, Redlink connectors.

USD $120.38

In stock
Add to Cart
OPT232

MT Ferrule Adapter - XL Power Meter, OPT232

MT ferrule can be pushed in or pulled out of the rubber insert

USD $266.71

In stock
Add to Cart
