MPO Test, Inspect & Clean Kit SM, KI-TK034

Kit, Complete, MPO/MTP SM 9000, Ge

MPO kit with source, meter, scope & cleaners. SM 1310/1550 nm

In Stock
Price: USD $4111.49

A test inspect & cleaning kit, excellent for low to modest volume on MPO / MTP™, LC, SC and single mode fiber. Inexpensive with good accuracy.

MPO test, inspection & cleaning applications

  • Optical power at 12 calibrated λ, -40 to +10 dB range.
  • Optical loss on SM fiber at 1310 & 1550 nm, 40 dB range.

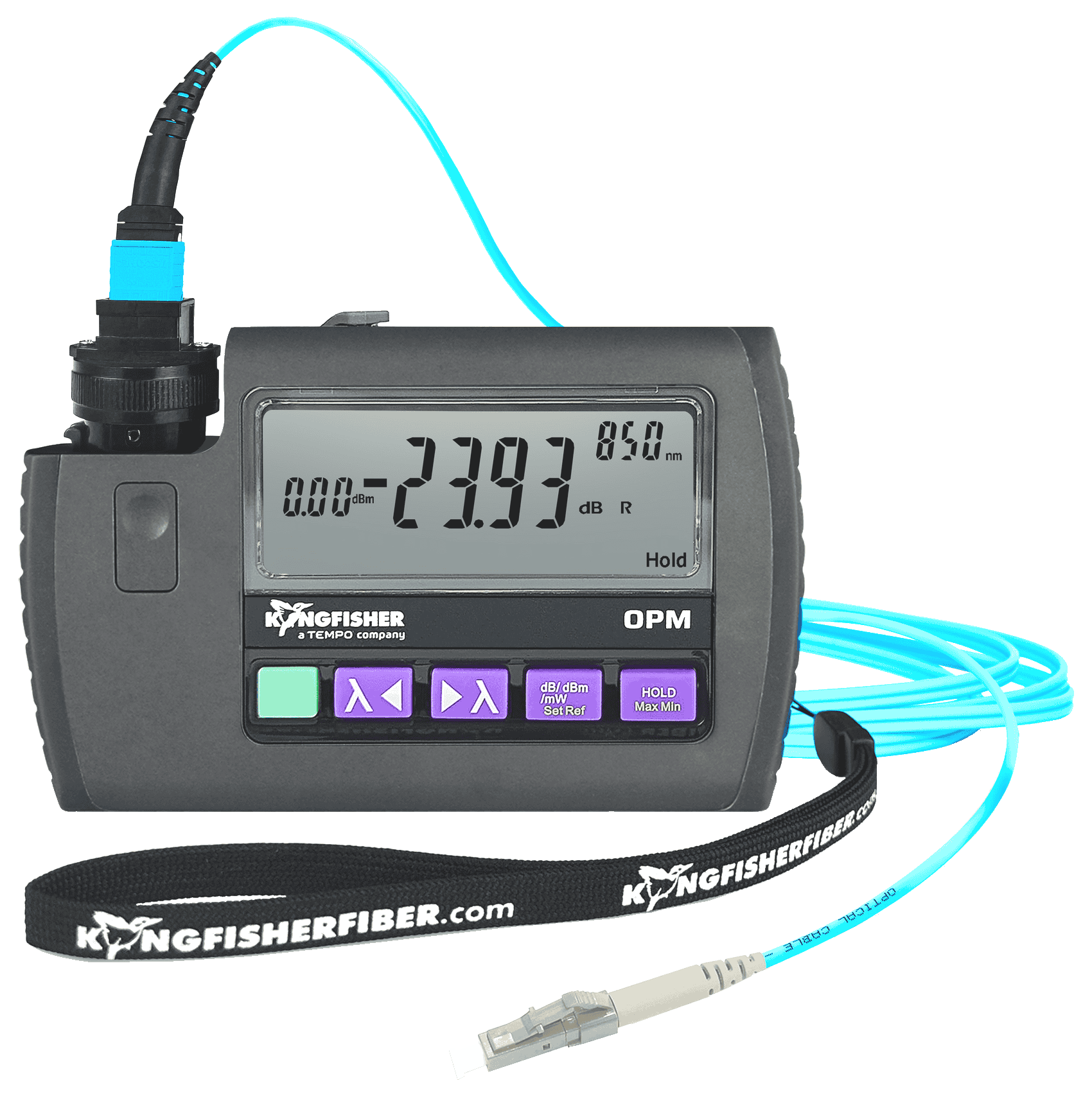

  • This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
  • Reporting Software for cable loss (manual data entry).
  • Optical continuity / tone checking, 12 fiber Multi-Fiber ID, 37 dB range.
  • Optical connector end-face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC, LC, MPO-APC interchangeable connector adapters.
Meter accepts MPO, SC, LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO APC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

Additional:
A suitable MPO breakout cable is needed for this kit.
Interchangeable connector adapters: Hybrid (for Source) / XL (for Meter) / Microscope
Test leads, cleaning materials & consumables
VFL pen
Video camera
Alternative:
Video microscope

In the Box

OPT076

LC Hybrid Connector Adapter OPT076

LC Simplex, metal body

OPT227

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.

OPT224

1.25 mm Universal Connector Adapter - XL Power Meter, OPT224

1.25 mm Universal. Also fits duplex LC

OPT678

MPO 12 24 APC Connector Adapter for KI6610 Series Microscope. OPT678

MPO 12 x n style APC. Incorporates traversing knob

OPT682

1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

OPT155

Semi-Rigid Carry Case for Test Kits OPT155

  • Sturdy carry case made of durable custom moulded urethane foam, splash resistant cloth outer covering with zipper, carry strap.
  • Accommodates any three KI9000 instruments.
  • Comfortable to use
  • Space for additional (not supplied): batteries, mandrel wraps, test leads, connector adaptors, documentation, instruments.
TOOL CLEAN-05A

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)

OPT401

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO endface cleaner for both mated and unmated connectors

Optional Accessories

OPT690

x10 Microscope Eyepiece, OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

USD $25.14

In stock
Add to Cart
OPT691

x20 Microscope Eyepiece, OPT691

Optional eyepiece for KI6600 series microscope. Converts KI6608 to x80 magnification. 23.2 mm scope mounting diameter.

USD $24.61

In stock
Add to Cart
OPT720-BKO-LC

OPT720-BKO-LC

SM MPO-LC Breakout Lead 12 fiber 2 m - No Pin

USD $204.11

In stock
Add to Cart
OPT720-BKO-LCAPC

OPT720-BKO-LCAPC

SM MPO-LC/APC Breakout Lead 12 fiber, 2 m - No Pin

USD $208.05

Add to Cart
OPT720-BKO-SCAPC

OPT720-BKO-SCAPC

SM MPO-SC/APC Breakout Lead 12 fiber, 2 m - No Pin

USD $208.05

Add to Cart
OPT720-BKO-SC

OPT720-BKO-SC

SM MPO-SC Breakout Lead 12 fiber 2m -No Pin

USD $204.11

Add to Cart
OPT720-PBKO-LC

OPT720-PBKO-LC

SM MPO-LC Breakout Lead 12 fiber, 2 m - Pinned

USD $206.08

In stock
Add to Cart
OPT720-PBKO-LCAPC

OPT720-PBKO-LCAPC

SM MPO-LC/APC Breakout Lead 12 fiber 2 m - Pinned

USD $210.00

Add to Cart
OPT720-PBKO-SC

OPT720-PBKO-SC

SM MPO-SC Breakout Lead 12 fiber 2 m - Pinned

USD $206.08

Add to Cart
OPT720-PBKO-SCAPC

OPT720-PBKO-SCAPC

SM MPO-SC/APC Breakout Lead 12 fiber, 2 m - Pinned

USD $210.00

Add to Cart
