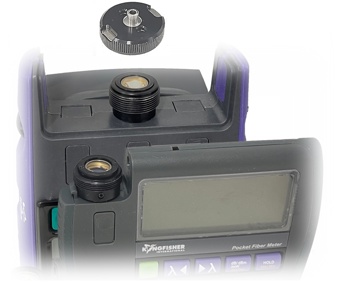

Power Meter Connector Adapter XL Series

For Kingfisher XL optical power meters, and legacy / other power meters

  • For XL & legacy optical power meters.
  • For both PC and APC polish connectors.
  • Fits other brands of power meter with 7/8” 28 TPI thread.
  • Durable metal design.

More interchangeable connector styles

OPT226A

LC Connector Adapter - XL Power Meter, OPT226A

LC Simplex. For duplex LC use OPT224

OPT201

SC Connector Adapter - XL Power Meter, OPT201

SC

OPT204

FC Connector Adaptor - XL Power Meter, OPT204

FC

OPT202

ST Connector Adapter - XL Power Meter, OPT202

ST

OPT224

1.25 mm Universal Connector Adapter - XL Power Meter, OPT224

1.25 mm Universal. Also fits duplex LC

OPT225

2.5 mm Universal Connector Adapter - XL Power Meter, OPT225

2.5 mm Universal. Also fits duplex SC

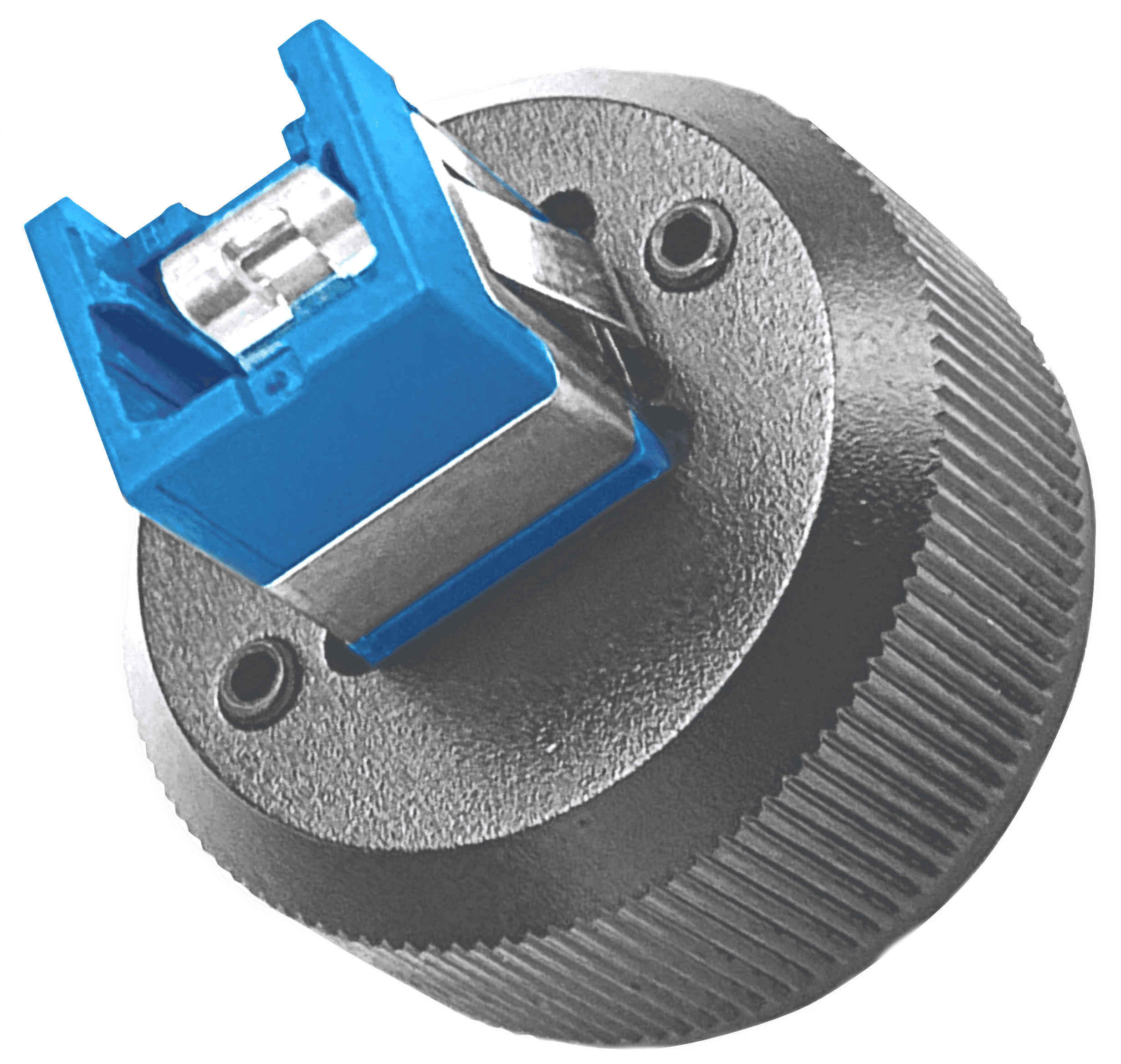

OPT200

Senko CS Connector Adapter - XL Power Meter, OPT200

Duplex adapter. For optical power meters fitted with XL-Ge7 detector

OPT205

Biconic Connector Adapter - XL Power Meter, OPT205

Biconic

OPT227

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector For both MM & SM fiber.

OPT228

MPO Connector Adapter - XL Power Meter, OPT228

MTP™ / MPO 16 x n style with offset key. For XL power meters with 7 mm detector only. For both MM & SM fiber.

OPT233

MMC Connector / MT Ferrule Adaptor - XL Power Meter, OPT233

MMC Connector or MT Ferrule

OPT201-POF

SC POF Connector Adapter - XL Power Meter, OPT201-POF

SC for POF with large pin-hole

OPT203

SMA POF Connector Adapter - XL Power Meter, OPT203

SMA for POF with large pin-hole

OPT202-POF

ST POF Connector Adapter - XL Power Meter, OPT202-POF

ST for POF with large pin-hole

OPT204-POF

FC POF Connector Adapter - XL Power Meter, OPT204-POF

FC for POF with large pin-hole

OPT229

POF-Multi Connector Adapter - XL Power Meter, OPT229

HFBR simplex and duplex, Mini Toslink, bare POF cable,, 2.5mm. Multi-Purpose POF Adapter for power meters. Turn the turret to the required hole size: 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm, x 8.5 mm deep. For SMA connectors, use OPT203.

OPT230

Toslink POF Connector Adapter - XL Power Meter, OPT230

Toslink / Optilink / SPDIF

OPT231

HFBR POF Connector Adapter - XL Power Meter, OPT231

For simplex / duplex / latching / non-latching POF HFBR, Versatile Link, Redlink connectors.
