MPO Test, Inspect & Clean Kit MM, KI-TK033

Kit, Complete, MPO/MTP MM 9000, Si

MPO kit with source, meter, scope & cleaners. 850/1300 nm, MM fiber.

Testing, inspecting & cleaning kit for low to modest volume on MM MPO / MTP™, LC, SC and multimode fiber. Inexpensive with good accuracy.

MPO test, inspection & cleaning applications

  • Optical power at 9 calibrated λ, -60 to +5 dB range.
  • Optical loss on MM fiber at 850 & 1300 nm, 40 dB range (@ 62.5um), EF compliant.
  • This meter measures the power from any MPO fiber end, so it does not need re-connecting every time the test fiber is moved.
  • Reporting software for cable loss (manual data entry).
  • Optical continuity / tone checking,12 fiber Multi-Fiber ID, 22 dB range.
  • Optical connector end-face inspection microscope x200.
  • Optical connector cleaning tools & materials.
  • Generally meets safety regulations & standards based test procedures.

Connector & battery summary

SC, LC, MPO interchangeable connector adapters.
Meter accepts MPO, SC & LC, any 1.25mm ferrule. PC & APC polish.
Source accepts SC & LC. PC polish.
Microscope accepts MPO PC, SC, LC. Universal 2.5 & 1.25 mm adapters are also OK for occasional APC use.
Meter 2 x AA alkaline. Run time >1000 hours. Micro USB pwr /charging.
Source 2 x AA alkaline. Run time >80 hours. Micro USB pwr /charging.
Microscope 1 x AAA alkaline. Run time >300 hr. Micro-USB power.

We gladly adjust kits to meet your exact needs.

A suitable MPO breakout cable is needed for this kit.
Alternative: Video microscope
Please enquire for 16/32 ribbon MPO

In the Box

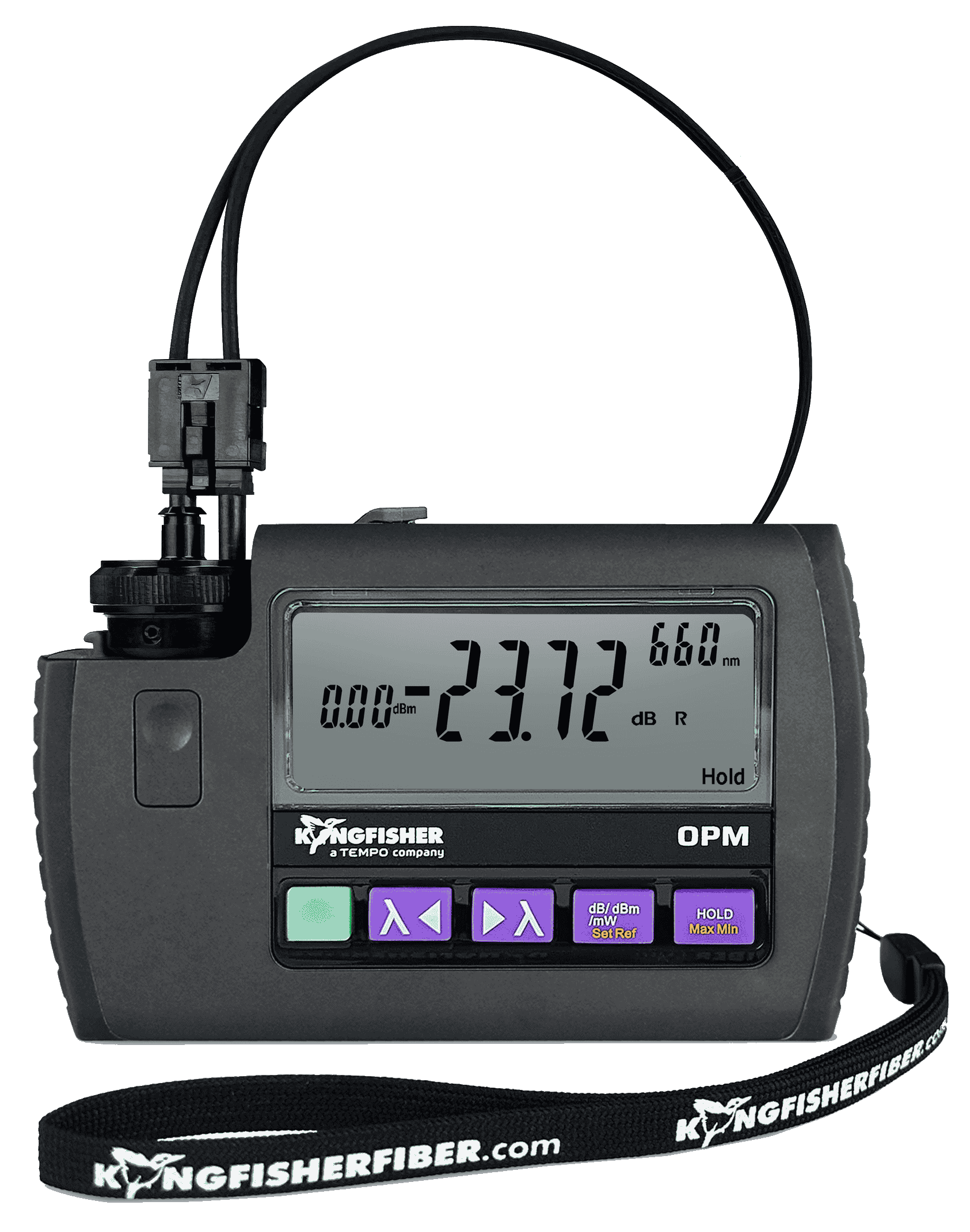

OPM Meter MPO/POF KI 9600XL-Si5

  • Simple shirt-pocket size power meter
  • Large area detector for ribbon fiber, MPO & POF testing
  • Ideal for transmission installers
More Info

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For both MM & SM fiber. For XL power meters with a 5 or 7 mm detector.

More Info

1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

More Info

Semi-Rigid Carry Case for Test Kits OPT155

  • Highly cushioned & convenient carry case, durable custom moulded urethane foam, splash resistant cloth cover with zipper and separator, carry strap. Fits microscope, cleaning materials, three KI9000 instruments.
  • Semi-rigid case is both comfortable to use & avoids damaging other objects.
  • Layout help avoid losing items on-site.
  • Space for additional: (not supplied) batteries, connector adaptors, test leads, documentation, mains pack, 2 x mandrel wrap, instruments
More Info

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

Sticks to clean MPO end face, particularly around the alignment pins
(Price shown is for per stick, sold in 10-stick pack)

More Info

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors

More Info

Optional Accessories

x10 Microscope Eyepiece, OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

Entry Level Video Camera for Fibersafe Microscope OPT684

(Please call us to confirm availability before ordering)

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Connector Cleaner Replacement Tape TOOL CLEAN-09B

Spare / replacement cartridge for TOOL CLEAN-09A

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

MPO OM3 cable breakout kit

MPO - LC OM3 breakout cable kit, 12 fiber, useful for general testing applications.

MPO-12xn Through Adapter Option

Option, MPO-12xn Through Adapter, useful accessory for MPO testing

SC/SC Through Connector OPT046

SC-SC, Tough metal body, precision ceramic sleeve

LC Beige Thru Connector, Ceramic Sleeve

LC MM Adapter Multimode Simplex, Beige
