FiberSafe Fiber Endface Microscope | Kingfisher International

Overview

The perfect tool for checking an unmated fiber optic connector endface for dirt, end face quality and patch lead continuity. High quality construction & helpful features will improve the performance of all technical staff in portable or desktop applications. 40x magnification is ideal for inspecting POF and MPO/ MT ferrule full end-face, meeting the requirements of IEC 61300-3-35:2022 for an MPO LFOV (Large Field Of View) Microscope.

Best image quality & ease of use
40x magnification for POF and multi-fiber inspection
Optional alternative Eyepiece for x80 magnification, option OPT691
Greatly improved eye safety: Class 3B laser eye safety
Range of fiber connector adapters
Easy focus & image centering
Long alkaline battery life or external power
Video capture option
Stabilized illumination with timer
Lanyard and tripod mounts
Coaxial, oblique or core illumination
QA report with ISO 9001 traceable eye safety test

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

FiberSafe Microscope eye safety

The Fibersafe Microscope significantly improves the state of the art of eye safety.

Runs on Alkaline Batteries

SC / LC duplex support

Use our universal interchangeable connector options for duplex testing.

Made in Australia

Designed, made & calibrated in Melbourne, Australia.

Specifications

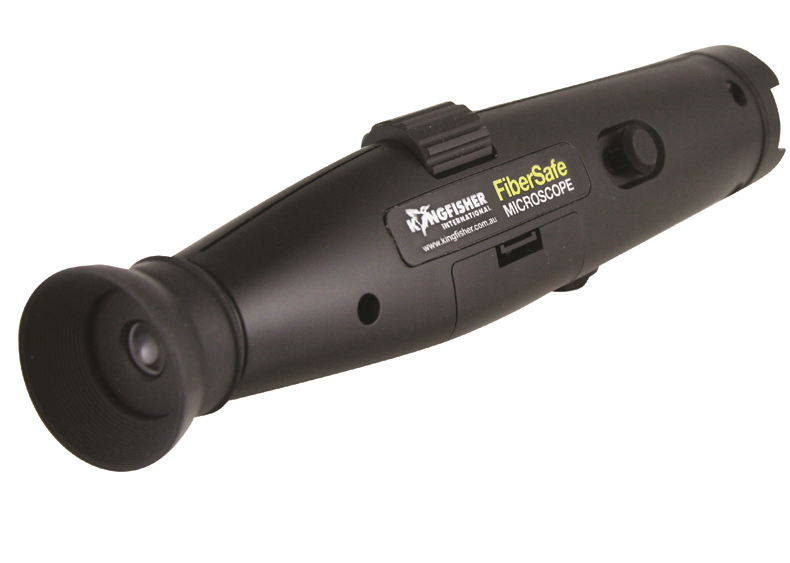

KI6608 specifications

Optical magnification	40x

Resolving power	3.10 µm

Max viewable area diameter	5 mm

Country of Origin	Australia

Shipping Weight	500 g

General FiberSafe Microscope KI 6610 Series specifications

Max eye safety input limit (IEC60825-2 Ed.3.1)	20 dBm (@ 635 ~ 800 nm) / 30 dBm (@ 800 ~1650 nm)

Illumination modes	Coaxial, oblique, core

Damage level	30 dBm

Power	Battery / External power via micro-USB

Battery	1x AAA (LR03) Alkaline

Battery life	300 hours (coaxial illumination for KI6608 & KI6610) / 75 hours (coaxial illumination for KI6611)

Auto off	When powered by battery

Size	184.4 mm x 49.3 mm

Unit weight	0.21 kg

Shipping weight	1.5 kg

Illuminating LED's life	100,000 hours

Operating / storage temperature	-15 to 55°C / -25 to 70°C

Eyepiece Mount	23.2 mm diameter push-in (standard mount)

Fiber Adaptor Mount	1-1/2" UN 28 TPI 2A Thread

Relative humidity	95%

Warranty	3 years

Documentation & Support

Sales literature

Related application notes

More application notes...

Manuals & software

General support

Applications

This product is included in the following test kits

Visual Cable Verifier MPO 12, KI-TK812

MPO Verifier kit with color-pattern source & scope, 12 fiber, MM SM >>> Please call us to check stock availability before ordering <<<

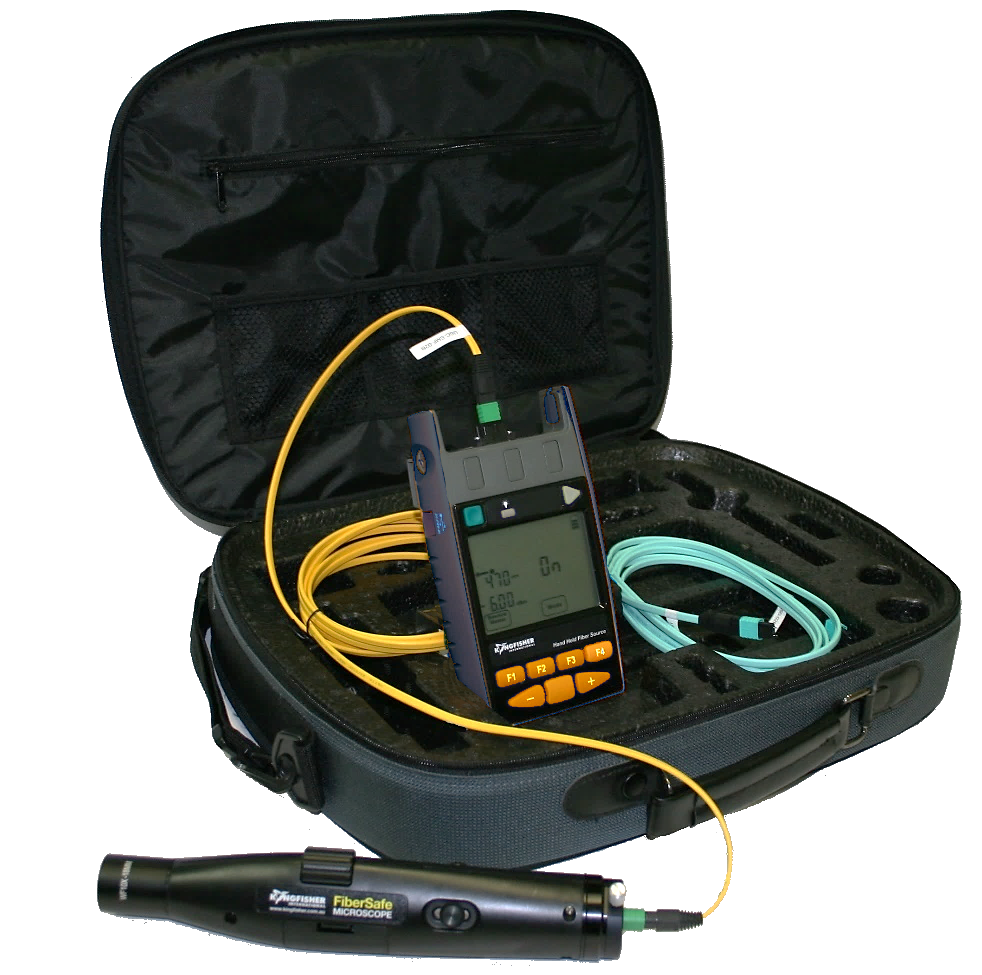

Visual Cable Verifier MPO 12/24, KI-TK824

MPO Verifier kit with color-pattern source & scope, 4, 8, 12 & 24 fiber SM MM >>> Please call us to check stock availability before ordering <<<

Visual Cable Verifier MPO 16/32, KI-TK832

MPO Verifier kit with color-pattern source & scope, 16 & 32 fiber, SM MM >>> Please call us to check stock availability before ordering <<<

Visual Cable Verifier MPO 48/72, KI-TK872

MPO Verifier kit with color-pattern source & scope, 48 & 72 fiber, SM MM >>> Please call us to check stock availability before ordering <<<

Recommended for these applications

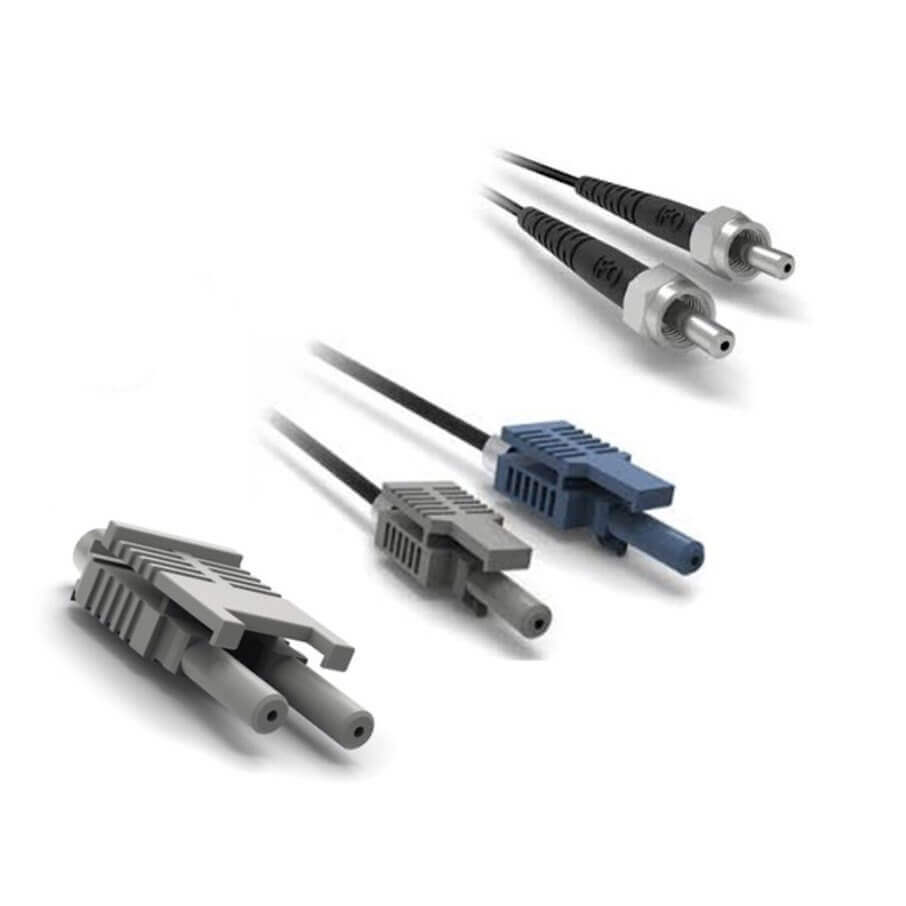

Plastic optical fiber (POF, PCS, HCS, PMMI)

Test 1 mm plastic optical fiber, hard-clad or polymer-clad silica fiber (POF, PCS & HCS). Bare plastic fiber and many connector types supported.

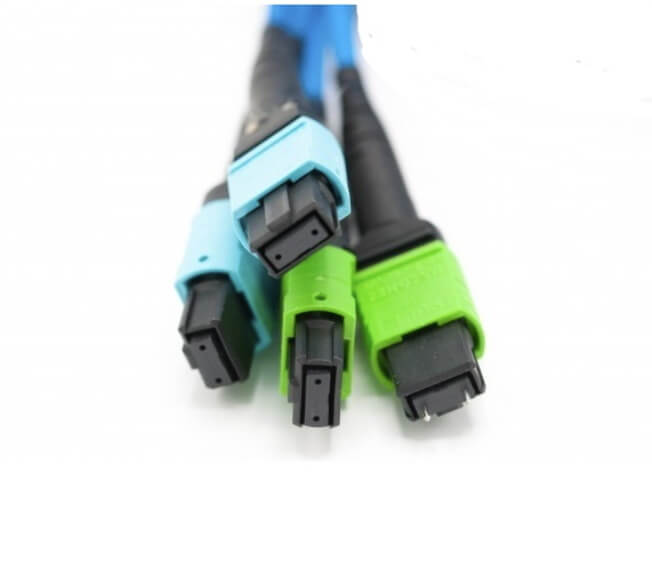

MPO (MTP™) and ribbon fiber

Unparalleled flexibility, value & accuracy for high density AI, data center, enterprise & service provider applications. Single mode and multimode networks.

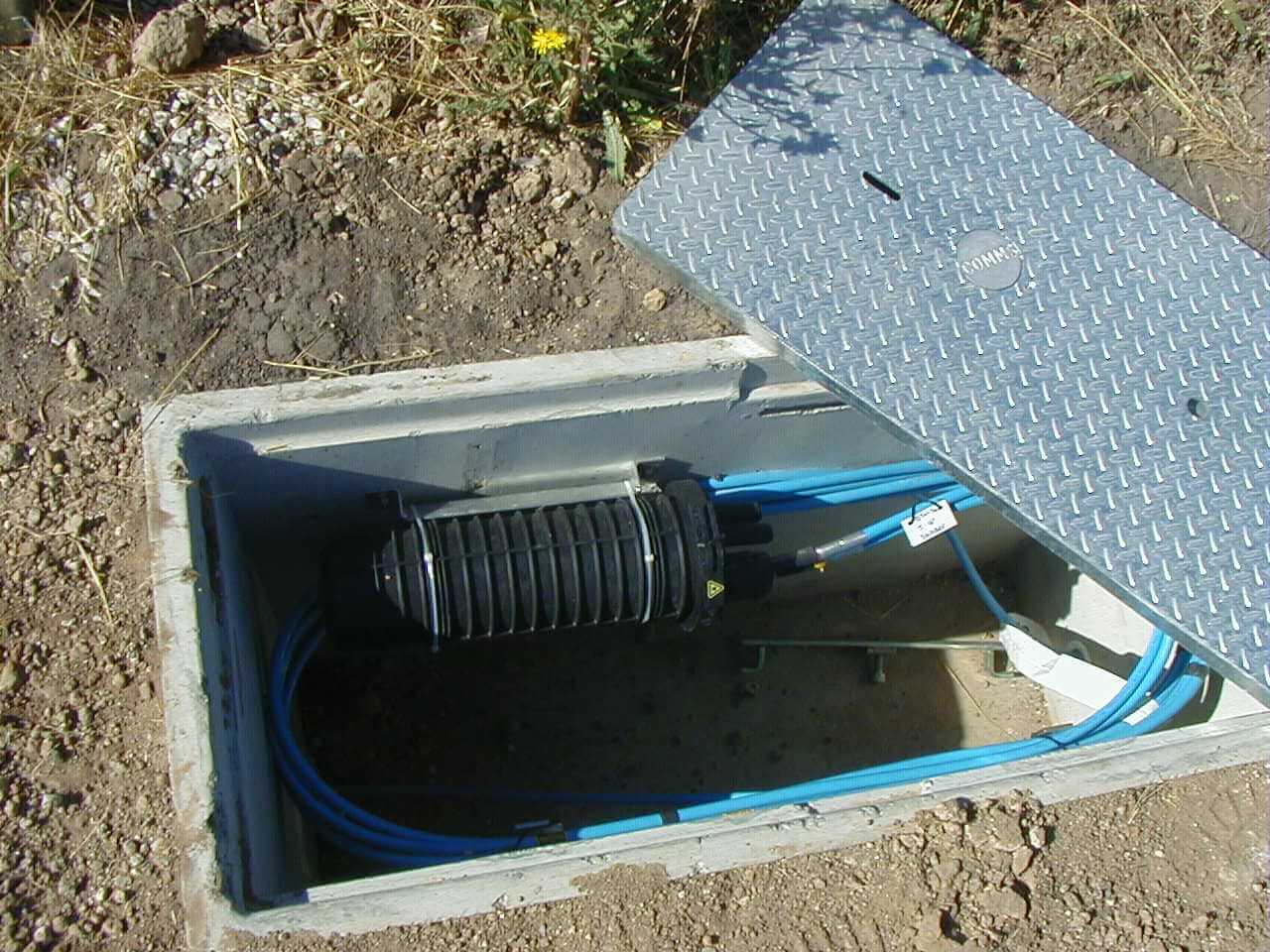

For continuity and polarity testing

Fiber optic testers for checking polarity, continuity & fault troubleshooting

Defense and ruggedised applications

Ruggedized, field-ready and traceable fiber optic testers for use in defense applications and harsh environments.

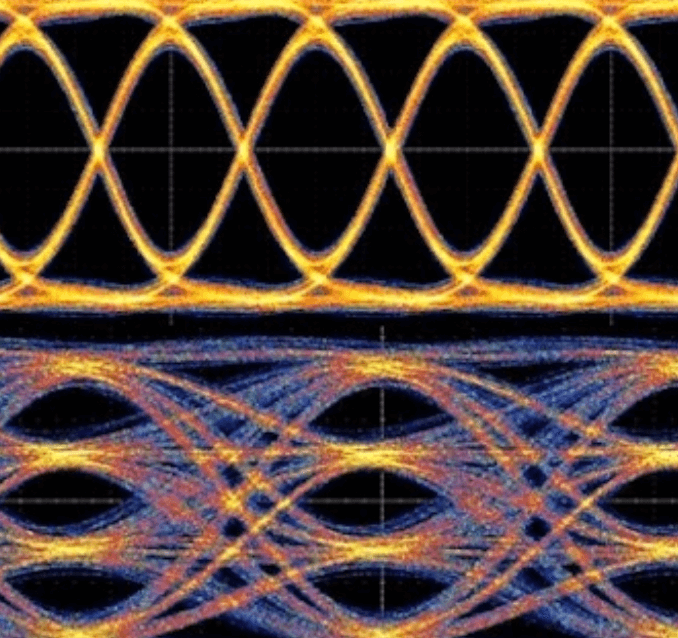

Fiber Optic Ethernet & InfiniBand

Unparalleled flexibility, value & accuracy for physical layer cable testing on high performance data networks used in AI, data center & enterprise applications.

In the box

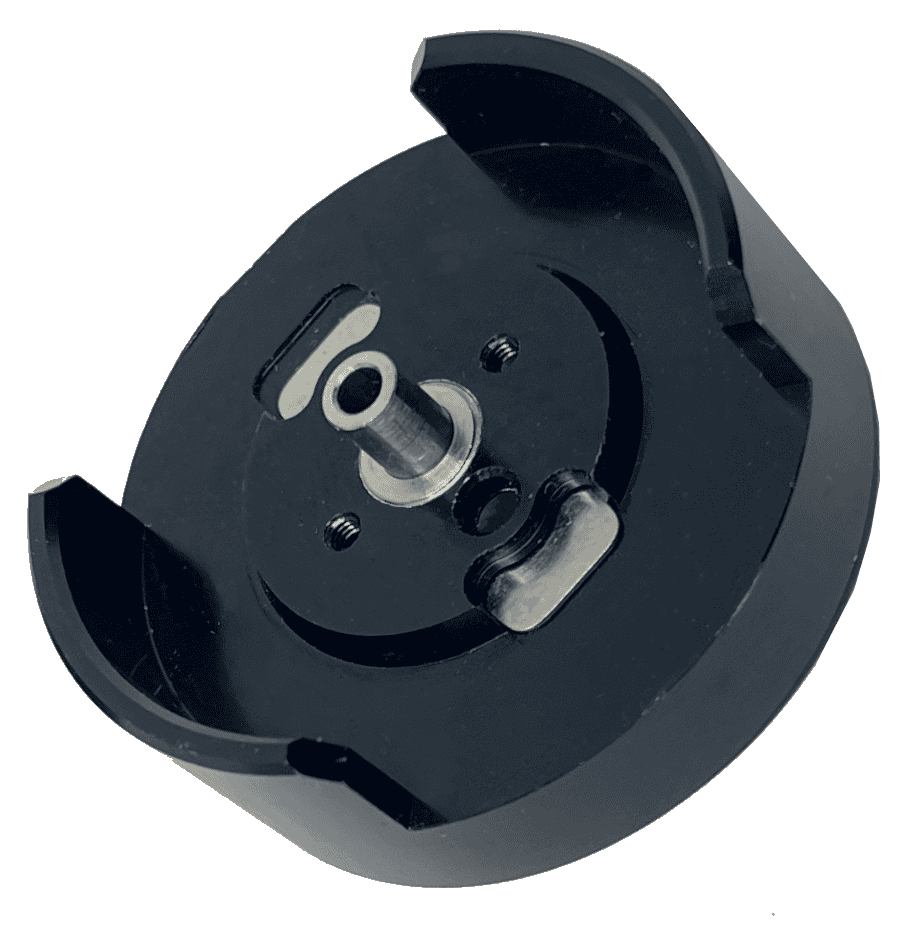

Fibersafe Scope Adapter / 2.5 mm Universal OPT681

Universal 2.5 mm, PC, simplex / duplex, & terminus for ruggedised connectors

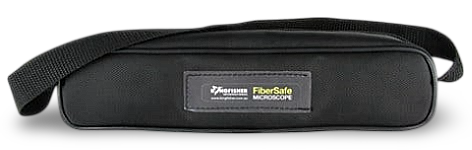

Canvas Bag for KI6610 Series Microscopes OPT157

Soft pouch for KI66xx series microscopes. With carry straps.

Wrist Strap / Lanyard

Handy lanyard & matching instrument attachment point

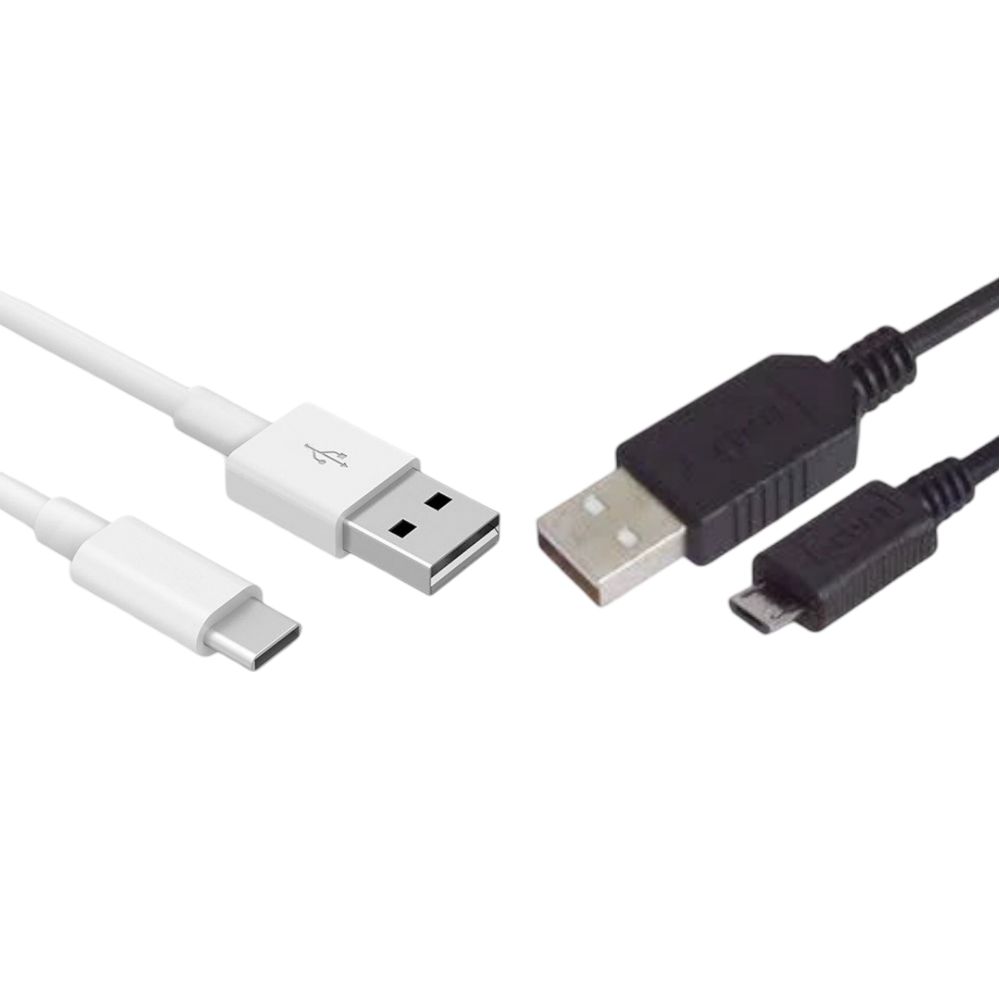

USB Cable (either Micro or C)

2 meter USB cable, A-to-Micro or A-to-C

Instrument User Manual

Comprehensive user manual, in well written English

Quality Assurance Certificate

Optional accessories

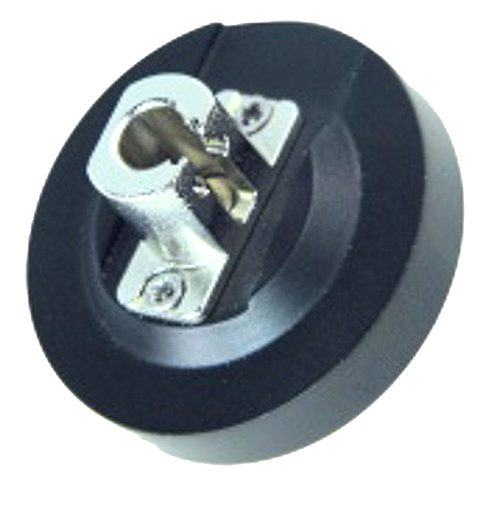

Fibersafe Scope Adapter / LC-APC OPT661A

LC APC

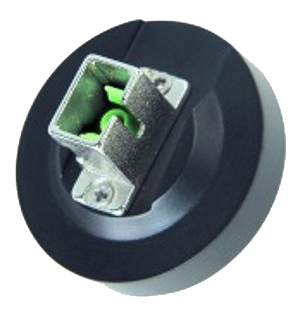

Fibersafe Scope Adapter / SC-APC OPT662A

SC APC

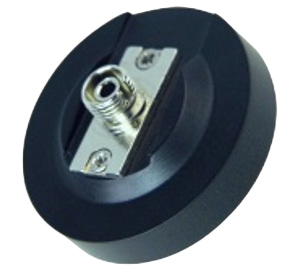

Fibersafe Scope Adapter / FC-APC OPT663A

FC APC

Fibersafe Scope Adapter / 2.5 mm Universal OPT681

Universal 2.5 mm, PC, simplex / duplex, & terminus for ruggedised connectors

Fibersafe Scope Adapter / 2.5 mm APC Universal OPT681A

Universal 2.5 mm, APC, Simplex / Duplex, and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

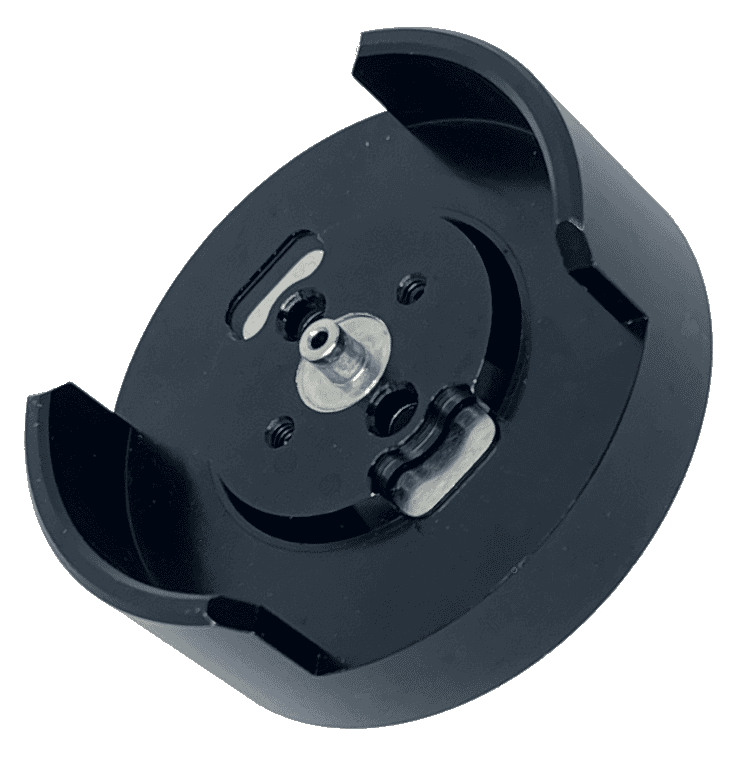

Fibersafe Scope Adapter / 1.25 mm Universal OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

Fibersafe Scope Adapter / 1.25 mm APC Universal OPT682A

Universal 1.25 mm, APC, Simplex / Duplex and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

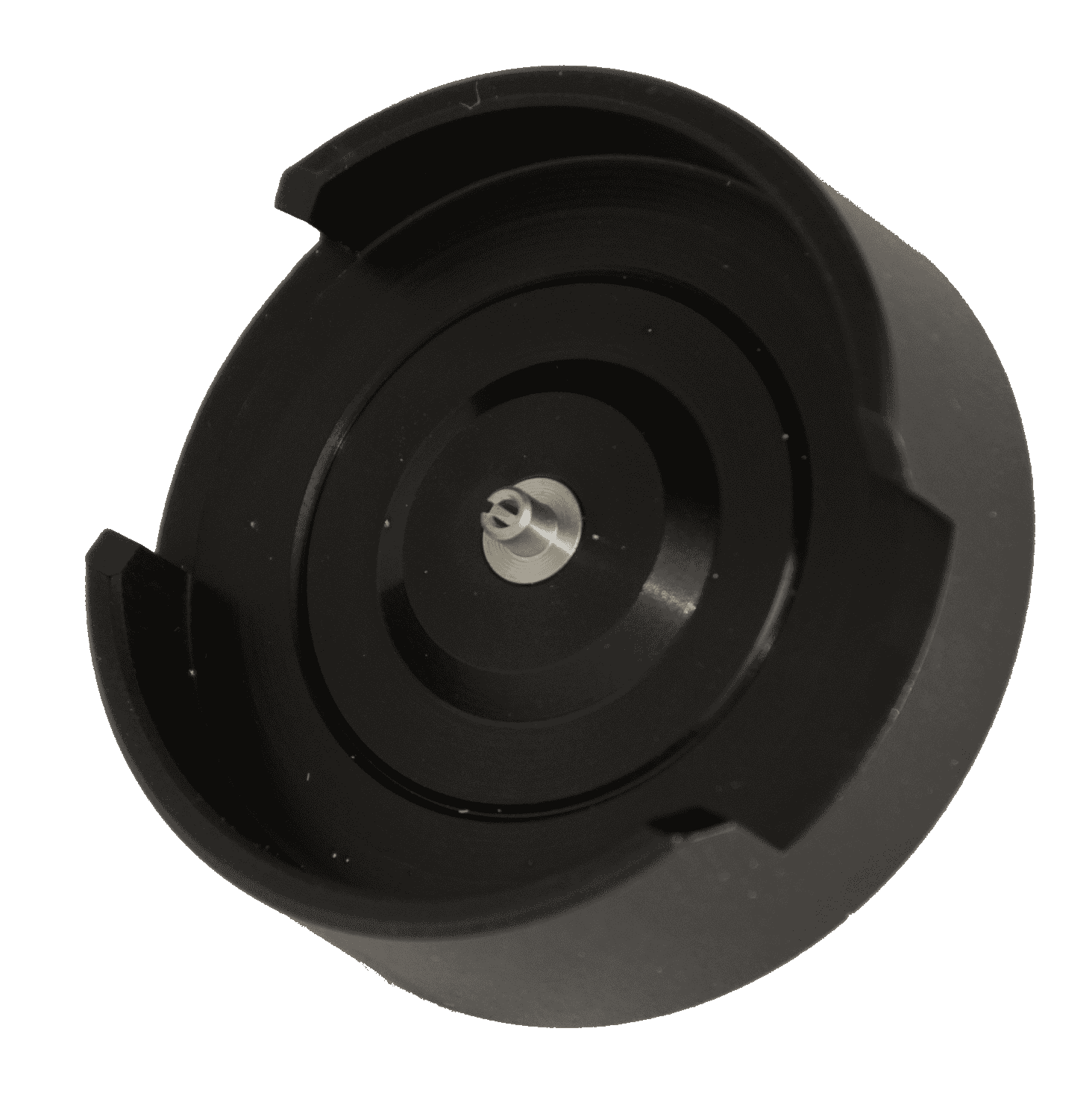

Fibersafe Scope Adapter / 1.6 mm Terminus OPT672

Universal 1.6 mm for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

Fibersafe Scope Adapter / 1.6 mm APC Terminus OPT672A

Universal 1.6 mm APC for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

Fibersafe Scope Adapter / 2 mm Terminus OPT685

Universal 2.0 mm terminus

Fibersafe Scope Adapter / 2 mm APC Terminus OPT685A

Universal 2.0 mm APC terminus

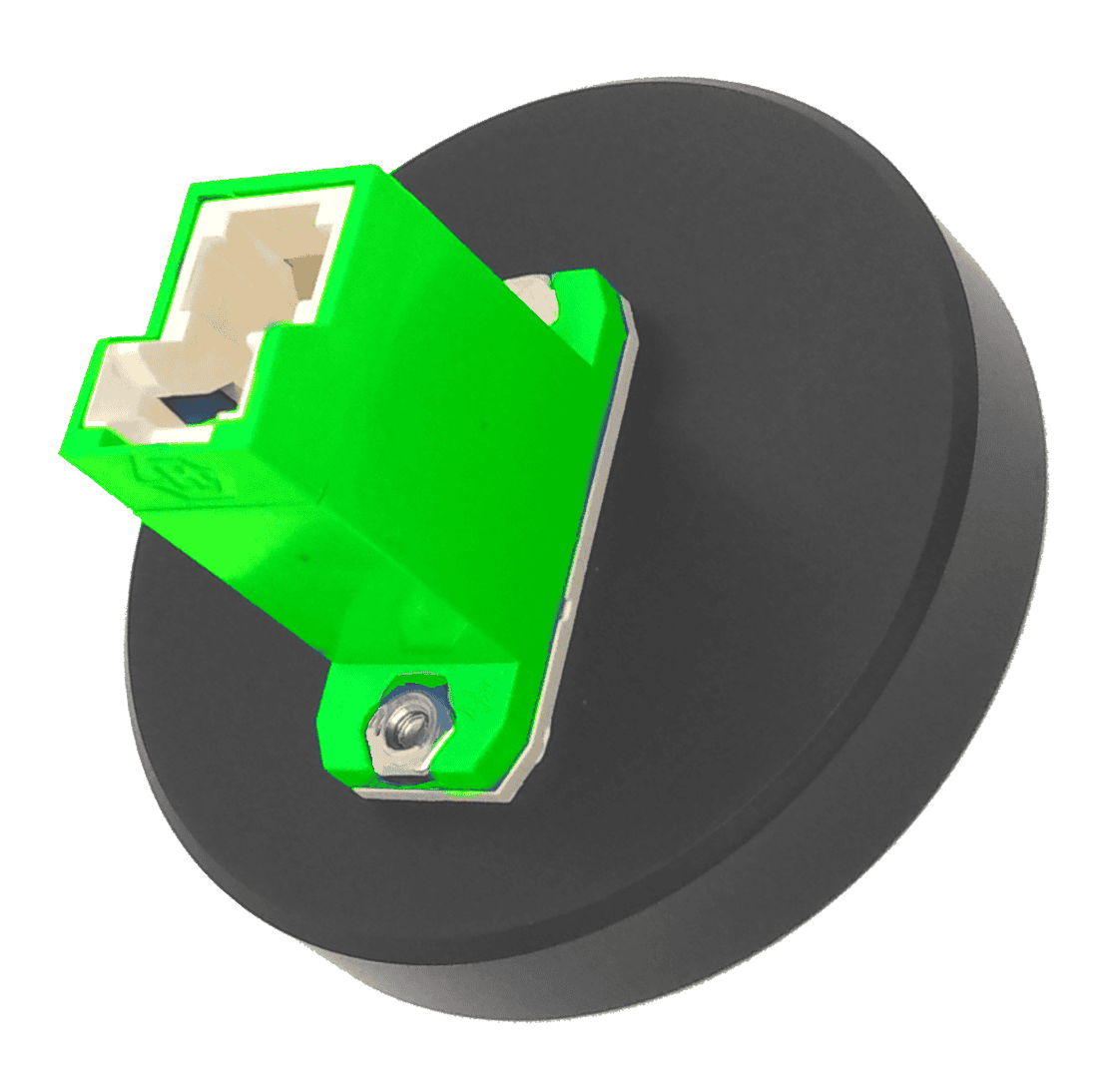

Fibersafe Scope Adapter / E2000-APC OPT668A

E2000 APC

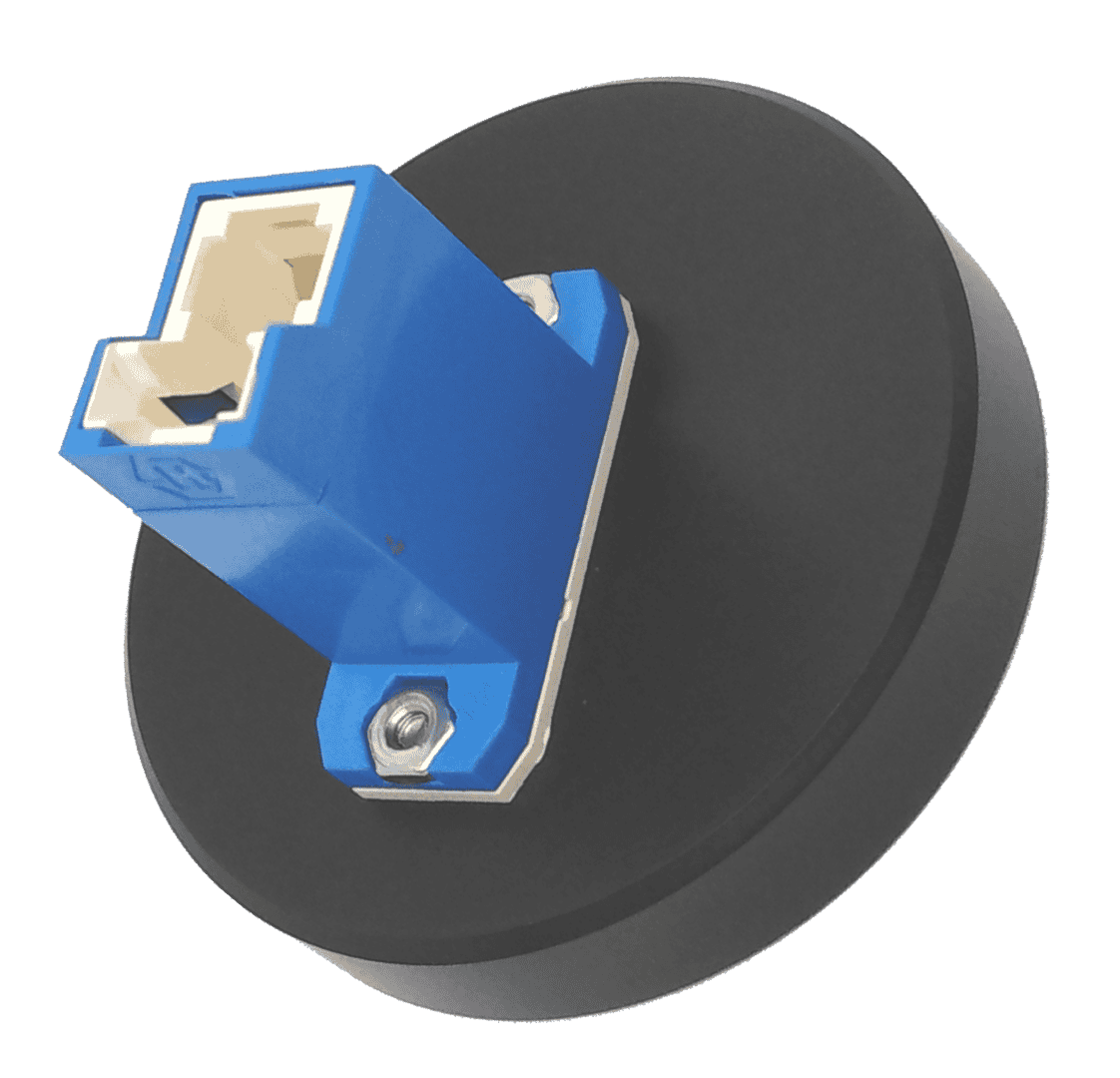

Fibersafe Scope Adapter / E2000 OPT670

E2000

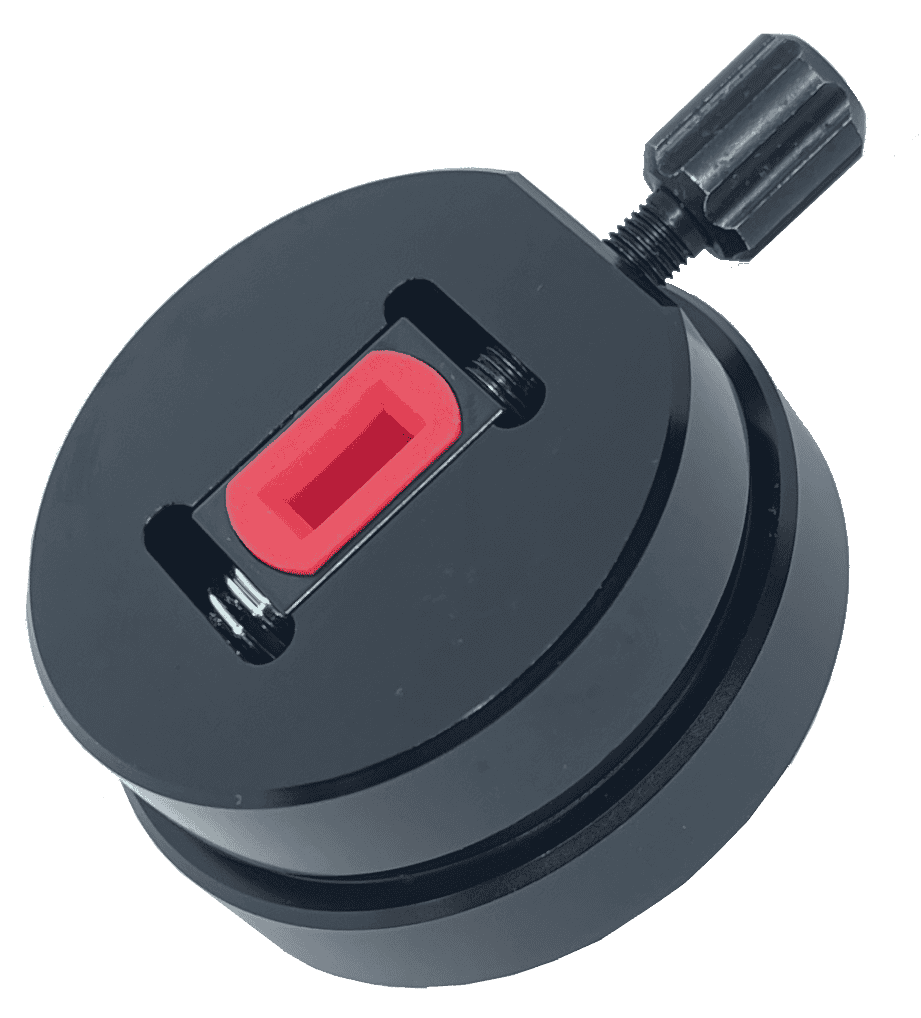

Fibersafe Scope Adapter / MT Ferrule OPT673

Incorporates traversing knob

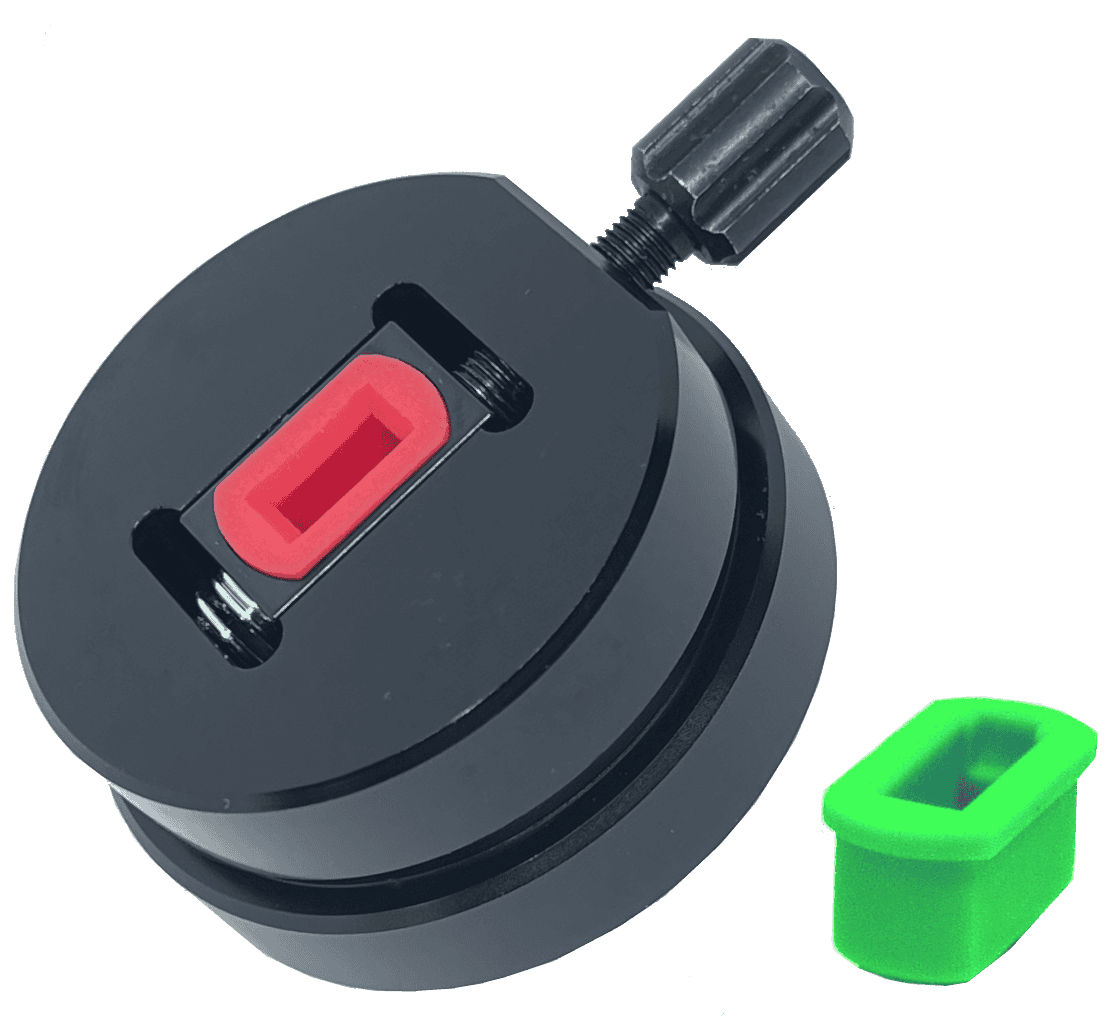

Fibersafe Scope Adapter / MMC Connector or MT-APC Ferrule OPT687A

Incorporates traversing knob

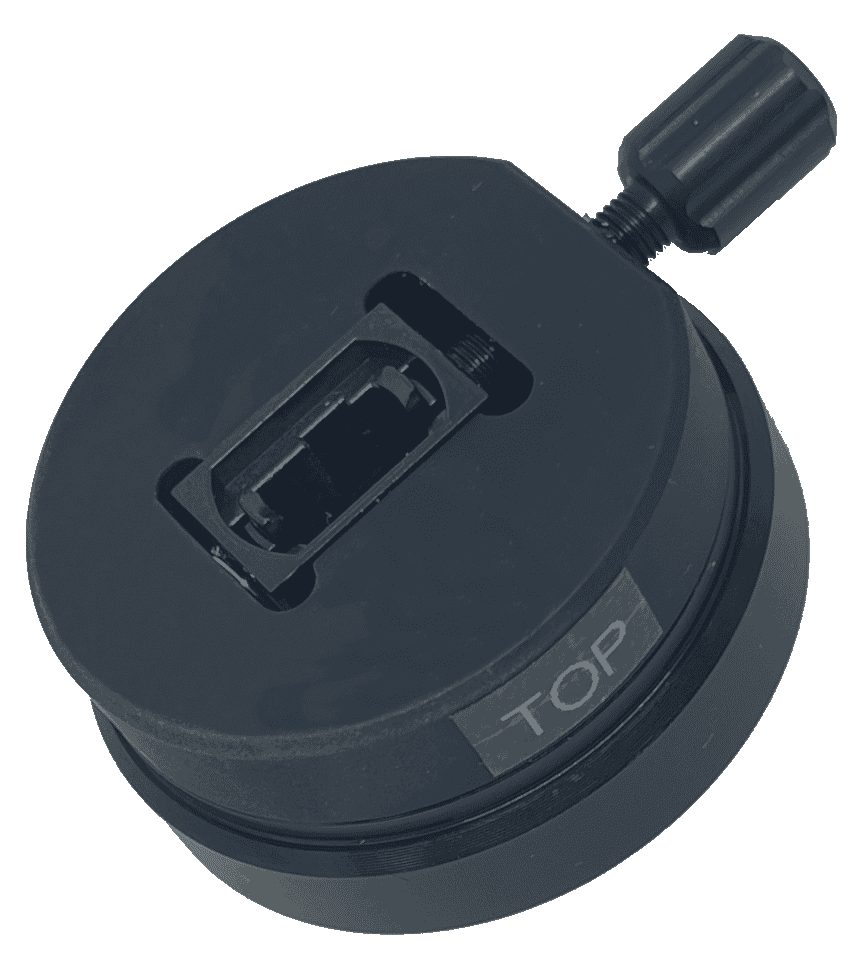

Fibersafe Scope Adapter / MPO 16 32 OPT674

MPO 16 x n style. Incorporates traversing knob

Fibersafe Scope Adapter / MPO 16 32 APC OPT674A

MPO 16 x n style APC. Incorporates traversing knob

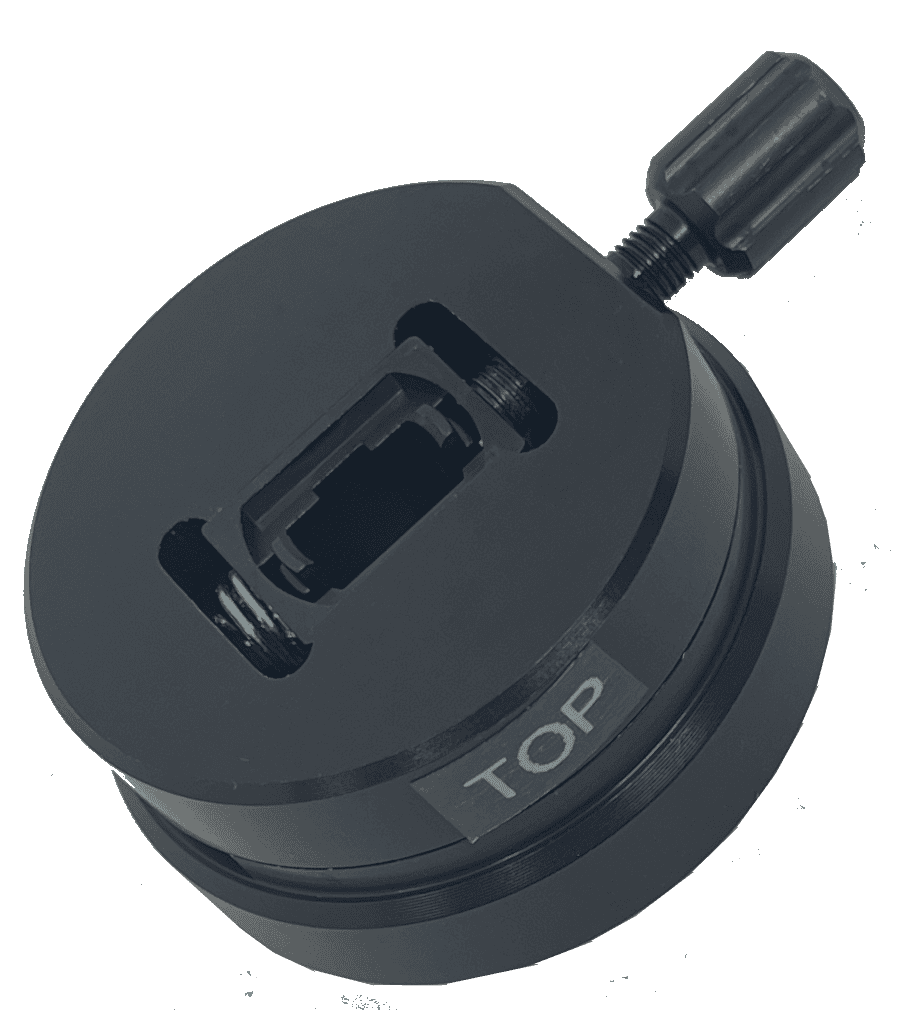

Fibersafe Scope Adapter / MPO 12 24 OPT677

MPO 12 x n style. Incorporates traversing knob

Fibersafe Scope Adapter / MPO 12 24 APC OPT678

MPO 12 x n style APC. Incorporates traversing knob

Fibersafe Scope Adaptor / SMA OPT679

SMA (not for x400 scope)

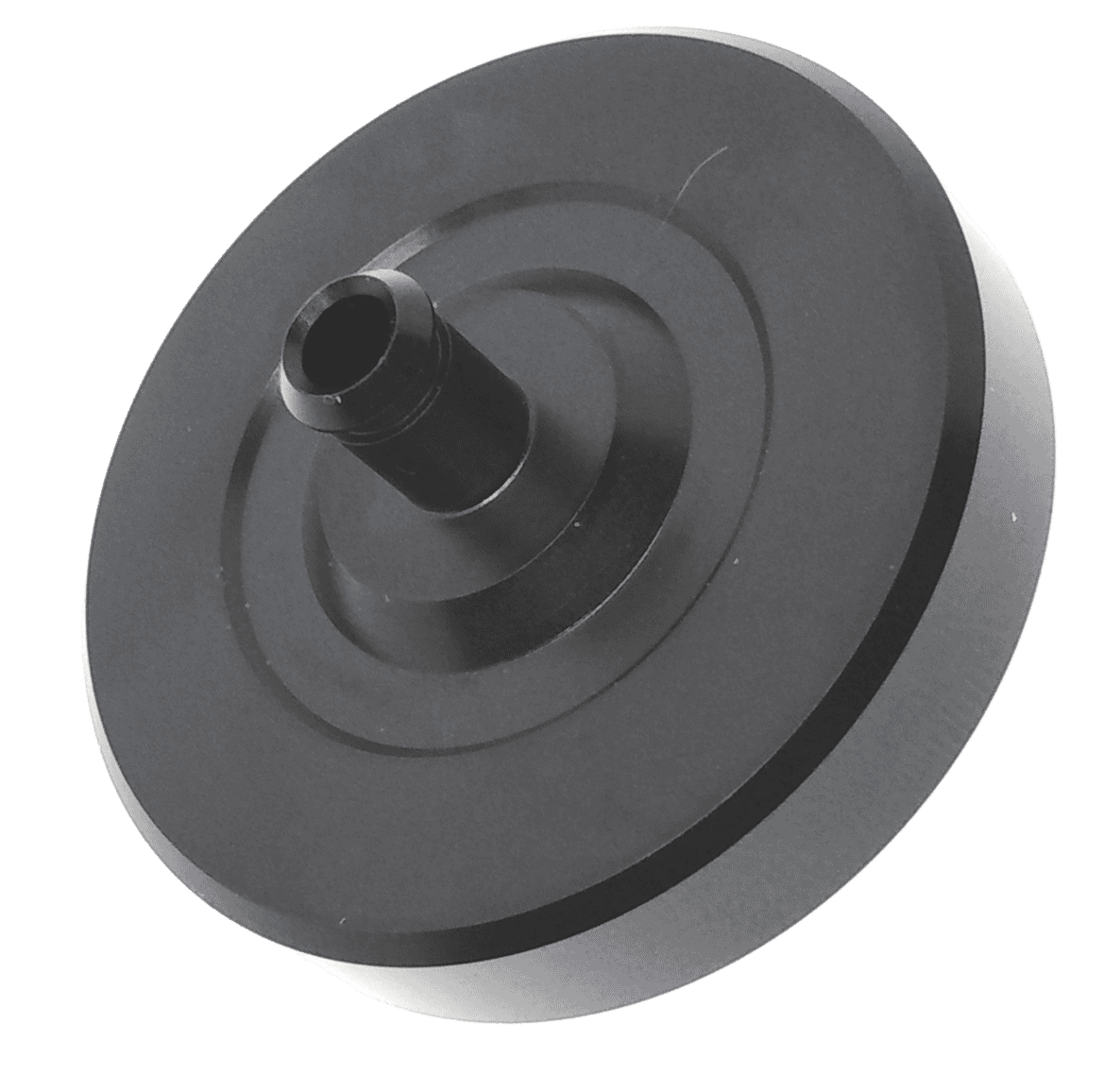

Fibersafe Scope Adapter / HFBR OPT667

HFBR

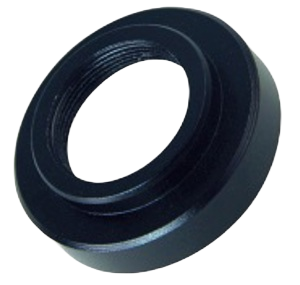

Fibersafe Scope Adapter / FMA Adapter Ring OPT683

Adapter Ring for JDSU FMA series adapters, 7/8" 28 TPI

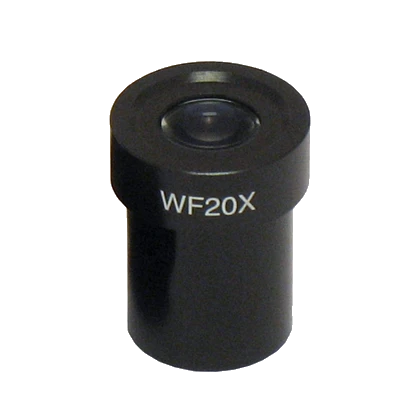

x20 Eyepiece for Microscope OPT691

Optional eyepiece for KI6600 series microscope. Converts KI6608 to x80 magnification. 23.2 mm scope mounting diameter.

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

Fiber Optic Cleaner, MPO Stick-Type TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

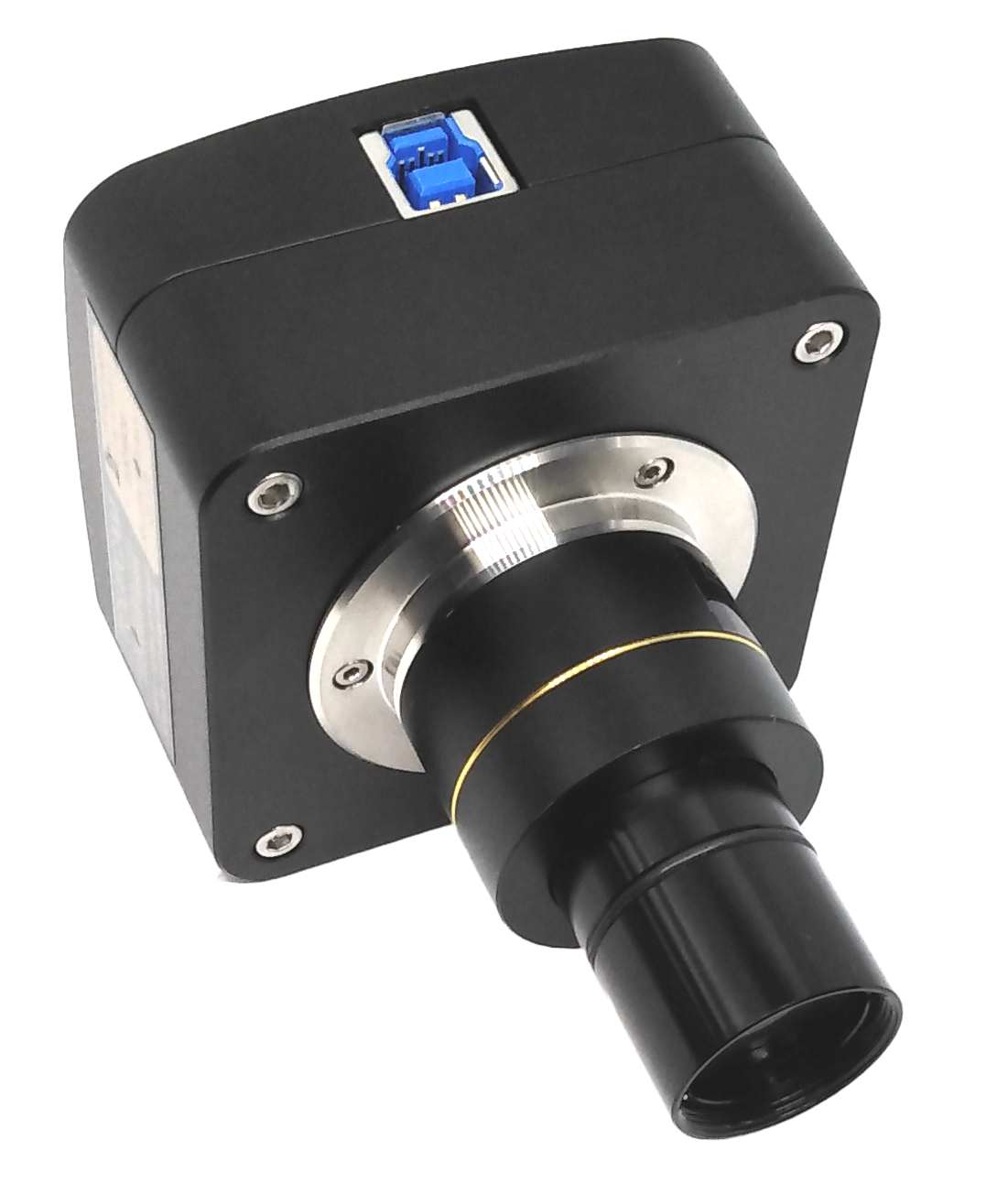

Video Camera for Fibersafe Microscope OPT684A

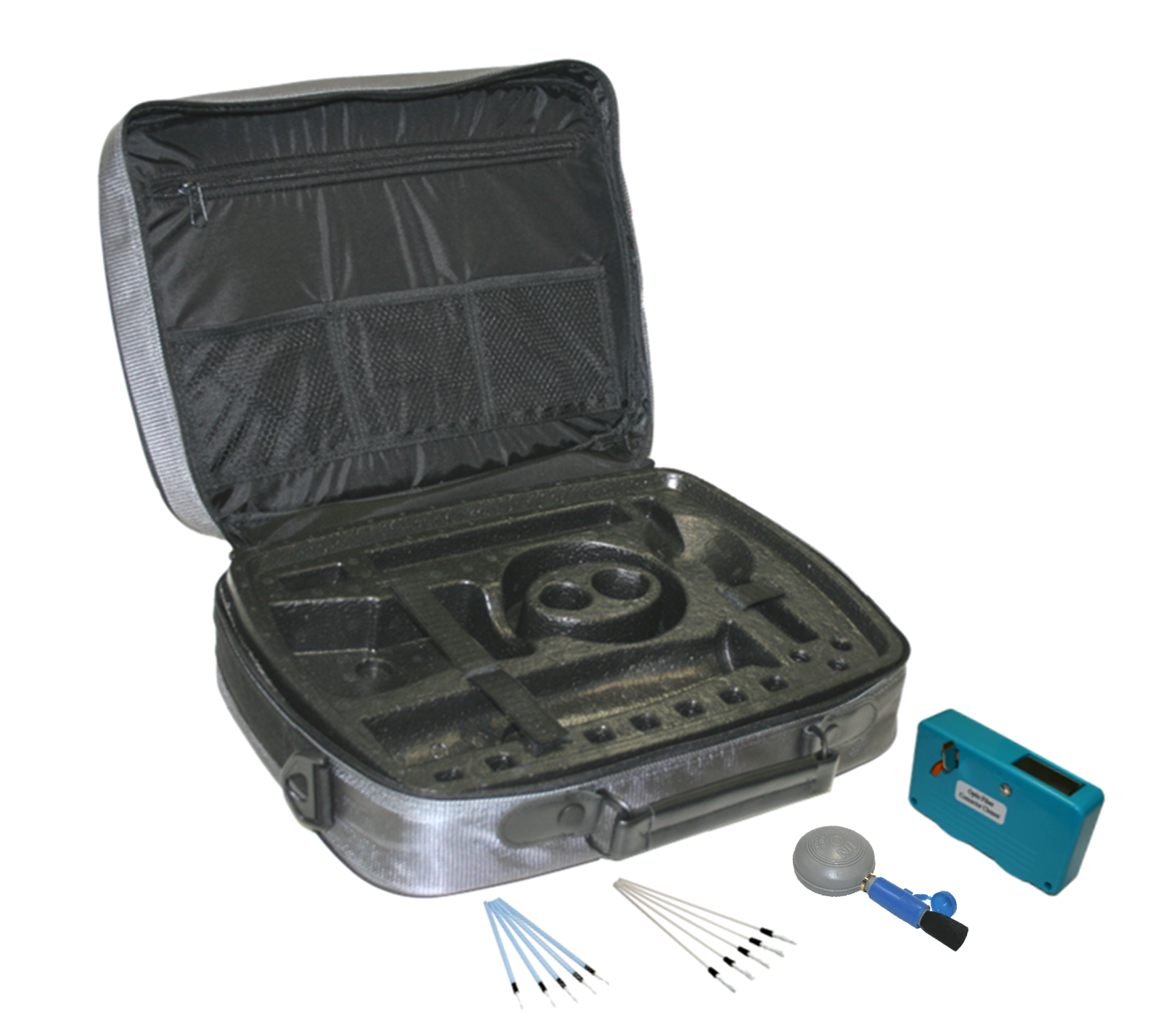

Carry Case & Accessories for Test Kits, Semi-Rigid OPT155

Semi-rigid canvas test kit case for three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

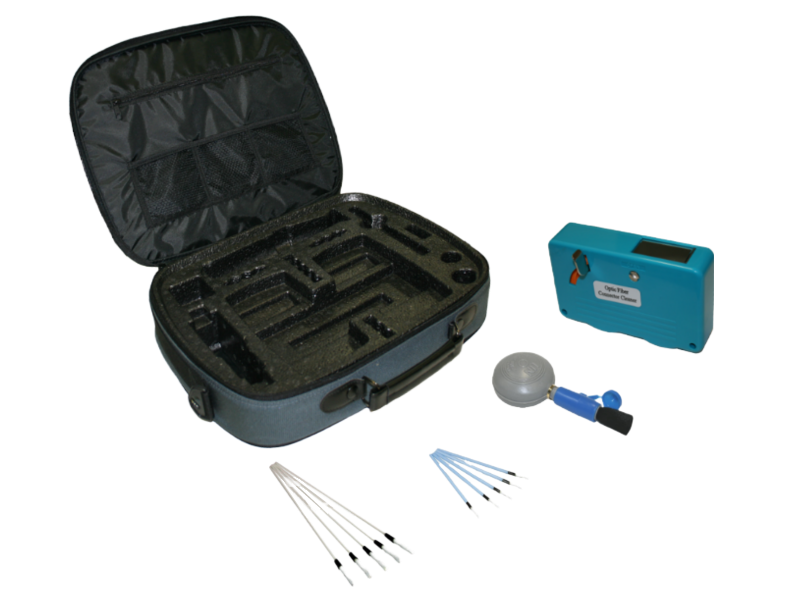

Carry Case & Accessories for Test Kits, Semi-Rigid OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.
