Overview

The perfect tool for checking un-mated fiber optic connectors for dirt, end face quality and patch lead continuity. High quality construction & helpful features will improve the performance of all technical staff in portable or desktop applications. x200 magnification combined with excellent resolving power, is ideal for typical single mode and multimode pass/fail fiber inspection, since if a feature is large enough to see, then it is large enough to matter, which minimizes training.

  • Best image quality & ease of use
  • 200x magnification for SM, MM, MPO
  • Optional alternative eyepiece for x100 magnification, option OPT690.
  • Greatly improved eye safety: Class 3B laser eye safety
  • Range of Fiber connector adapters
  • Easy focus & image centring
  • Long alkaline battery life or external power
  • Video capture option
  • Stabilized illumination with timer
  • Lanyard and tripod mounts
  • Coaxial, oblique or core illumination
  • QA report with ISO 9001 traceable eye safety test

Key Features

Specifications

KI6610 specifications
Optical magnification x200

Resolving power 0.615 µm

Max viewable area diameter 1 mm

General FiberSafe Microscope KI 6610 Series specifications
Max eye safety input limit (IEC60825-2 Ed.3.1) 20 dBm (@ 635 ~ 800 nm) / 30 dBm (@ 800 ~1650 nm)

Illumination modes Coaxial, oblique, core

Damage level 30 dBm

Power Battery / External power via USB

Battery 1x AAA (LR03) Alkaline

Battery life 300 hours (coaxial illumination for KI6608 & KI6610) / 75 hours (coaxial illumination for KI6611)

Auto off When powered by battery

Size 184.4 mm x 49.3 mm

Unit weight 0.21 kg

Shipping weight 1.5 kg

Illuminating LED's life 100,000 hours

Operating / storage temperature -15 to 55°C / -25 to 70°C

Eyepiece Mount 23.2 mm diameter push-in (standard mount)

Fiber Adaptor Mount 1-1/2" UN 28 TPI 2A Thread

Relative humidity 95%

Warranty 3 years


Documentation & Support

Applications

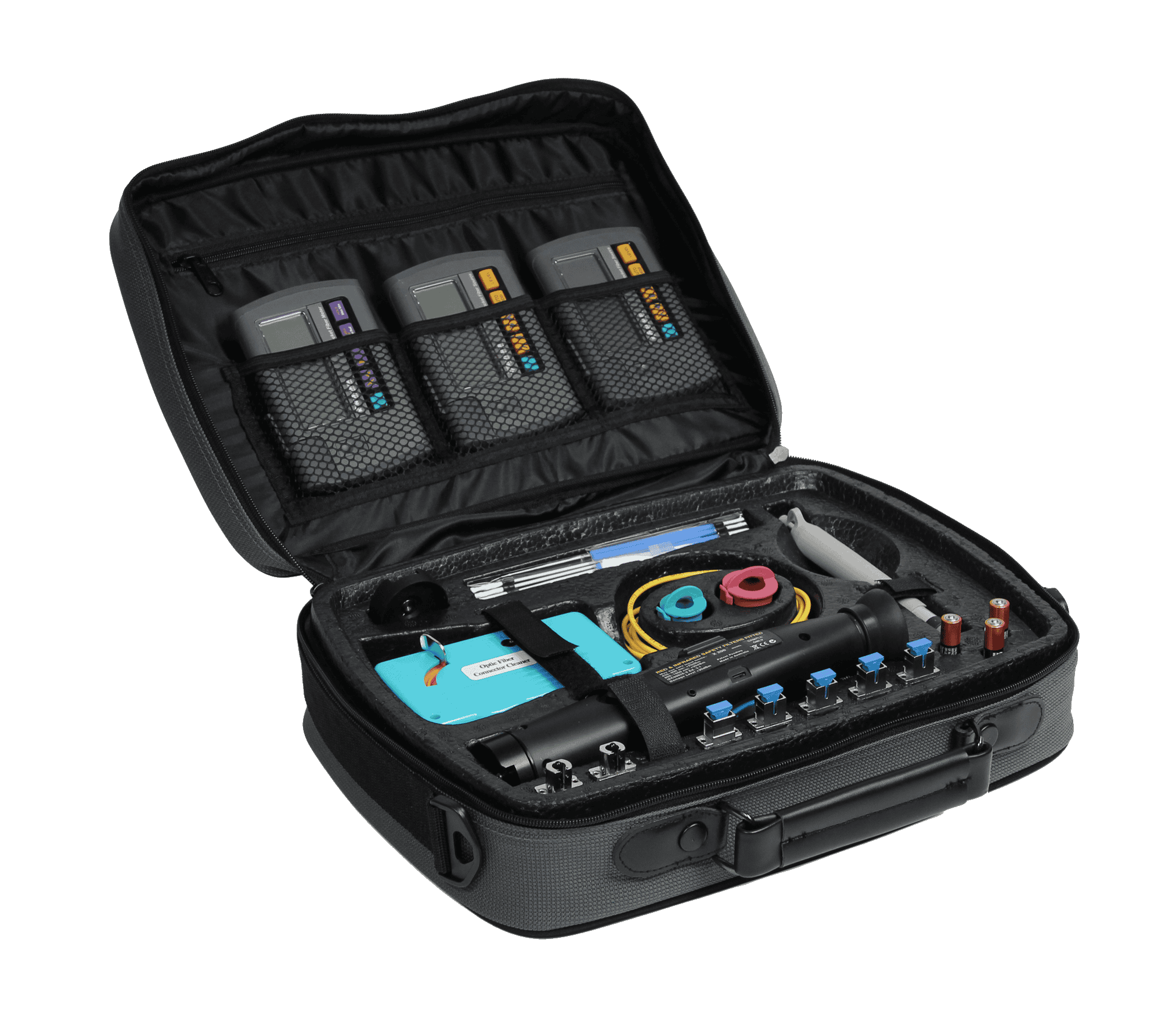

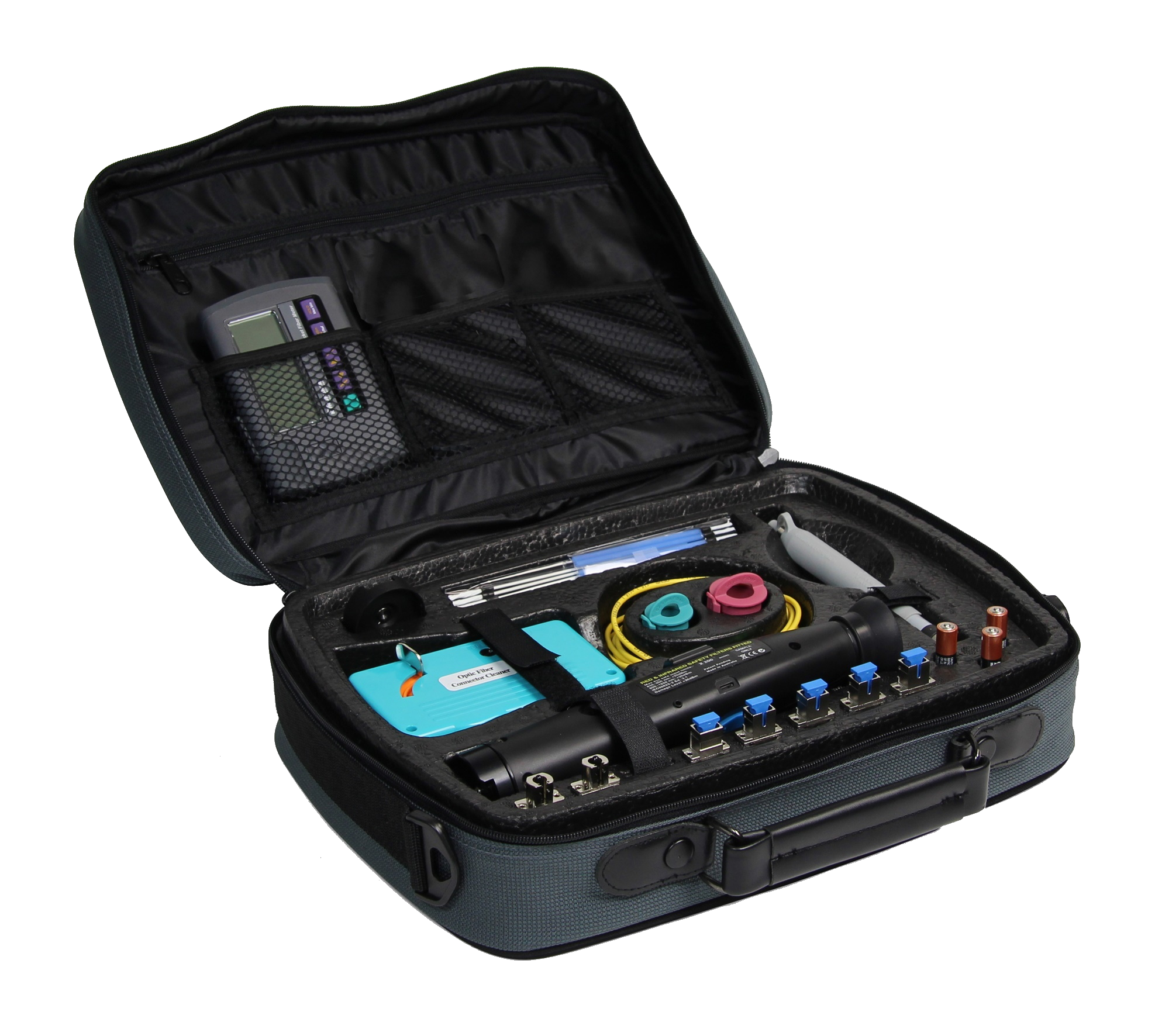

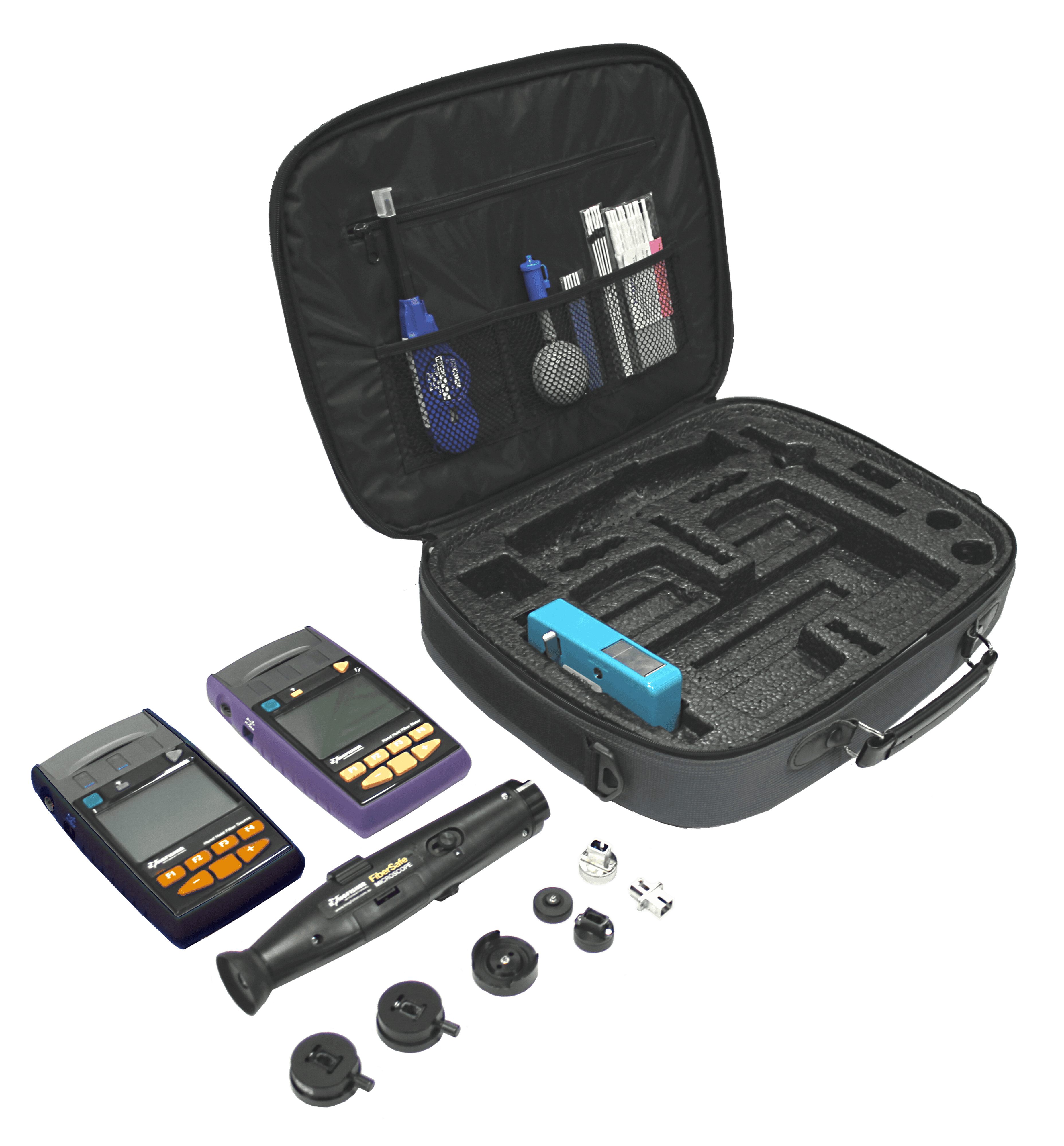

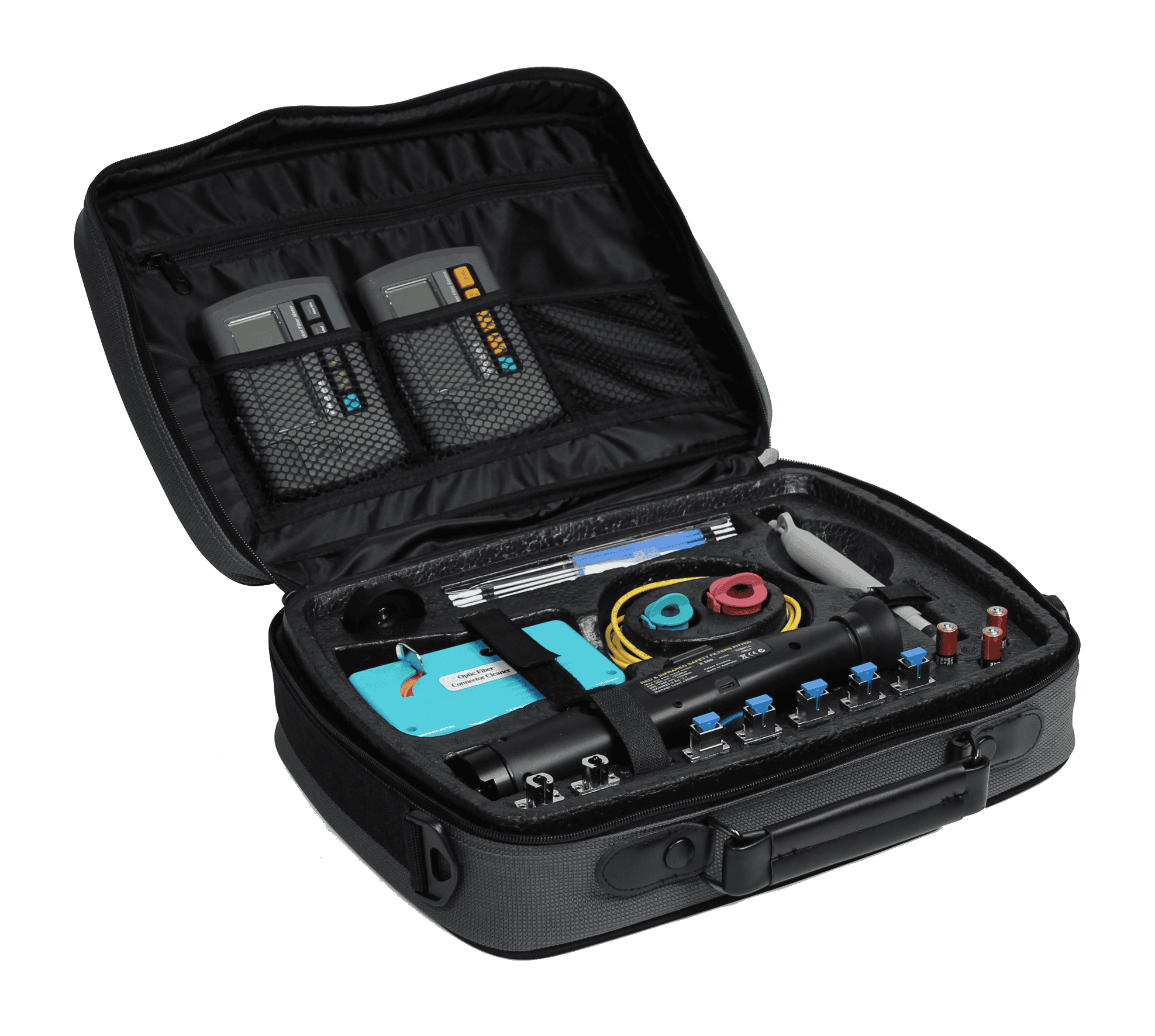

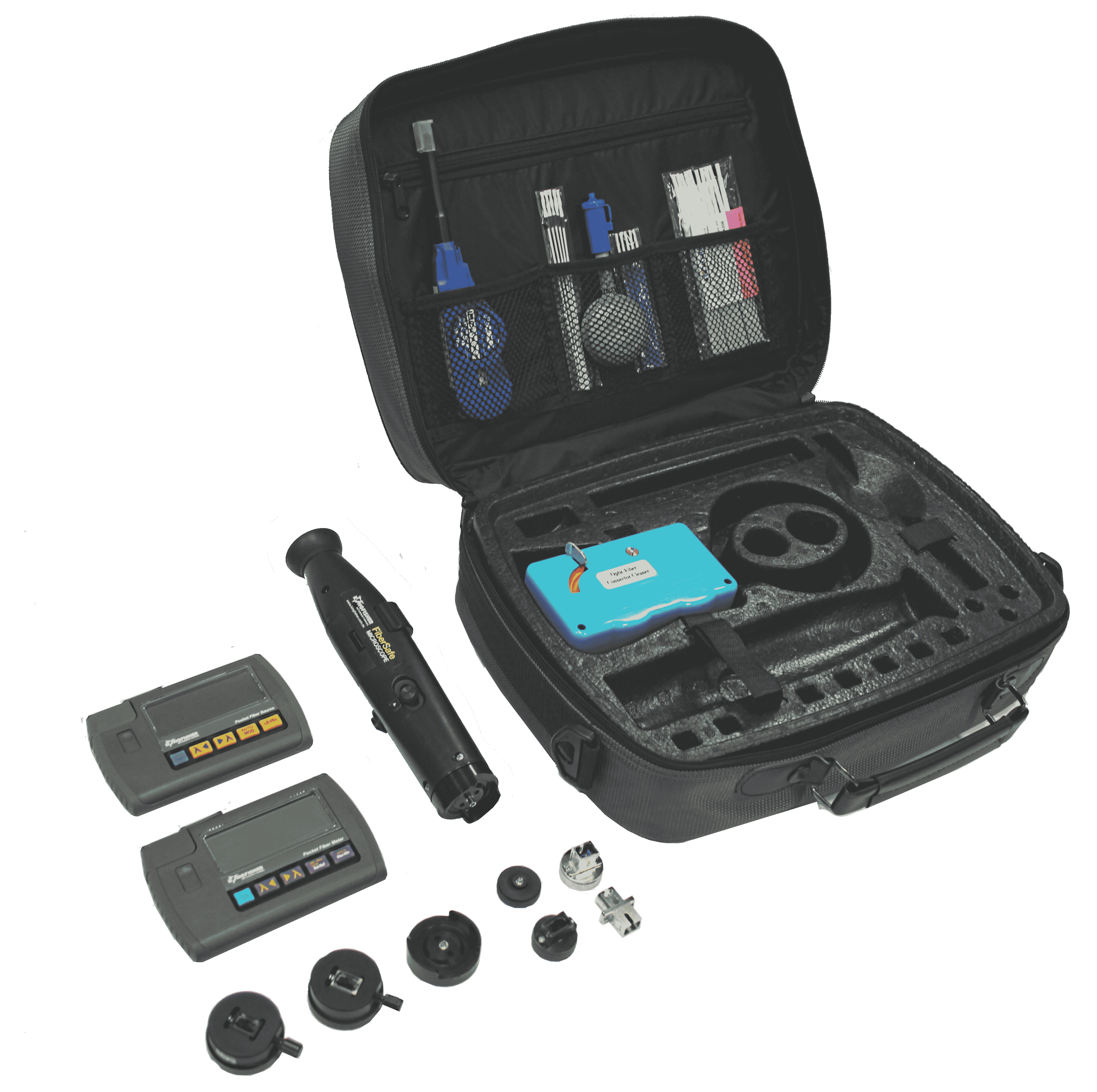

This product is included in the following test kits

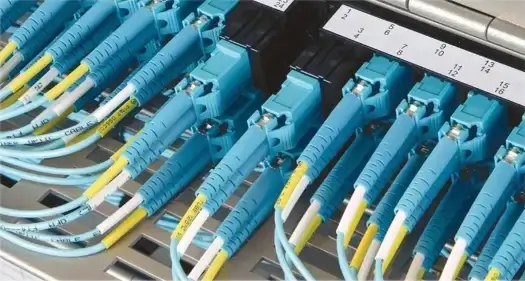

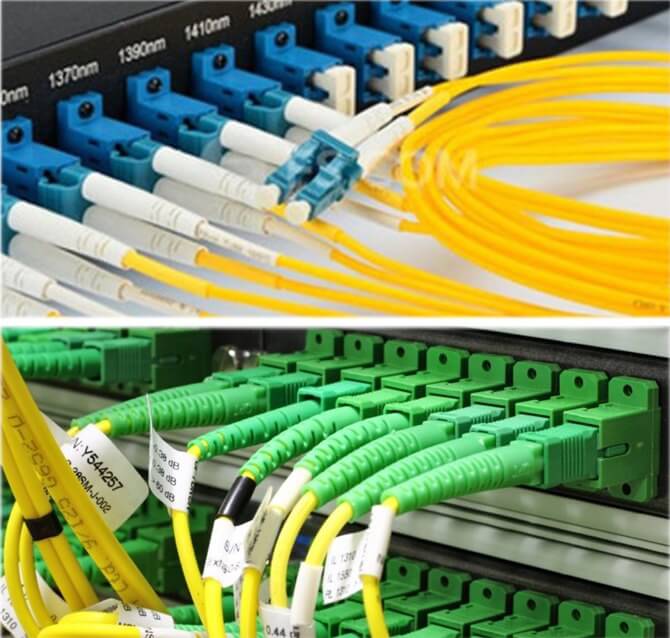

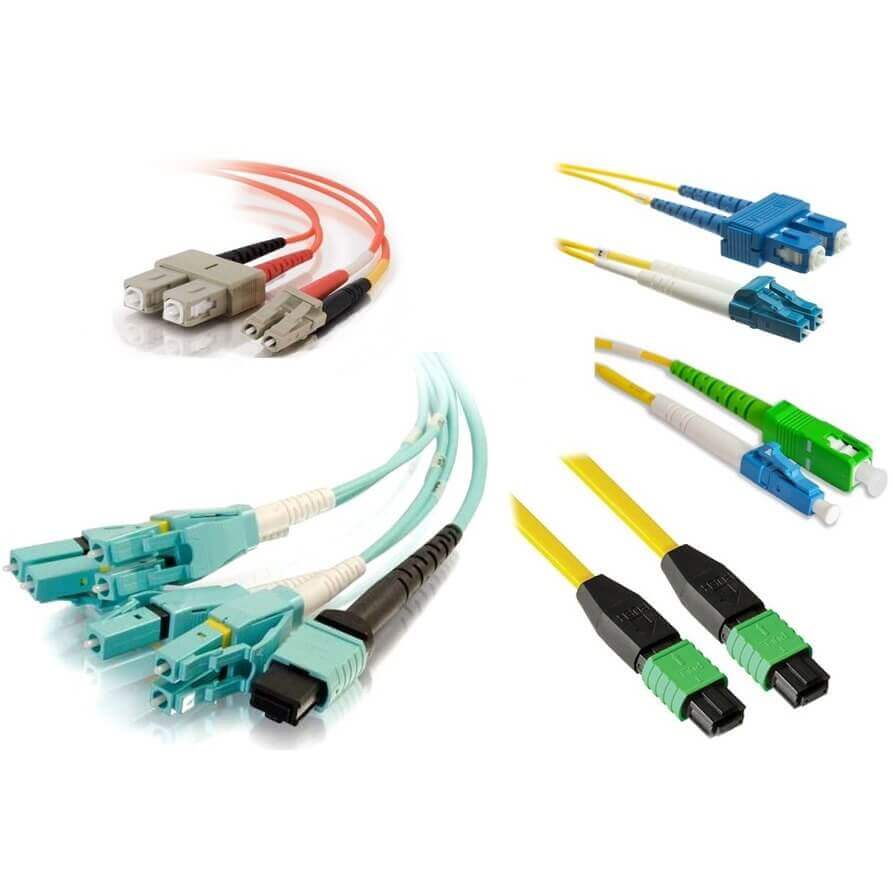

Recommended for these applications

In the box

OPT157

Canvas Pouch for KI6610 Series Microscopes OPT157

Soft pouch with carry straps for KI66xx series microscopes.

OPT681

2.5 mm Universal Connector Adapter for KI6610 Series Microscope. OPT681

Universal 2.5 mm, PC, simplex / duplex, & terminus for ruggedised connectors

Optional accessories

OPT154B

Semi-Rigid Carry Case for Test Kits OPT154B

Content: 1x Case (OPT154B-CASE) (suitable for 2x KI2000 series instrument, 1x Microscope, 1x VFL, Accessories); 5x 2.5mm Fiber Conn Cleaning Sticks; 5x 1.25mm Fiber Conn Cleaning Sticks; 1x Blower Brush (TOOL CLEAN-01A); 1x Fiber Conn Cleaning Cartridge(TOOL CLEAN-09A).

USD $425.54

In stock
Add to Cart
OPT155

Semi-Rigid Carry Case for Test Kits OPT155

Content: 1x Case (suitable for 3x KI9000 series instrument, 1x Microscope, 1x VFL, Accessories); 5x 2.5mm Fiber Conn Cleaning Sticks; 5x 1.25mm Fiber Conn Cleaning Sticks; 1x Fiber Conn Cleaning Cartridge (TOOL CLEAN-09A); 1x Blower Brush (TOOL CLEAN-01A).

USD $474.42

In stock
Add to Cart
OPT672

1.6 mm Terminus Connector Adapter for KI6610 Series Microscope. OPT672

Universal 1.6 mm for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

USD $297.77

In stock
Add to Cart
OPT672A

1.6 mm APC Terminus Connector Adapter for KI6610 Series Microscope. OPT672A

Universal 1.6 mm APC for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus

USD $297.79

Add to Cart
OPT674

MPO 16 32 Connector Adapter for KI6610 Series Microscope. OPT674

MPO 16 x n style. Incorporates traversing knob

USD $289.18

In stock
Add to Cart
OPT674A

MPO 16 32 APC Connector Adapter for KI6610 Series Microscope. OPT674A

MPO 16 x n style APC. Incorporates traversing knob

USD $317.34

Add to Cart
OPT677

MPO 12 24 Connector Adapter for KI6610 Series Microscope. OPT677

MPO 12 x n style. Incorporates traversing knob

USD $286.88

In stock
Add to Cart
OPT678

MPO 12 24 APC Connector Adapter for KI6610 Series Microscope. OPT678

MPO 12 x n style APC. Incorporates traversing knob

USD $313.46

In stock
Add to Cart
OPT681A

2.5 mm APC Universal Connector Adapter for KI6610 Series Microscope. OPT681A

Universal 2.5 mm, APC, Simplex / Duplex, and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

USD $100.43

Add to Cart
OPT682

1.25 mm Universal Connector Adapter for KI6610 Series Microscope. OPT682

Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors

USD $86.45

In stock
Add to Cart
OPT682A

1.25 mm APC Universal Connector Adapter for KI6610 Series Microscope. OPT682A

Universal 1.25 mm, APC, Simplex / Duplex and terminus for ruggedised connectors. For regular use, a connector specific adapter is preferred

USD $103.07

In stock
Add to Cart
OPT683

FMA Adapter Ring for KI6610 Series Microscope. OPT683

Adapter Ring for JDSU FMA series adapters, 7/8" 28 TPI

USD $15.40

In stock
Add to Cart

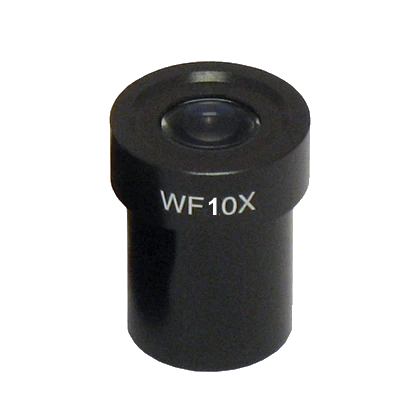

OPT690

x10 Microscope Eyepiece, OPT690

Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification. 23.2 mm scope mounting diameter

USD $27.15

In stock
Add to Cart
