Overview

This inexpensive MMC or MPO Power Meter is a simple and reliable optical power meter with a 7 x 3 mm Ge detector for testing power and loss on multi-fiber ribbon cable up to +10 dBm. Ideal for MMC or MPO 12 - 72 fiber up to 16 fibers wide, SM & MM, and LC/ SC etc fiber optic systems. It provides high accuracy and simplicity of use. For all current / proposed versions of fiber optic Ethernet and InfiniBand.

  • 12 calibration λ, ±2% accuracy, ISO/IEC 17025 traceable
  • Accommodates MMC / MPO 12 x n, 16 x n fiber ribbon connectors
  • Small size, easy to use, rugged & reliable
  • dBm / dB / linear, 0.01 dB resolution
  • Display hold & max/min recording
  • Tone detector with Multi-Fiber ID
  • Easy to use TamperLock mode
  • Interchangeable optical connectors
  • Full QA reports



Key Features

Specifications

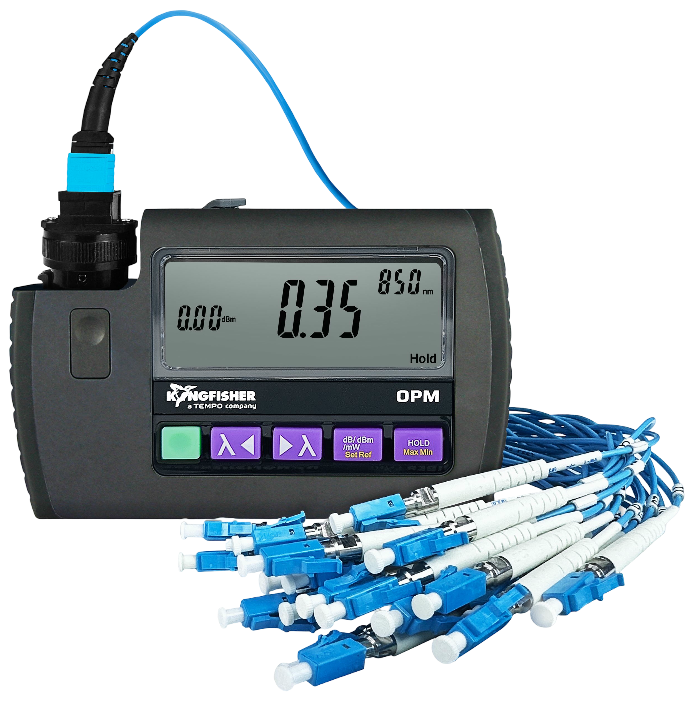

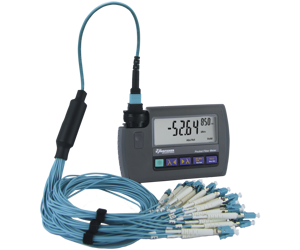

KI9600XL-GE7 specifications
Detector type Ge (7 mm)

Response wavelength 600 ~ 1650 nm

Calibration wavelengths 660, 780, 850, 1300, 1310, 1390, 1490, 1550, 1610, 1625 nm

Power range +10 ~ -30 dBm (for 660,780,1610,1625 nm) / +10 ~ -40 dBm (for 850,1300,1310,1390,1490,1550 nm)

Mid-range linearity 0.06 dB (typical)

Response uniformity across detector 2 % (0.09 dB)

Wavelength sensitivity (± 30 nm) 0.2 dB (typical)

ID tone detection sensitivity -30 dBm (typical)

Country of Origin Australia

Shipping Weight 500 g

General Pocket Power Meter KI 9600A Series specifications
Calibration accuracy ±2 % (0.09 dB)

Calibration validity 3 Years (ISO/IEC 17025)

Resolution 0.01 dB

Polarization sensitivity < 0.05 dB (typical)

Tone detection 200 ~ 2500 Hz ± 2 %

Power 2 x AAA (LR-03) Alkaline

Battery life 300 Hours

Auto-off Selectable

Size 124 x 81 x 25 mm

Unit weight 0.15 kg

Shipping weight 0.5 kg

Operating / storage temperatures -15 to 55 / -25 to 70 °C

Relative humidity 0 ~ 95 %

Warranty 3 Years

IP Rating IP52


Documentation & Support

Applications

In the box

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector For both MM & SM fiber.

MPO Connector Adapter - XL Power Meter, OPT228

MTP™ / MPO 16 x n style with offset key. For XL power meters with 7 mm detector only. For both MM & SM fiber.

Canvas Pouch for KI9000 Series Instruments OPT156

Soft pouch for two KI9000 series instruments. With carry straps and compartments for accessories storage.

Optional accessories

OPT226A

LC Connector Adapter - XL Power Meter, OPT226A

LC Simplex. For duplex LC use OPT224

OPT224

1.25 mm Universal Connector Adapter - XL Power Meter, OPT224

1.25 mm Universal. Also fits duplex LC

OPT225

2.5 mm Universal Connector Adapter - XL Power Meter, OPT225

2.5 mm Universal. Also fits duplex SC

OPT200

Senko CS Connector Adapter - XL Power Meter, OPT200

Duplex adapter. For optical power meters fitted with XL-Ge7 detector

OPT205
OPT227

MPO Connector Adapter - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector For both MM & SM fiber.

OPT233
OPT228

MPO Connector Adapter - XL Power Meter, OPT228

MTP™ / MPO 16 x n style with offset key. For XL power meters with 7 mm detector only. For both MM & SM fiber.

OPT153-CASE

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Semi-rigid canvas test kit case for two KI2000 or KI7000 series instruments, and three KI9000 series instruments. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

OPT154B

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

OPT401

MPO/MTP Classic Reel Cleaner OPT401

A classic MPO end-face cleaner for both mated and unmated connectors.

TOOL CLEAN-05A

Stick-Type, MPO Connector Cleaner TOOL CLEAN-05A

To clean MPO end face, particularly around the alignment pins.

OPT155

Semi-Rigid Carry Case for Test Kits OPT155

Semi-rigid canvas test kit case for three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

TOOL CLEAN-09A

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

TOOL CLEAN-03

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

TOOL CLEAN-04

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc
