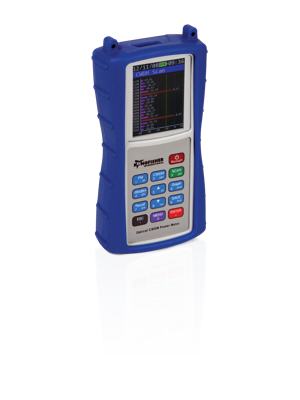

An easy and economical handheld CWDM Power Meter for testing multi-λ single mode fiber optic systems.

It scans and stores absolute power or loss of all 18 CWDM λ in 0.8 seconds, with results viewed in graphical or numerical form,

  • Compact, rugged & light weight
  • Easy to use
  • Fast scan of 18 calibrated λ
  • Large, sunlight readable, backlit display
  • Simultaneous 9 λ loss display
  • Tabular and graphical display modes
  • Internal memory for 100 18-λ tests
  • Programmable auto shut off
  • Power / data transfer via mini USB port
  • 1 year warranty
  • Full QA report

Key Features

Specifications

General CWDM Channel Power Meter KI 6501 specifications
Calibrated λ 1270,1290, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470,1490, 1510, 1530, 1550, 1570, 1590, 1610 nm

Number of channels 18

Channel spacing 20 nm

Measurement speed < 0.8 sec

Power range -40 ~ 10 dBm

Accuracy 0.5 dB (max)

Damaged level +27 dBm (composition of 18 λ)

Fiber type Single Mode

Optical connector type SC/PC

Display 2.8” Colour LCD with backlight

Show result dBm, dB

Resolution 0.01 dB

Memory 1000 records of 18-λ tests

Data software connect via mini-USB

Battery Built-in Li-Polymer Battery (3.7v, 1800 mAH) rechargeable via USB

Battery charging time 180 min (max)

Battery life 7 hours

Auto off Programmable (5 ~ 600 mins)

Operate / storage temperature -10 ~ 50 °C / -20 ~ 55 °C

Relative humidity ~90% @ 0 ~ 40°C

Unit size 155 mm x 78 mm x 34 mm

Unit weight 0.35 kg

Shipping weight 0.75 kg

Calibration validity 3 years

Warranty 1 year
