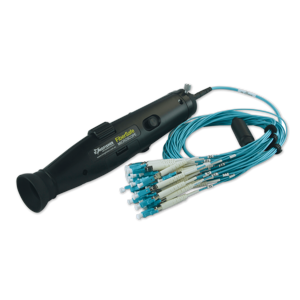

FiberSafe Fiber Optic Inspection Microscope KI6608

The Kingfisher FiberSafe Microscope is the tool of choice for checking unmated fiber optic connectors for dirt, end face quality and patch lead continuity. High quality construction & helpful features will improve the performance of all technical staff in portable or desktop applications. 40x magnification is ideal for inspecting POF and MPO/ MT ferrule full end-face.

  • Best image quality & ease of use
  • Greatly improved eye safety: Class 3B laser eye safety
  • Range of fiber connector adapters
  • Easy focus & image centering
  • Long alkaline battery life or external power
  • Video capture option
  • Stabilized illumination with timer
  • Lanyard and tripod mounts
  • Coaxial, oblique or core illumination
  • QA report with ISO 9001 traceable eye safety test


KI6608 specifications

Optical magnification 40x
Resolving power 3.10 µm
Max viewable area diameter 5 mm

Not what you're looking for? Look for a more suitable part number, or submit a quote request with your technical requirements.

General KI 6610 FiberSafe Microscope specifications

Max eye safety input limit (IEC60825-2 Ed.3.1) 20 dBm (@ 635 ~ 800 nm) / 30 dBm (@ 800 ~1650 nm)
Illumination modes Coaxial, oblique, core
Damage level 30 dBm
Power Battery / External power via USB
Battery 1x AAA (LR03) Alkaline
Battery life 300 hours (coaxial illumination for KI6608 & KI6610) / 75 hours (coaxial illumination for KI6611)
Auto off When powered by battery
Size 184.4 mm x 49.3 mm
Unit weight 0.21 kg
Shipping weight 1.5 kg
Illuminating LED's life 100,000 hours
Operating / storage temperature -15 to 55°C / -25 to 70°C
Relative humidity 95%
Warranty 3 years

In the box

OPT681

2.5 mm Universal Adaptor for KI66xx Microscope OPT681

Universal 2.5 mm, PC, Simplex / Duplex, and terminus for ruggedised connectors
USD $70.71 In stock Add to Enquiry
OPT157

Canvas Pouch for KI6610 Series Microscopes OPT157

Soft pouch with carry straps for KI66xx series microscopes.
USD $37.65 In stock Add to Enquiry
USB Cable (Micro)

USB Cable (Micro)

(POA)
User Manual Booklet

Instrument User Manual

(POA)
QA Certificate (ISO9001)

Quality Assurance Certificate

(POA)
Wrist Strap (KI)

Wrist Strap / Lanyard for KI Products

(POA)

Optional accessories

OPT684

Video Image Capture Camera OPT684

1.3 Mpixel camera with USB connection. For all models of FiberSafe Microscope. This unit has some very nice software and requires MS Windows to install the drivers.
USD $186.24 In stock Add to Enquiry

More Accessories...
