Overview

A simple and reliable optical power meter for testing power and loss on high power fiber optic systems up to +24 dBm. It provides high accuracy and simplicity of use. An advanced netral density filter design offers improved accuracy for this type of instrument, and use of an InGaAs detector provides better accuracy and response flatness for DWDM systems up to 1650 nm.

  • 9 calibration λ, ±2% accuracy, ISO 17025 traceable
  • Small size, easy to use, rugged & reliable
  • dBm / dB / linear, 0.01 dB resolution
  • Display hold & max/min recording
  • Tone detector with Multi-Fiber ID
  • Easy to use TamperLock mode
  • Interchangeable connectors
  • Full QA reports

Key Features

Specifications

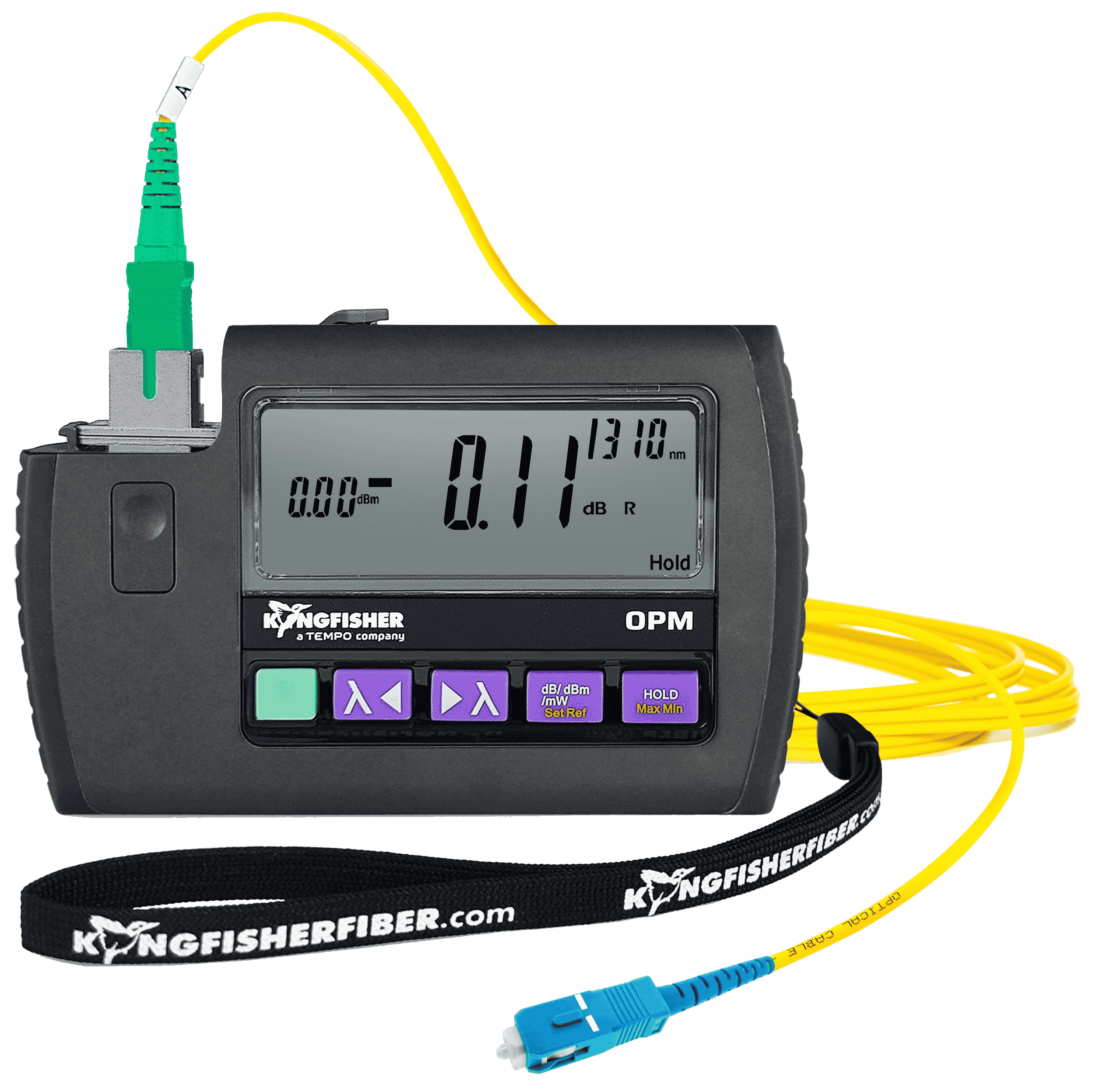

KI9600A-H3B specifications
Detector type InGaAs High Power

Response wavelength 800 ~ 1700 nm

Calibrated wavelengths 850, 1300, 1310, 1390, 1490, 1550, 1590, 1610, 1625

Power range +24 ~ -40 dBm

Mid-range linearity 0.04 dB (typical)

Total uncertainty 0.3 dB (max)

Wavelength sensitivity (± 30 nm) 0.03 dB (typical)

ID tone detection sensitivity up -30 dBm

General Pocket Power Meter KI 9600A Series specifications
Accuracy ±2 %

Calibration validity 3 Years (ISO17025)

Resolution 0.01 dB

Polarization sensitivity < 0.05 dB (typical)

Tone detection 200 ~ 2500 Hz ± 2 %

Power 2 x AAA (LR-03) Alkaline

Battery life 300 Hours

Auto-off Selectable

Size 124 x 81 x 25 mm

Unit weight 0.15 kg

Shipping weight 0.5 kg

Operating / storage temperatures -15 to 55 / -25 to 70 °C

Relative humidity 0 ~ 95 %

Warranty 3 Years


Documentation & Support

Applications

In the box

OPT156

Canvas Pouch for KI9000 Series Instruments OPT156

Soft pouch with carry straps and compartments for accessories storage, able to carry 2x KI9000 series instruments.

Optional accessories

OPT076

LC Hybrid Connector Adapter OPT076

LC Simplex, metal body.

USD $47.69

Add to Cart
OPT051

FC Hybrid Connector Adaptor OPT051

FC. OPT081 is preferred for power meters, since FC ceramic sleeves break easily.

USD $18.48

Add to Cart
OPT081

2.5 mm Universal Hybrid Connector Adapter OPT081

Universal 2.5 mm, including Duplex SC. Please observe application advice.

USD $87.52

Add to Cart
OPT084

1.25 mm Universal Hybrid Connector Adapter OPT084

Universal 1.25 mm, including simplex LC. Please observe application advice.

USD $132.61

Add to Cart
OPT085

1.25 mm Universal Hybrid Connector Adaptor OPT085

Universal 1.25 mm. Also fits: Duplex LC, Senko CS, SN duplex, and USconec MDC duplex connectors. Please observe application advice.

USD $152.81

Add to Cart
OPT072

LC / F3000 Hybrid Connector Adapter OPT072

For F3000 PC Simplex. This is an LC-PC adpater that also fits F3000. For LC-PC only use, OPT076 is better value and more robust.

USD $222.88

Add to Cart
OPT155

Semi-Rigid Carry Case for Test Kits OPT155

Content: 1x Case (suitable for 3x KI9000 series instrument, 1x Microscope, 1x VFL, Accessories); 5x 2.5mm Fiber Conn Cleaning Sticks; 5x 1.25mm Fiber Conn Cleaning Sticks; 1x Fiber Conn Cleaning Cartridge (TOOL CLEAN-09A).

USD $439.29

Add to Cart
OPT154B

Semi-Rigid Carry Case for Test Kits OPT154B

Content: 1x Case (OPT154B-CASE) (suitable for 2x KI2000 series instrument, 1x Microscope, 1x VFL, Accessories); 5x 2.5mm Fiber Conn Cleaning Sticks; 5x 1.25mm Fiber Conn Cleaning Sticks; 1x Blower Brush (TOOL CLEAN-01A); 1x Fiber Conn Cleaning Cartridge(TOOL CLEAN-09A).

USD $393.99

Add to Cart
