Overview

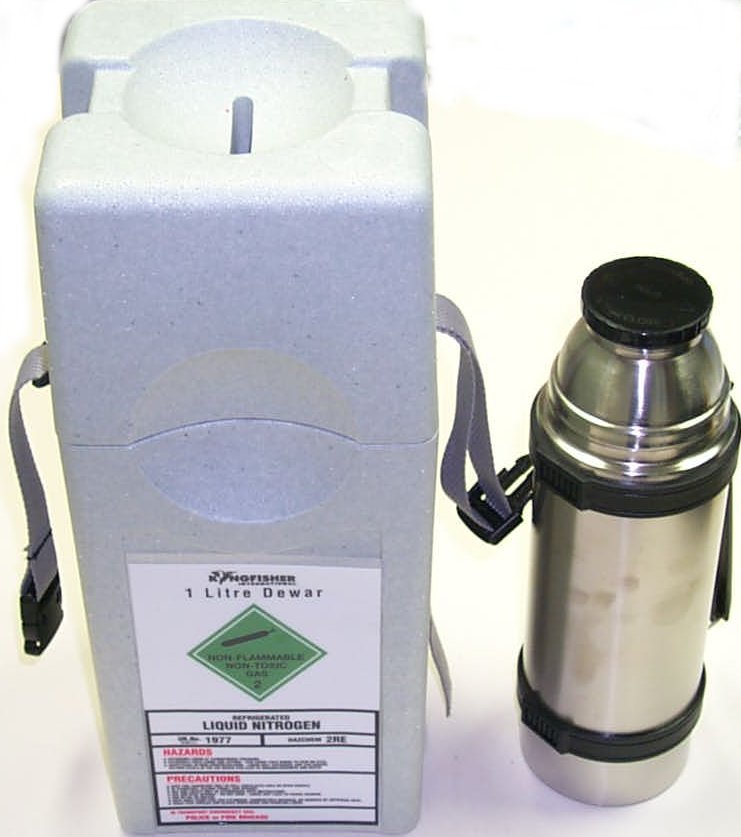

1-Litre flask and transit box (Liquid nitrogen transport container):

The inexpensive unit is suitable for use by trained personnel where they can pick up liquid nitrogen from a 10- litre Dewar at a depot, and use it the same day. This Dewar comes in a container that fits onto a vehicle's ‘jerry can’ holder.

Specifications

COLDCLAMP-5 specifications
Country of Origin Australia

Shipping Weight 4400 g

General Cold Clamp specifications
Weight Empty 6.1 kg, Full 14.1 kg

Maximum Cable Diameter 38 mm

Known Applicable Cable types Fiber optic cable, jelly filled with acrylate coated fiber, including armoured types.

Typical loss created by Cold Clamp 0.21 dB at 1300 & 1550 nm

Typical usage of liquid nitrogen 300 ml (15mm non-metallic cable)

Liquid nitrogen boiling Point 196 °C

10-Liter Dewar 45 days of boil dry time in static conditions


Documentation & Support

Cold Clamp Brochure Youtube Videos
Locating cable faults How far can a VFL go? More application notes...
Cold Clamp User Manual



Applications

Recommended for these applications
Single mode fiber

Single mode fiber

Fiber Optic Test equipment for high bandwidth or long distance telecommunications testing.
