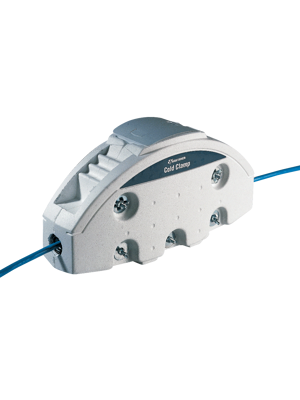

COLD CLAMP-2, Pack of 5 Cold Clamps
This is a pack of 5 Cold Clamps.
It is sometimes possible to use an individual Cold Clamp more than once, but they should be broadly treated as one-time use devices.
General Cold Clamp specifications
|Weight||Empty 6.1 kg, Full 14.1 kg|
|Maximum Cable Diameter||38 mm|
|Known Applicable Cable types||Fiber optic cable, jelly filled with acrylate coated fiber, including armored types.|
|Typical loss created by Cold Clamp||0.21 dB at 1300 & 1550 nm|
|Typical usage of liquid nitrogen||300 ml (15mm non-metallic cable)|
|Liquid nitrogen boiling Point||196 °C|
|10-Liter Dewar||45 days of boil dry time in static conditions|
