COLDCLAMP-5

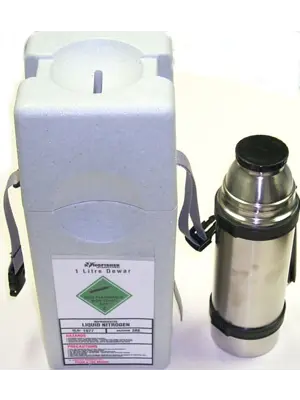

1-Liter Dewar and transit box (Liquid nitrogen transport container):

The inexpensive unit is suitable for use by trained personnel where they can pick up liquid nitrogen from a 10- liter Dewar at a depot, and use it the same day. This Dewar comes in a container that fits onto a vehicle's ‘jerry can’ holder.



General Cold Clamp specifications

Weight Empty 6.1 kg, Full 14.1 kg
Maximum Cable Diameter 38 mm
Known Applicable Cable types Fiber optic cable, jelly filled with acrylate coated fiber, including armored types.
Typical loss created by Cold Clamp 0.21 dB at 1300 & 1550 nm
Typical usage of liquid nitrogen 300 ml (15mm non-metallic cable)
Liquid nitrogen boiling Point 196 °C
10-Liter Dewar 45 days of boil dry time in static conditions
