KI 6503 DWDM Channel Power Meter

KI6503 is an easy and economical handheld DWDM power meter for testing multi-λ single mode fiber optic systems, using an ITU-CWDM compliant template.

It scans and stores the absolute power or loss of all 48 DWDM λ in 3 seconds, with results viewed in graphical or numerical form,

  • Compact, rugged & light weight
  • Easy to use
  • Fast scan of 48 calibrated λ
  • Large, sunlight readable, backlit display
  • Simultaneous 9 λ loss display
  • Tabular and graphical display modes
  • Internal memory for 300 48-λ tests
  • Programmable auto shut off
  • Power / data transfer via mini USB port
  • 1 year warranty
  • Full QA report


General KI 6503 DWDM Channel Power Meter specifications

Calibrated λ 1526.43 ~ 1563.86 nm
Number of channels 48
Channel spacing 0.8 nm
Measurement speed 3 sec (for all channels)
Power range 40 ~ 10 dBm
Accuracy ±1.0 @ -30 dBm
Damaged level +27 (composition of 48 λ)
Fiber type Single Mode
Optical connector type SC/PC
Display 2.8” Colour LCD with backlight
Show result dBm, dB
Resolution 0.01 dB
Memory 300 records of 48-λ tests
Data software Connect via USB-mini
Battery Built-in Li-Polymer Battery (3.7V, 1800mAH) rechargeable via USB
Battery charging time 180 min (max)
Battery life 7 hours
Auto off Programmable (5 ~ 600 min)
Operate / storage temperature -10 ~ 50 °C / -20 ~ 55 °C
Relative humidity 90% @ 0 ~ 40°C
Unit size 77.9 mm x 154.9 mm x 33.5 mm
Unit weight 0.33 kg
Shipping weight 0.75 kg
Calibration validity 3 years
Warranty 1 year

In the box

QA Certificate (ISO9001)

Standard accessories, QA certificate (ISO9001 compliant)

Quantity: 1
Part Number: QA Certificate (ISO9001 compliant)
(POA)
User Manual

Standard accessories, Instrument user manual

Alternatively, download from Kingfisher's website for free.
Part Number: User Manual
(POA)
Calibration Certificate (ISO9001)

Standard accessories, Calibration certificate (ISO9001 compliant)

Quantity: 1 set
Part Number: Calibration Certificate (ISO9001)
(POA)
USB Cable (Mini)

Standard accessories, USB cable A-to-Mini type

Quantity: 1
Part Number: USB Cable (Mini)
(POA)
CD

Standard accessories, Management software & user manual in CD

Alternatively, the manual and software can be downloaded from Kingfisher's website for free.
Part Number: CD
(POA)

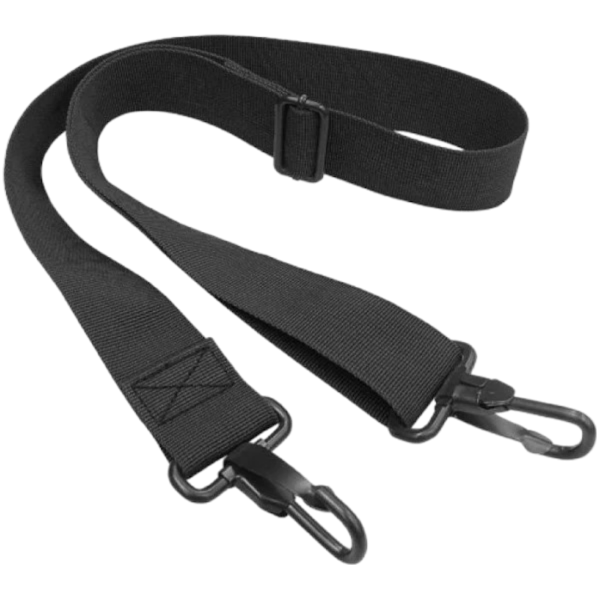

Carry Strap (Others)

Standard accessories, Carry strap for WDM meters

Quantity: 1
Part Number: Carry Strap (Others)
(POA)
