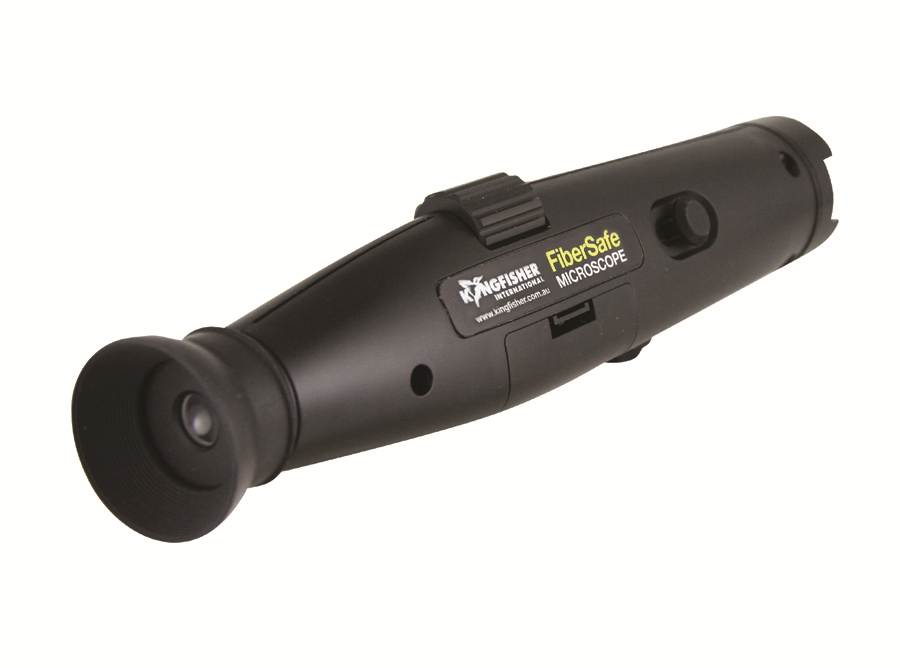

FiberSafe Optical Fiber Inspection Microscope Series
The Kingfisher FiberSafe Microscope is the fiber inspector of choice for checking unmated fiber optic connectors for dirt, end face quality and patch lead continuity. High quality construction & helpful features will improve the performance of all technical staff in portable or desktop applications.
- Best image quality & ease of use
- 200x, 400x, 40x for SM, MM, MPO & POF
- Eyepiece can be easily swapped for alternative magnifications including 80x
- Greatly improved eye safety: laser eye safe to Class 3B, ISO 167025-2: 2021
- Fiber connector adapters male LC/APC, SC/APC, FC/APC, ST, universal 1.25 & 2.5 mm, MPO/MTP SM & MM, MT Ferrule, E2000/APC, HFBR, SMA, ARINC 801
- Easy focus & image centering
- Long alkaline battery life or external power
- Video capture option
- Stabilized illumination with timer
- Lanyard and tripod mounts
- Coaxial, oblique or core illumination
- 3 year warranty
- Australian designed and made
- QA report with ISO 9001 traceable eye safety test
General KI 6610 FiberSafe Microscope specifications
For more detailed specifications, please select a specific part number from the parts & stock tab.
| Max eye safety input limit (IEC60825-2 Ed.3.1) | 20 dBm (@ 635 ~ 800 nm) / 30 dBm (@ 800 ~1650 nm) |
| Illumination modes | Coaxial, oblique, core |
| Damage level | 30 dBm |
| Power | Battery / External power via USB |
| Battery | 1x AAA (LR03) Alkaline |
| Battery life | 300 hours (coaxial illumination for KI6608 & KI6610) / 75 hours (coaxial illumination for KI6611) |
| Auto off | When powered by battery |
| Size | 184.4 mm x 49.3 mm |
| Unit weight | 0.21 kg |
| Shipping weight | 1.5 kg |
| Illuminating LED's life | 100,000 hours |
| Operating / storage temperature | -15 to 55°C / -25 to 70°C |
| Relative humidity | 95% |
| Warranty | 3 years |
In the box

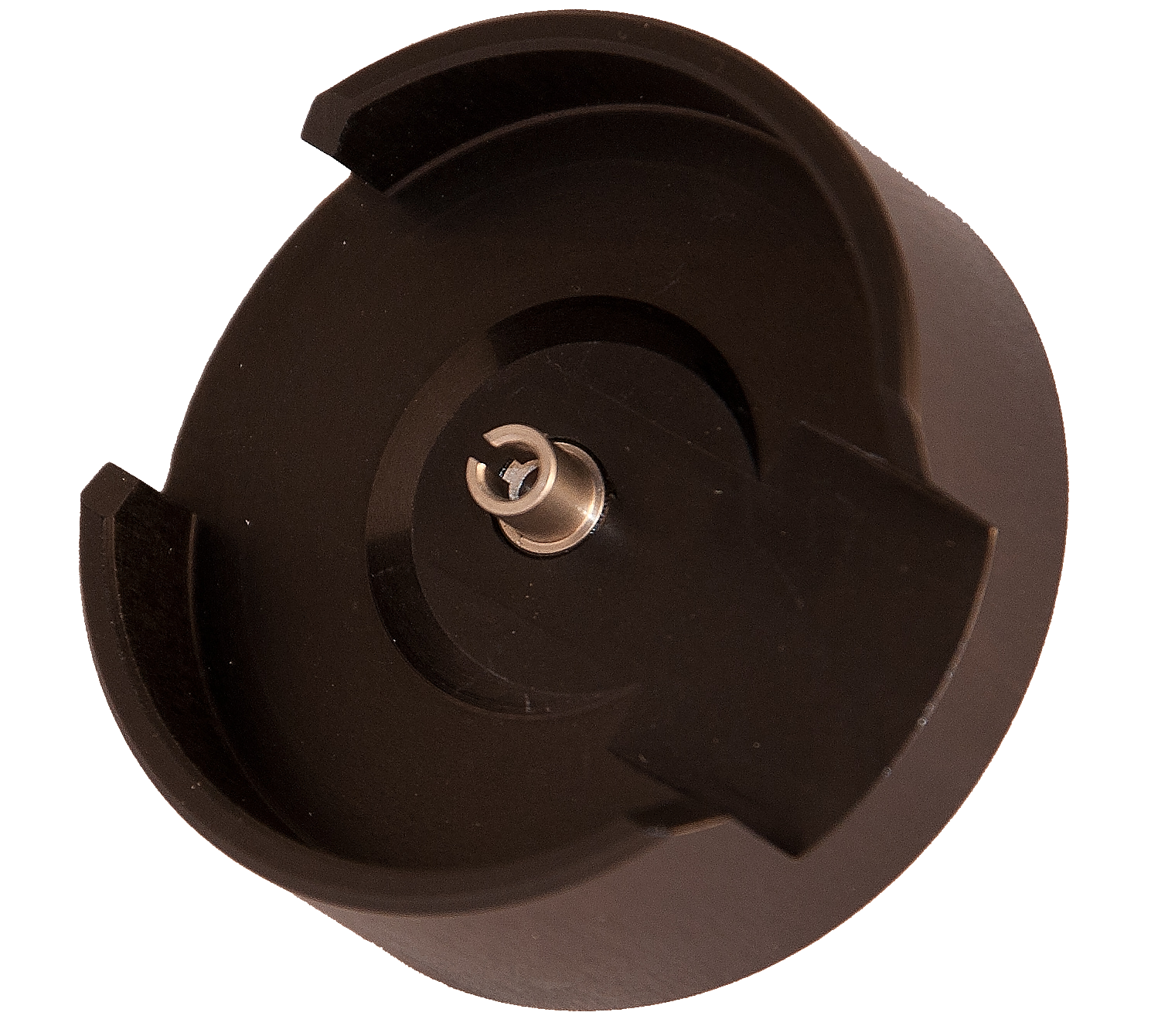

2.5 mm Universal Adaptor for KI66xx Microscope OPT681
Universal 2.5 mm, PC, Simplex / Duplex, and terminus for ruggedised connectors
USD $77.77
Add to Enquiry

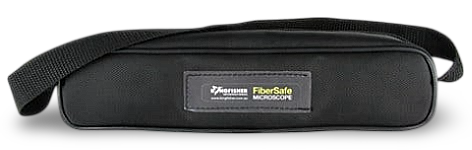

Canvas Pouch for KI6610 Series Microscopes OPT157
Soft pouch with carry straps for KI66xx series microscopes.
USD $41.50
In stock
Add to Enquiry
Wrist Strap / Lanyard for KI Products
(POA)
USB Cable (Micro)
(POA)
Instrument User Manual
(POA)
Quality Assurance Certificate
(POA)
Optional accessories
Video Image Capture Camera OPT684
1.3 Mpixel camera with USB connection. For all models of FiberSafe Microscope. This unit has some very nice software and requires MS Windows to install the drivers.
USD $204.87
In stock
Add to Enquiry

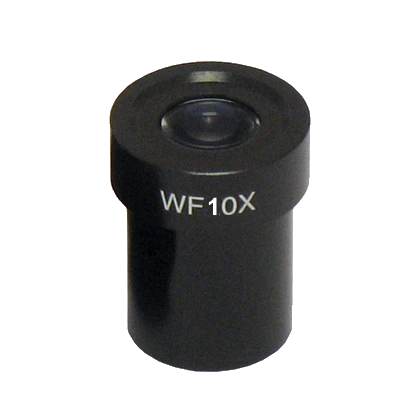

x10 Microscope Eyepiece, OPT690
Optional eyepiece for KI6600 series microscope. Converts KI6610 to x100 magnification, KI6611 to x200 magnification
USD $25.14
In stock
Add to Enquiry
x20 Microscope Eyepiece, OPT691
Optional eyepiece for KI6600 series microscope. Converts KI6608 to x80 magnification
USD $24.61
In stock
Add to Enquiry

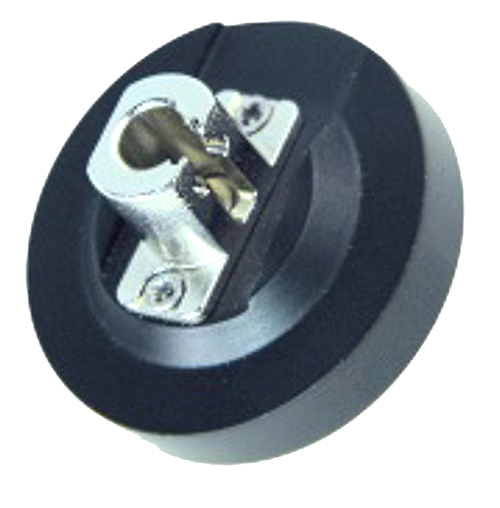

LC/APC Adaptor for KI66xx Microscope OPT661A
LC APC
USD $224.19
In stock
Add to Enquiry
SC/APC Adaptor for KI66xx Microscope OPT662A
SC APC
USD $178.94
In stock
Add to Enquiry

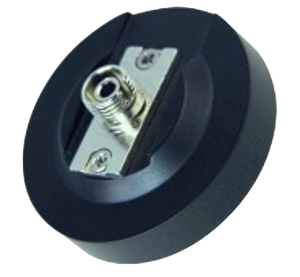

FC/APC Adaptor for KI66xx Microscope OPT663A
FC APC
USD $179.72
Add to Enquiry
2.5 mm Universal Adaptor for KI66xx Microscope OPT681
Universal 2.5 mm, PC, Simplex / Duplex, and terminus for ruggedised connectors
USD $77.77
Add to Enquiry
2.5 mm APC Universal Adaptor for KI66xx Microscope OPT681A
Universal 2.5 mm, APC, Simplex / Duplex, and terminus for ruggedised connectors.
Note: For regular use, a connector specific adapter is preferred to correctly align the angled connector tip
USD $92.99
In stock
Add to Enquiry
1.25 mm Universal Adaptor for KI66xx Microscope OPT682
Universal 1.25 mm PC, Simplex / Duplex and terminus for ruggedised connectors
USD $80.05
In stock
Add to Enquiry
1.25 mm APC Universal for KI66xx Microscope OPT682A
Universal 1.25 mm, APC, Simplex / Duplex and terminus for ruggedised connectors.
Note: For regular use, a connector specific adapter is preferred, to correctly align the angled connector tip.
USD $95.44
In stock
Add to Enquiry
1.6 mm Terminus Adaptor for KI66xx Microscope OPT672
Universal 1.6 mm for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus
USD $275.76
In stock
Add to Enquiry
1.6 mm APC Terminus Adaptor for KI66xx Microscope OPT672A
Universal 1.6 mm (APC) for ARINC 801 Size 18 Terminus, MIL-DTL-38999 Size 16 Terminus
USD $275.74
Add to Enquiry
2 mm Terminus Adaptor for KI66xx Microscope OPT685
Universal 2.0 mm terminus
USD $275.69
In stock
Add to Enquiry
2 mm APC Terminus Adaptor for KI66xx Microscope OPT685A
Universal 2.0 mm (APC) terminus
USD $275.68
Add to Enquiry

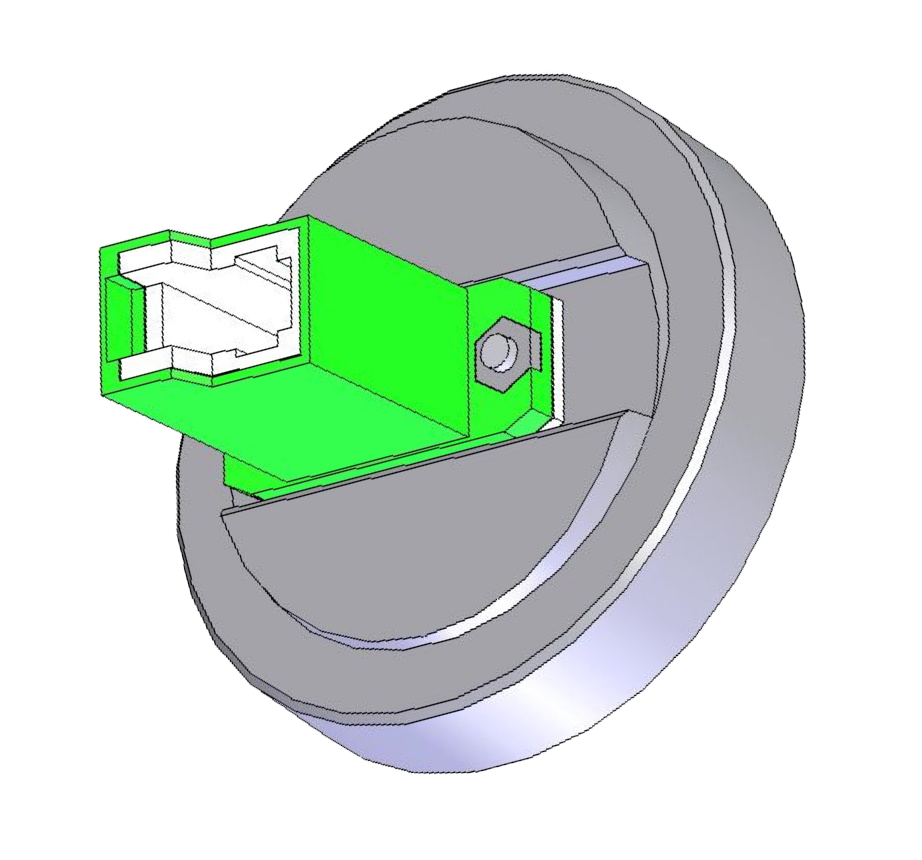

E2000/APC Adaptor for KI66xx Microscope OPT668A
E2000 APC
USD $190.67
In stock
Add to Enquiry
E2000 Adaptor for KI66xx Microscope OPT670
E2000
USD $158.23
In stock
Add to Enquiry
MT Ferrule Adaptor for KI66xx Microscope OPT673
Incorporates traversing knob (not for x400 scope)
USD $310.01
In stock
Add to Enquiry
MT APC Ferrule Adaptor for KI66xx Microscope OPT673A
Incorporates traversing knob (not for x400 scope)
USD $334.62
In stock
Add to Enquiry
MPO 16 32 Adaptor for KI66xx Microscope OPT674
MPO / MTP™ 16 x n style (not for x400 scope) Incorporates traversing knob.
USD $267.76
In stock
Add to Enquiry
MPO 16 32 APC Adaptor for KI66xx Microscope OPT674A
MPO / MTP™ 16 x n style APC (not for x400 scope) Incorporates traversing knob.
USD $293.83
In stock
Add to Enquiry
MPO 12 24 Adaptor for KI66xx Microscope OPT677
MPO / MTP™ 12 x n style (not for x400 scope) Incorporates traversing knob.
USD $265.62
In stock
Add to Enquiry
MPO 12 24 APC Adaptor for KI66xx Microscope OPT678
MPO / MTP™ 12 x n style APC (not for x400 scope) Incorporates traversing knob.
USD $290.20
In stock
Add to Enquiry
SMA Adaptor for KI66xx Microscope OPT679
SMA (not for x400 scope)
USD $63.36
In stock
Add to Enquiry
HFBR Adaptor for KI66xx Microscope OPT667
HFBR
USD $265.57
In stock
Add to Enquiry

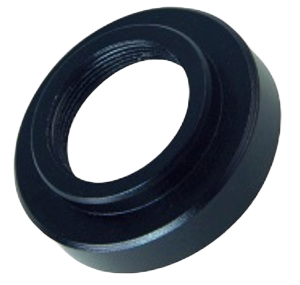

Adaptor Ring for KI66xx Microscope OPT683
Adaptor Ring for JDSU FMA series adaptors, 7/8" 28 TPI
USD $14.26
In stock
Add to Enquiry
More Accessories...
| Part Number | Description + Applications | MSRP * | |
|---|---|---|---|
| KI6610 | 200x, 2.5 mm Univ |
USD $630.21
In stock
|
Add to Enquiry |
| KI6611 | 400x, 2.5 mm Univ |
USD $647.30
In stock
|
Add to Enquiry |
| KI6608 | 40x, 2.5 mm Univ |
USD $795.01
|
Add to Enquiry |
*
This product is designed, made, and calibrated in Australia.
