Overview

An in-line PON meter is used during 10G FTTH / PON service turn-up or maintenance, to perform a live test with the OLT equipment.

  • Easy to use, compact, rugged & economical true PON meter
  • Fast reading and settling time
  • Sunlight readable backlit display
  • Pass / fail display
  • 1270 & 1310 nm upstream, 1490 & 1577 nm downstream
  • 10 hr from builtin Lithium battery & auto off
  • 100 test memory & real time clock
  • PC software for downloading results & setting pass / fail
  • 1 year warranty, 3 year calibration cycle
  • Full QA report with ISO9001 compliant calibration

Note: This instrument is designed to test PON transmission power. Alternatively, for loss testing use, it requires a non-standard KI2000 series test source with specific CWDM compliant lasers.

Specifications

General KI 6106 10G/XG PON Power Meter specifications
Detector type InGaAs

Passband Upstream: 1270 nm (FWHM: 1260~1280) & 1310 nm (FWHM: 1290~1330), Downstream: 1490 nm (FWHM: 1470~1505) & 1577 nm (FWHM: 1570 ~1585)

Power range -30 ~ 10 dBm (@ 1270 & 1310 nm) / -45 ~ 10 dBm (@ 1490 & 1577 nm)

Damage level > 10 dBm

Isolation between wavelengths Up to 40 dB

Uncertainty 0.5 dB (max)

Linearity 0.1 dB

Polarization loss < 0.25 dB

Insertion Loss < 1.5 dB

Return loss 50 dB

Display size 44 mm x 57 mm

Show results dBm / W / dB, pass / fail

Display resolution 0.01 dB

Auto off Selectable

Memory 99 records of 4 wavelengths test

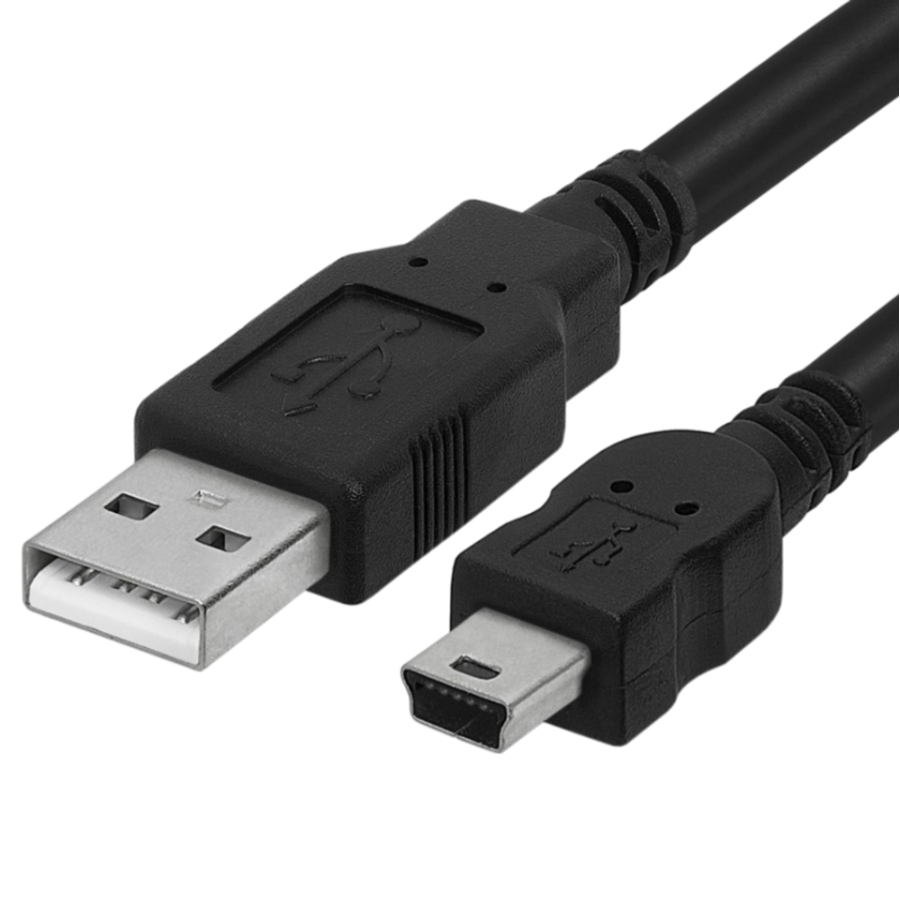

Data software via USB-mini

Battery 4x AA (LR6) Alkaline

Battery life 18 hours

Operating / storage temperature 10 ~ 50 °C / -25 ~ 70 °C

Relative humidity 95%

Unit size 200 mm x 90 mm x 43 mm

Unit weight 0.4 kg

Shipment weight 1 kg

Calibration validity 3 years

Warranty 1 year


Documentation & Support

Applications

In the box

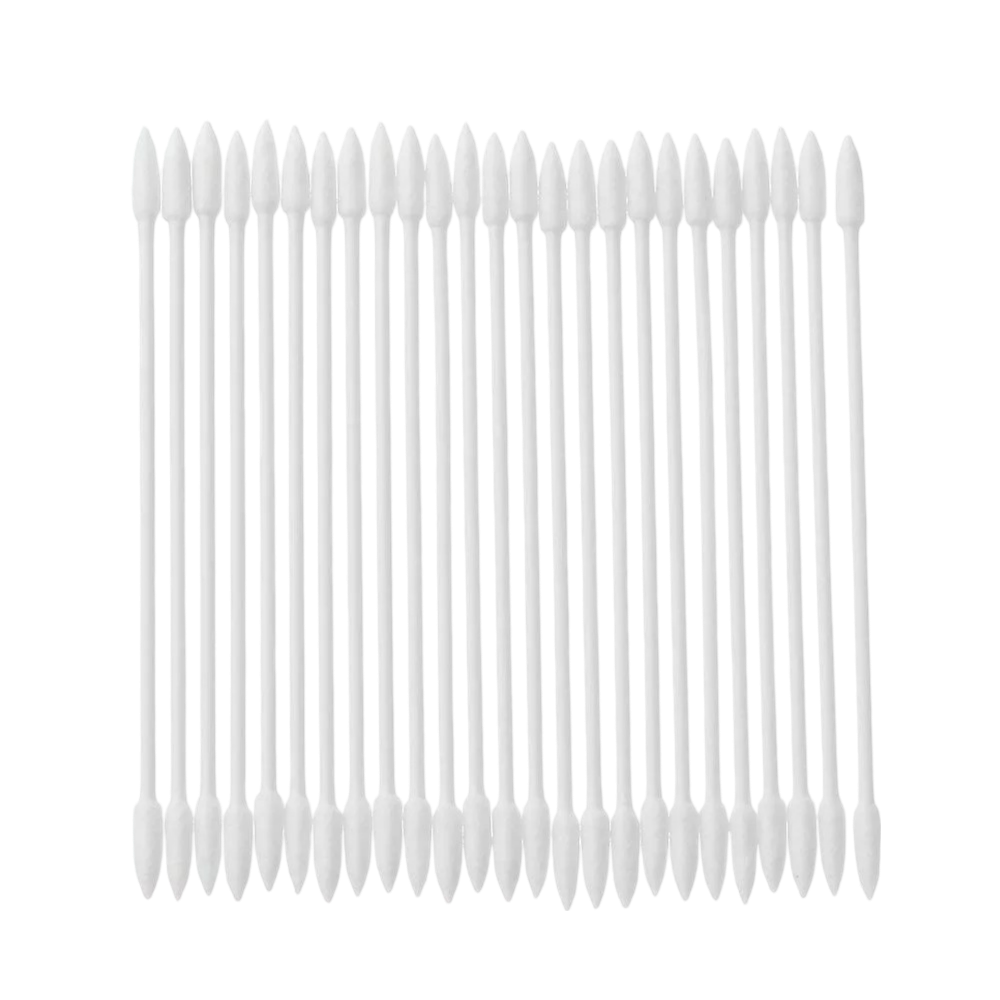

Cleaning Stick Pack

Cleaning Stick Pack 2.5 mm

Quantity: 1 pk

(POA)

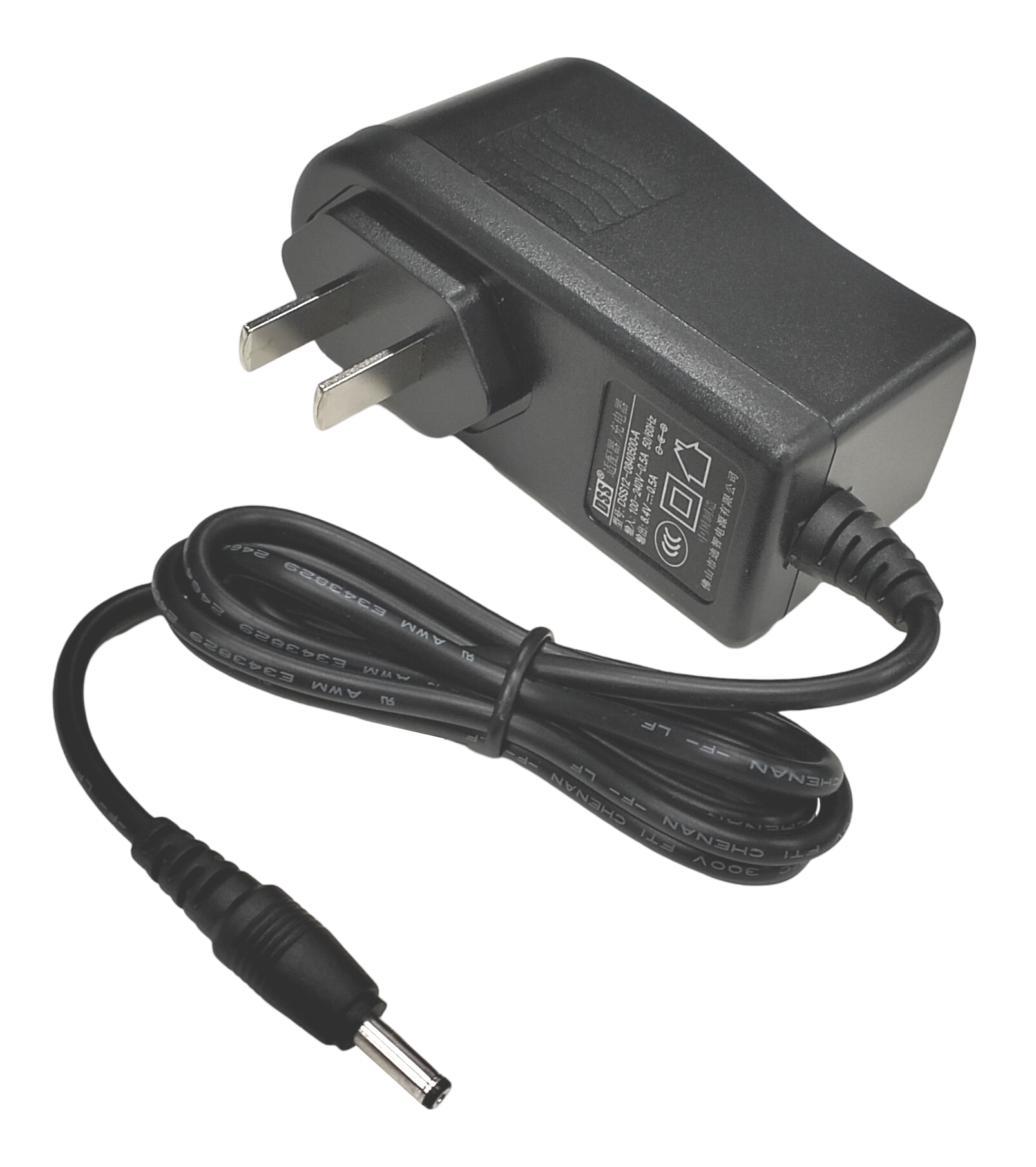

Charger (XGPON Meter)

Charger for XGPON power meter

Charger is with US style AC plug. Adaptors for other plug styles are available for order.

(POA)

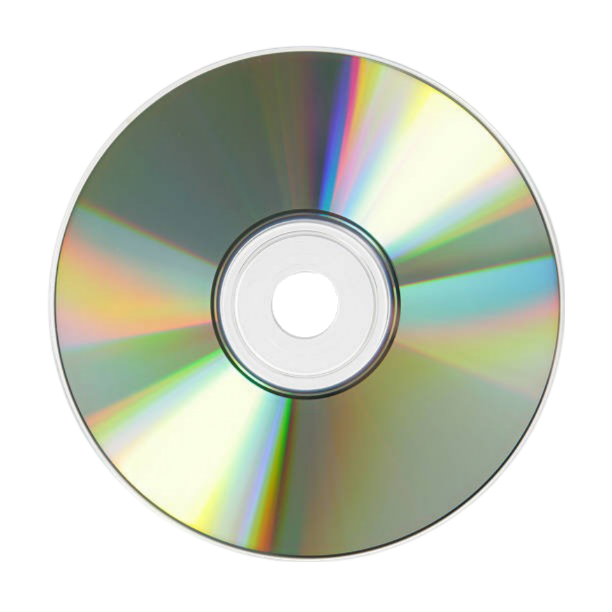

CD

Compact Disk CD

CD content: Management software & user manual

(POA)
