Overview

Introducing a NEW family of hand-held fiber optic test attenuator instruments commonly used for testing optical system margin and device linearity. Precision specifications, high productivity and remote control capability make these variable optical attenuators genuine laboratory grade instruments. An additional typical application is as a temporary passive adjustable attenuator pad in a transmission system.

SM (MM & POF versions to be introduced)
Additional full-function optical power meter
Easy to use, accurate & productive
Excellent linearity & absolute accuracy
ISO/IEC 17025 traceable calibration
Power handling to >+30 dBm / 1 Watt
Broadband, flat λ response
Low minimum insertion loss
Excellent ORL & PMD characteristics
Interchangeable connectors
Remote control (Labwindows) software
Modbus remote control protocol
Attenuation not affected by power on/off
Very long battery life

Part Number Details

Products

Part Number

Description

Suited for

Not sure? Make a general enquiry.

Key Features

Interchangeable connector adaptors

Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.

ILAC/NATA ISO/IEC 17025 Traceable Optical Calibration

Internationally recognised traceable optical calibration to ISO/IEC 17025

Genuine 3 year calibration validity

Genuine 3 Year optical power meter re-calibration validity

Runs on Alkaline Batteries

Metal-free connectors

To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.

Test tone with multi-fiber ID Feature

Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.

Real-time reporting software

Excel-based instrument connectivity for comprehensive reporting (against standards) and real-time data logging.

USB Flash Drive data export with data assurance

High capacity internal memory, easy & secure text export, with Excel-based report generation software included.

Specifications

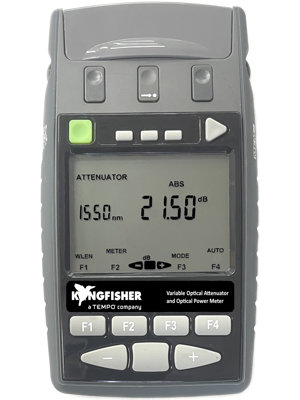

General Variable Optical Attenuator & Power Meter KI 2000 Series specifications

For more detailed specifications, please select a specific part number from the parts & stock section.

Interface	USB-C

Power	Battery / external power via USB-C. Jumper selectable charging

Battery types	2x AA (LR6) alkaline / 2x AA NiMH AA (rechargeable via USB-C)

Battery life	Up to 1000 hours

Auto off	User selectable

OPM resolution	0.01 dB

OPM calibration accuracy	±1 % (0.06 dB)

OPM tone detection	150 ~ 9999 Hz ± 1 %

OPM polarization sensitivity	< 0.05 dB (typical)

OPM memory	1000 (4-λ tests) / unlimited on USB flash drive

Operating / storage temperature	-15 to 55 °C / -25 to 70 °C

Relative humidity	0 ~ 95 %

Case	Polycarbonate, 1-meter drop tested, with captive caps

IP rating	IP52

Size	124 x 81 x 25 mm

Unit weight	0.45 kg

Calibration validity (ISO/IEC 17025)	3 years

Warranty	3 years

Documentation & Support

KI 2000 Features & Demos - Playlist

System margin & bit error rate More application notes...

In the box

SC/SC Through Connector OPT046

SC-SC, Tough metal body, precision ceramic sleeve

LC Hybrid Connector Adapter OPT076

LC-SC Simplex. Tough metal body, precision ceramic sleeve

Wrist Strap / Lanyard

Handy lanyard & matching instrument attachment point

Quick Reference Guide QRG

Handy quick reference guide, some in multiple languages

Instrument User Manual

Comprehensive user manual, in well written English

Quality Assurance Certificate

Traceable Calibration Certificate ILAC/NATA Compliant

IEC/ISO 17025 compliant calibration certificate

Padded Canvas Carry Pouch OPT149

Soft pouch for two KI2000 series instruments. With carry straps and compartments for accessories storage.

Optional accessories

Fiber Connector Cleaner Cartridge TOOL CLEAN-09A

To clean a connector end face / tip, prior to connector insertion into a mating adaptor.

Stick-Type Cleaner 2.5 mm TOOL CLEAN-03

To clean the end face and mating sleeve of a fiber optic connector with 2.5 mm diameter ferrule. SC, FC, ST etc.

Stick-type Cleaner 1.25 mm TOOL CLEAN-04

To clean the end face and mating sleeve of a fiber optic connector with 1.25 mm diameter ferrule, LC, SN etc

Semi-Rigid Carry Case for Test Kits OPT153-CASE

Semi-rigid canvas test kit case for two KI2000 or KI7000 series instruments, and three KI9000 series instruments. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Semi-Rigid Carry Case for Test Kits OPT154B

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With cleaning materials, carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.

Carry Case-only for Test Kits OPT154B-CASE

Semi-rigid canvas test kit case for two KI2000 series instruments, three KI900 series instruments, optical microscope & VFL pen. With carry straps and compartments for accessories storage. Moulded interior provides a perfect combination of durability, protection, and comfortable use.
