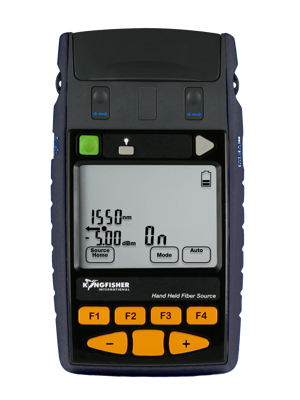

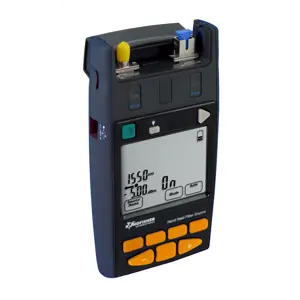

Triple Optical Laser Light Source + VFL KI28610-APC
The KI 28610-APC Triple Laser Source is a general purpose test source for single mode systems with APC connectors at 1310-1550-1625 nm. Typical applications include fiber optic attenuation measurement, polarity testing and fiber identification on critical systems. This unit has a 650 nm VFL Visitester, which mixes a VFL in with the test source during Autotest. In addition to operating as a typical VFL, it gives positive visual identification of a fiber to be connected to a power meter for loss testing.
- Easy to use, rugged & versatile
- Long battery life, micro USB power/charger
- Interchangeable connectors with dust cap & tilt bail
- Superior re-connection repeatability, < 0.1 dB
- Excellent stability
- Autotest & Multi-Fiber ID Tone generator
- Full QA & test reports ISO 17025 traceable
Use a single tester for: SC, LC, MPO, FC, HFBR, & other connectors - including universal & duplex options.
Smart communication makes sure you always get a full, complete, and consistent test result.
Test tone with multi-fiber ID
Send & identify one of 12 unique test tones. Great for quickly verifying continuity, polarity and rack labelling.
Integrates a VFL into AutoTest, so the fiber end you need to test flashes red. Confidence with a quick & easy visual cue.
Zero warm-up laser (KI2300, KI2400, KI23400 only)
Instant high-accuracy testing. Unlike other sources, Zero Warm-Up sources are in-spec & stabilized in seconds.
Legendary source stability
In real-world field conditions, Kingfisher's stable and accurate sources outshine the competition.
To avoid metal dust fragments damaging your tester and fiber-ends, we use high-end metal-free connectors.
Multimode test standard compliance
Kingfisher LED sources meet Encircled Flux and CPR requirements straight out of the box.
|Output wavelength||Port 1: 1310, 1550, 1625 nm Laser APC; 650 nm VisiTester|
|Output power||-7 dBm ±1 dB (@ 9/125 µm for 1310, 1550, 1625 m) / +2 dBm ±1 dB (@ 9/125 µm for 650 nm)|
|Adjust output power||Adjustable over 7 dB in 0.01 dB steps|
|Short term stability (for 15 min, typical ±2 °C, after warm up, ORL < -25 dB)||0.04 dB (for 1310, 1550 nm) / 0.06 dB (for 850, 1300 nm)|
|Stability over temperature||0.6dB (typical)|
|Wavelength initial tolerance (@ 25 °C)||20 nm (for 1310, 1550, 1625 nm) / 5 nm (for 650 nm)|
|Spectrum width (FWHM)||3 nm (typical)|
|Wavelength drift||0.4 nm per °C (typical for 1310, 1550, 1625 nm) / 0.1 nm per °C (typical for 650 nm)|
|Reconnection repeatability (95% confidence)||0.1 dB|
General KI 2400 & 2800 Handheld Source specifications
|Calibration validity (ISO17025)||3 years|
|Modulated output||270 Hz, 1 kHz, 2 kHz ± 2 %, 12 Multi-Fiber ID tones|
|Autotest (not available for 470, 540 nm LED sources)||Compatible with Kingfisher's 1-way Loss Test Sets & Power Meters (except KI9600, KI23400, KI27400 series)|
|Power||Battery / External power via USB|
|Battery types||2x AA (LR6) Alkaline / 2x AA NiMH AA (rechargeable via USB)|
|Battery life||Laser/LED source: 90/80 hours in Autotest, typical|
|Case||Polycarbonate (body) / rubber (edges & corners), moisture resistance, 1-meter drop tested|
|Size||190 mm x 105 mm x 35 mm|
|Unit weight||0.42 kg|
|Shipping weight||1.5 Kg|
|Operating / storage temperature||-15 to 55 °C / -25 to 70 °C|
|Relative humidity||0 ~ 95 %|
In the box
SC Through Connector OPT046
Canvas Pouch for KI2000 Series Instruments OPT149
Wrist Strap / Lanyard for KI Products
USB Cable (Micro)
Instrument User Manual
Quality Assurance Certificate
Calibration Certificate ILAC/NATA Compliant
Semi-Rigid Carry Case for Test Kits OPT153-CASE
Semi-Rigid Carry Case for Test Kits OPT154B
Hybrid LC Connector Adaptor OPT076
Hybrid FC Connector Adaptor OPT051
Hybrid Universal 2.5 mm Connector Adaptor OPT081
Hybrid Universal 1.25 mm Connector Adaptor OPT084
Hybrid Universal 1.25 mm Connector Adaptor OPT085
Hybrid LC / F3000 Connector Adaptor OPT072
Hybrid POF Multi-Connector Adaptor OPT077
Hybrid HFBR Connector Adaptor OPT078
