Overview

Th is full function fiber inspection scope is a fully automated tool to check and analyze fiber optic connector end faces for dirt, condition, and quality as per IEC61300-3-35 requirements. Images are auto centered/focused and can be viewed directly on an integrated LCD display. Fiber inspector pass/fail analysis starts and, with its data & report saved automatically with just a push of button. The data & report saved in SD card on the device can later be downloaded onto PC via USB or Wi-Fi. Easy operation, robust construction and quality optics ensures that this equipment will enhance the performance of installation and maintenance staff.

  • Fully automated tester with pass/fail analysis
  • IEC61300-3-35 compliant pass/fail analysis
  • Auto generated analysis image, data & reports
  • Integrated 3.2” LCD touch screen with auto brightness control
  • Good image quality with auto centering/focusing
  • Adjustable in 2 styles
  • Captive dust/protective cap
  • LED analysis status indicators
  • Long operation Snap-on Li-ion battery, rechargeable via USB-C cable
  • Quick-change adaptors for male/female connectors LC, LC/APC, SC, SC/APC, FC, FC/APC, ST, universal 1.25 & 2.5 mm. Also MPO/MTP SM & MM
  • Auto pass/fail analysis for MPO/MTP12 when fitted with adaptor, OPT636
  • Quick-change adaptors for many connector styles including MPO12
  • LED torch for work in low light conditions
  • Handy storage case for inspection adaptors
  • Simplex and duplex connectors
  • Imaging apps for Window devices via WiFi
  • 1 year warranty

Key Features

Specifications

General Integrated Inspection Probe AutoGet WiFi specifications
Magnification 5x (non MPO12) / 8.72x (MPO12)

Resolving power < 1 µm

Field of View 250x250 um (@ non-MPO12 analysis mode) / 220x220 um (@MPO12 analysis mode)

Focus method Auto (in pass/fail analysis mode) / Manual (in preview mode)

Fully automated Pass/fail analysis IEC61300-3-35 compliant

Communication interface WiFi802.11 / USB2.0

Memory storage 16G SD card (supplied)

Software Pass/fail analysis and data download (Win7 and above)

Display 480x800 3.2”LCD touch screen with auto brightness control

Features LED torch, captive dust cap, LED standby/pass/fail indicator, 2-style adjustable, selectable auto-off (disabled, 10, 20, 30 minutes)

Power Snap-On Li-ion battery rechargeable via USB, 4hrs charging time (@ 0.2A from 0 charge), 9 hours operating time

Size 341x67x57 mm / 281x201x57 mm (when in L-shape style)

Unit weight 570 g (including battery)

Operating / storage temperature -5 to +40 °C / -20 to +55 °C

Relative humidity 90%

Shipping weight 1.7 kg

Warranty 1 year


Documentation & Support

Applications

In the box

Adaptors (Inspection Probes)

Adaptors for Inspection Probe

5x inspection probe adaptors: 1.25mm Male, 2.5mm Male, LC Female, SC Female, FC Female

(POA)

Adaptor Storage Case

Adaptor Storage Case for Inspection Probes

Adaptor storage case for inspection probes

(POA)

Charger (USB)

Mains voltage - USB power charger

USB charger with interchangeable AC plugs (US, UK, EU, AU styles)

(POA)

Touch Pen

Touch Pen

(POA)

WiFi Module

WiFi module

(POA)

USB Cable (C)

USB C cable

(POA)

Software (AutoGet WiFi on Window)

Windows Software (AutoGet WiFi video microscope

Downloadable free from www.kingfiserfiber.com

(POA)

Optional accessories

OPT630A

1.25mm APC Male Connector Adapter, Video Scope OPT630A

For LC/APC male connectors and other 1.25mm ferrule & APC polish tip

USD $115.05

Add to Cart
OPT632A

LC APC Female Connecter Adaptor, Video Scope OPT632A

For inside an LC bulkhead female adapter, to inspect an LC/APC polish tip.

USD $280.05

Add to Cart
OPT631A

2.5mm APC Male Connector Adapter, Video Scope OPT631A

For SC/APC, FC/APC, E2000/APC, ST/APC, LSA/APC male connectors, and other 2.5 mm ferrule & APC polish tip

USD $115.05

Add to Cart
OPT633A

SC APC Female Connector Adapter, Video Scope OPT633A

For inside an SC bulkhead female adapter to inspect an SC/APC polish tip

USD $133.39

Add to Cart
OPT634A

FC APC Female Connector Adapter, Video Scope OPT634A

For inside an FC bulkhead female adapter, to inspect an FC/APC polish tip

USD $133.39

Add to Cart
OPT636

MPO PC/APC Connector Adapter, Video Scope OPT636

For MPO & MPO-APC connectors and Dimension AutoGetWiFi, to do auto pass/fail analysis. To inspect both a male connector tip, and to fit inside a female bulkhead adapter.

USD $1973.18

Add to Cart
OPT639

Optitap Connector Adapter, Video Scope OPT639

For Optitap with SC/APC connector

USD $201.33

Add to Cart
OPT640

USD $129.59

Add to Cart
OPT641

USD $154.46

Add to Cart
OPT642

USD $104.59

Add to Cart
OPT643

USD $287.92

Add to Cart
OPT637

USD $496.64

Add to Cart
OPT638

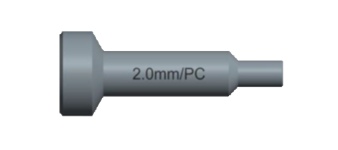

2 mm Male Connector Adaptor, Video Scope OPT638

For 2.0 mm ferrule / terminus

USD $201.33

Add to Cart
