Overview

The KI 2600XL-Ge7 Handheld Power Meter is used by professional installers and contractors, to test power, loss, continuity and faults on plastic fiber, multimode + single mode fiber optic systems with MPO 16/32 and other connectors, and free-space beams. This full-feature instrument has comprehensive report generation capabilities and a variety of useful features for maximum productivity and flexibility.

  • Easy to use, rugged & versatile
  • Specifically optimised for MPO 16/32 connectors
  • 32 calibration λ, 1% accuracy ISO 17025 traceable
  • Improved high power accuracy
  • Autotest with up to 3 λ displayed
  • Long battery life & micro USB external power
  • Large back-lit LCD, sunlight readable
  • Interchangeable connectors
  • Large memory with text naming & time stamp
  • KITS™ reporting software with data security
  • One button memory dump to USB key
  • MultiFiber ID tone detection
  • Full QA & linearity test report

*EAR99 restricted product



Key Features

Specifications

KI2600XL-GE7 specifications
Detector type Ge (7 x 3.5 mm)

Response wavelength 600 ~ 1650 nm

Calibration wavelengths 635, 650, 660, 780, 820, 850, 880, 910, 940, 980, 1270, 1290, 1300, 1310, 1330, 1350, 1370, 1390, 1410, 1430, 1450, 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610, 1625, 1650 nm

Power range +15 ~-30 dBm (for 635 ~ 820 nm, 1590 ~ 1650 nm) / +15 ~ -40 dBm (for 850 ~ 1570 nm)

Mid-range linearity 0.06 dB (typical)

Total uncertainty 0.5 dB (max)

Wavelength sensitivity (± 30 nm) 0.03 dB (typical)

Response uniformity across detector 2 % (0.09 dB)

ID tone detection & Autotest sensitivity -30 dBm

General KI 2600 Handheld Power Meter specifications
Accuracy 1 % (0.06 dB)

Calibration validity 3 years (ISO17025)

Resolution 0.01 dB

Polarization sensitivity < 0.05 dB (typical)

Tone detection 150 ~ 9999 Hz ± 1 %

Power 2x AA (LR6) Alkaline / External via USB

Battery life Up to 1000 hours

Auto-off Selectable

USB interfaces USB-micro for power & software / USB-A for memory key

Software KITS (free download)

Memory 1000 (4-λ tests) / Unlimited on USB memory key

Size 124 x 81 x 25 mm

Unit weight 150 gm

Shipping weight 1.1 kg

Operating / storage temperatures -15 to 55 °C / -25 to 70 °C

Relative humidity 0 ~ 95 %

Warranty 3 years


Documentation & Support

Applications

In the box

OPT149

Canvas Pouch for KI2000 Series Instruments OPT149

Canvas case with compartment for accessories storage, able to carry 2x KI2000 series instruments.

Software (KITS)

Software (KITS)

Downloadable from Kingfisher's website for free.

(POA)

Optional accessories

OPT226A

LC Connector Adaptor - XL Power Meter, OPT226A

LC Simplex. For duplex LC use OPT224

USD $136.40

Add to Cart

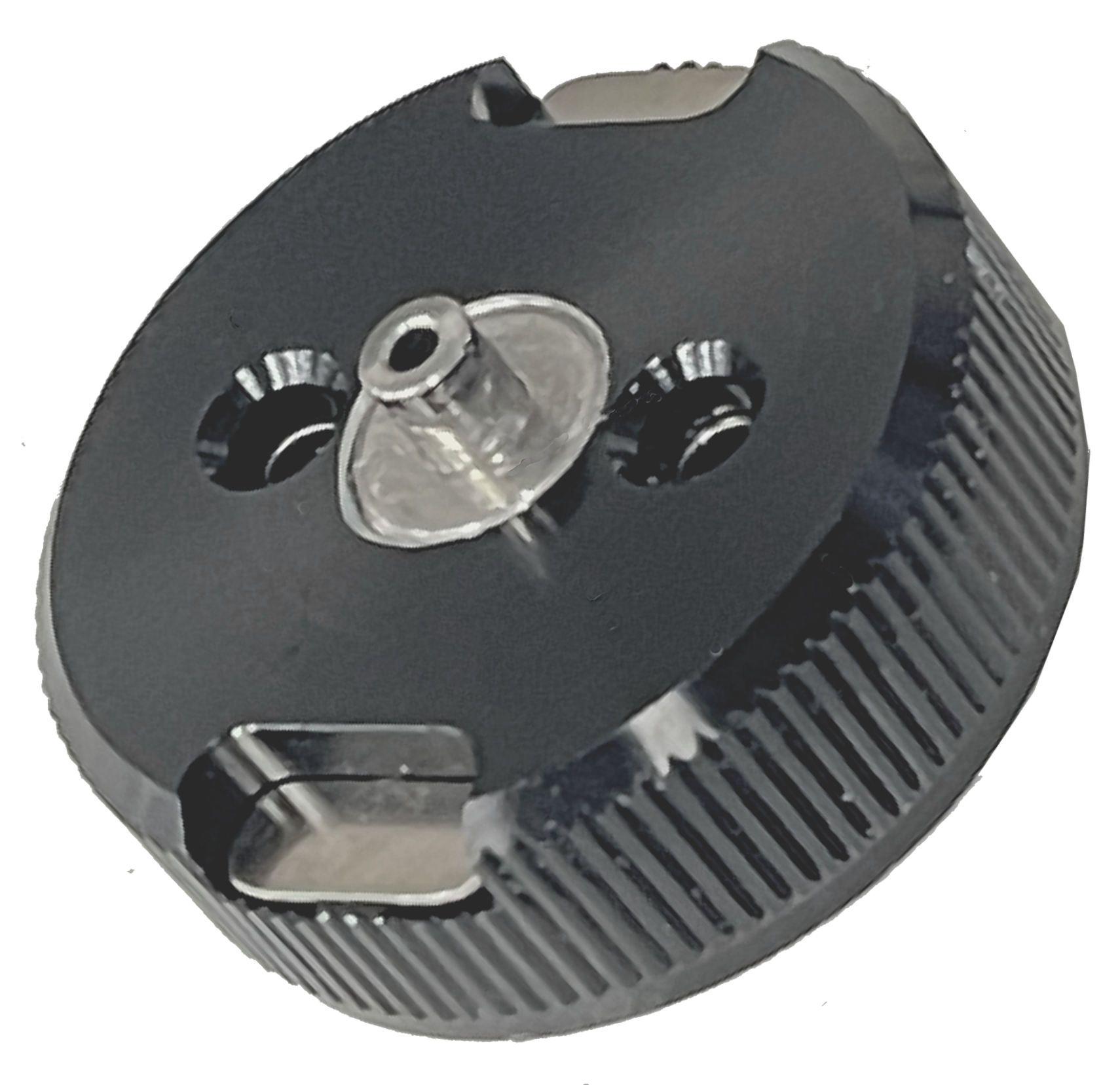

OPT224

1.25 mm Universal Connector Adaptor - XL Power Meter, OPT224

1.25 mm Universal. Also fits duplex LC

USD $48.77

Add to Cart

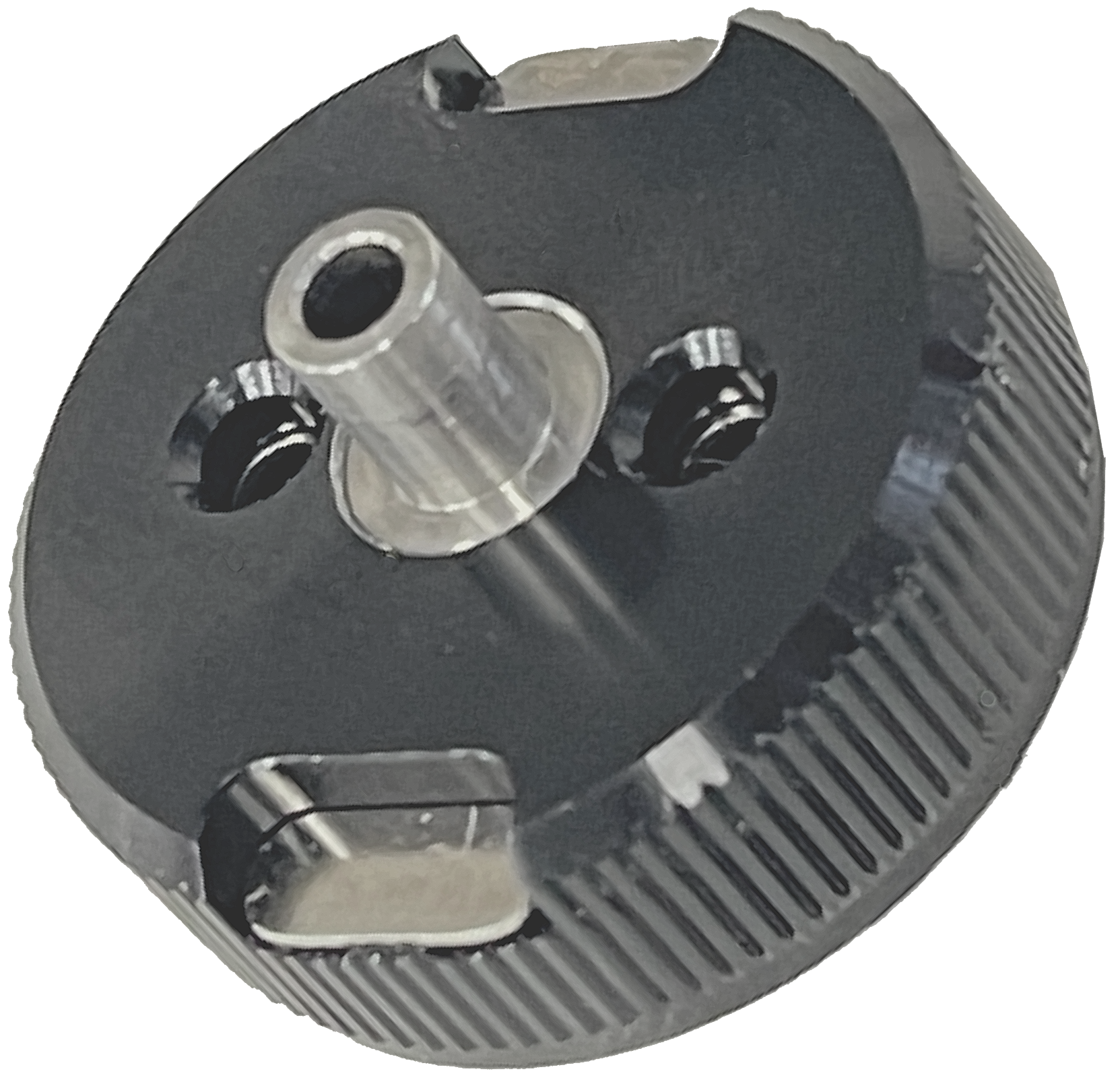

OPT225

2.5 mm Universal Connector Adaptor - XL Power Meter, OPT225

2.5 mm Universal. Also fits duplex SC

USD $47.79

Add to Cart

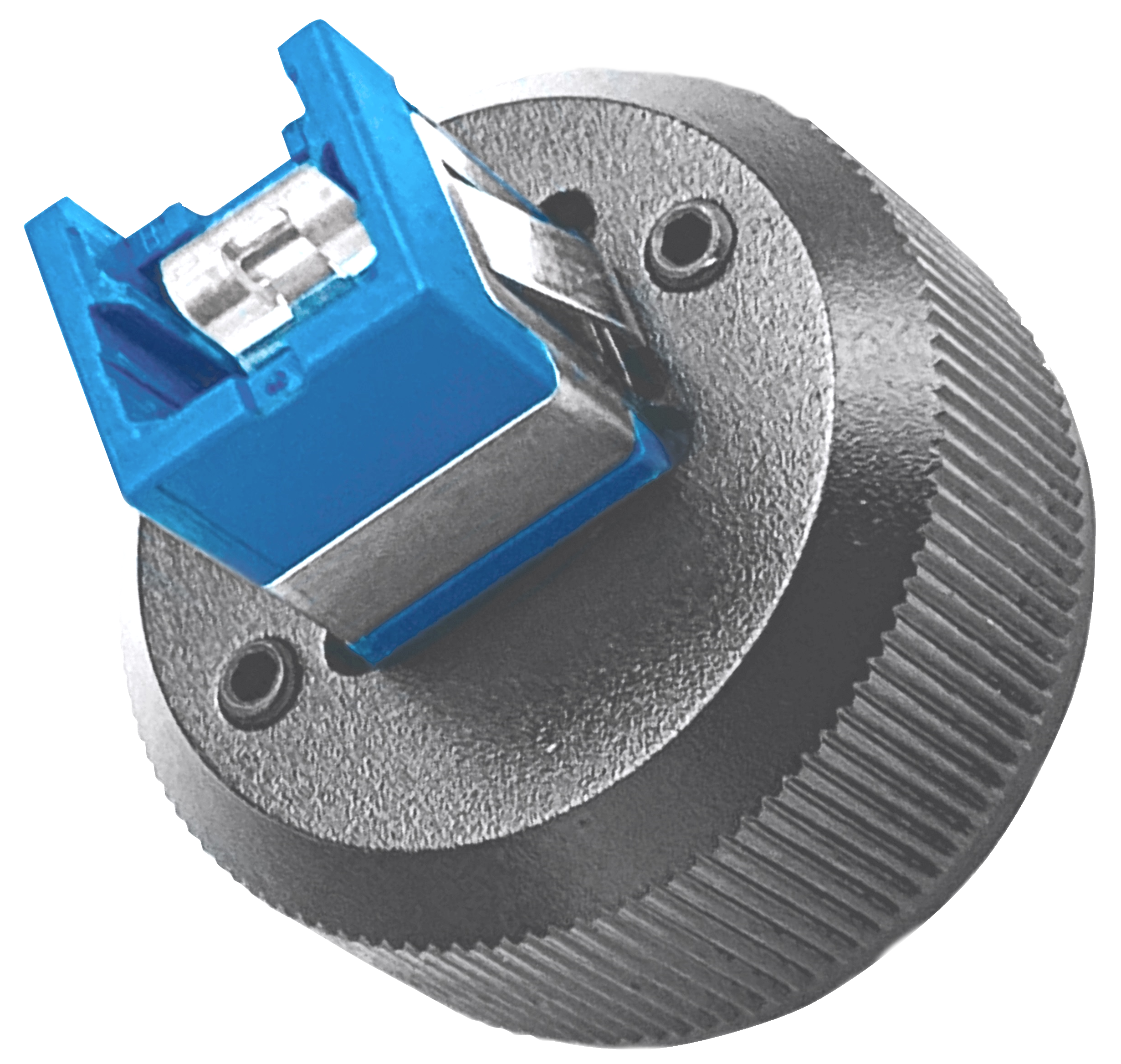

OPT200

Senko CS Connector Adaptor - XL Power Meter, OPT200

Duplex adapter. For optical power meters fitted with XL-Ge7 detector

USD $302.44

Add to Cart
OPT227

MPO Connector Adaptor - XL Power Meter, OPT227

MTP™ / MPO 12 x n style with central key. For XL power meters with a 5 or 7 mm detector For both MM & SM fiber.

USD $156.05

Add to Cart
OPT228

MPO Connector Adaptor - XL Power Meter, OPT228

MTP™ / MPO 16 x n style with offset key. For XL power meters with 7 mm detector only. For both MM & SM fiber.

USD $303.92

Add to Cart
OPT232

MT Ferrule Adaptor - XL Power Meter, OPT232

MT ferrule can be pushed in or pulled out of the rubber insert

USD $246.99

Add to Cart
OPT201-POF

USD $108.04

Add to Cart
OPT203

SMA POF Connector Adaptor - XL Power Meter, OPT203

SMA for POF with large pin-hole

USD $20.67

Add to Cart
OPT202-POF

USD $109.94

Add to Cart
OPT204-POF

USD $99.12

Add to Cart
OPT229

POF-Multi Connector Adaptor - XL Power Meter, OPT229

HFBR simplex and duplex, Mini Toslink, bare POF cable,, 2.5mm. Multi-Purpose POF Adapter for power meters. Turn the turret to the required hole size: 3.85, 3.5, 3.2, 2.55, 2.4, 2.3 mm, x 8.5 mm deep. For SMA connectors, use OPT203.

USD $205.97

Add to Cart
OPT231

HFBR POF Connector Adaptor - XL Power Meter, OPT231

For simplex / duplex / latching / non-latching POF HFBR, Versatile Link, Redlink connectors.

USD $111.47

Add to Cart
